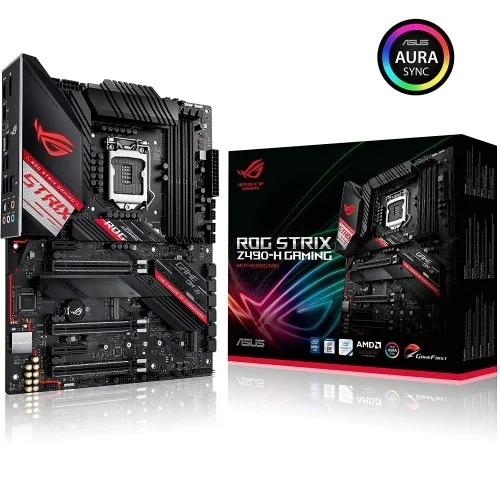

Asus ROG STRIX Z490-H GAMING Intel 10th Gen ATX Motherboard

Discontinued

Asus ROG STRIX Z490-H GAMING Intel 10th Gen ATX Motherboard

Stock: Discontinued
Model: Asus ROG STRIX Z490-H GAMING
Product id: 18342

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• LGA 1200 socket for 10th-gen Intel Core Desktop Processors • Intelligent Control • Best Gaming Connectivity • High-performance Networking

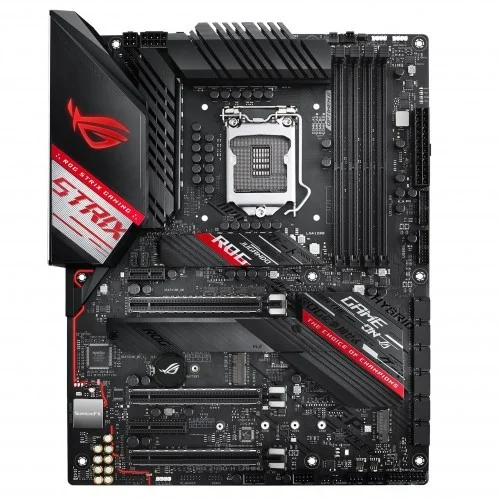

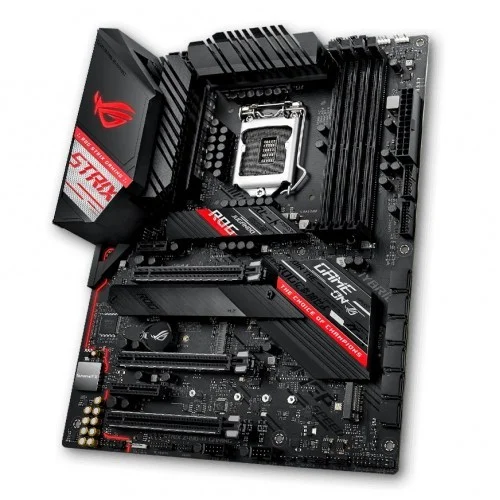

Asus ROG STRIX Z490-H GAMING Intel 10th Gen ATX Motherboard

ROG Strix Z490-H Gaming motherboard dons the classic red-and-black color scheme, and pairs it with futuristic cybertext for a new look. This ATX gaming motherboard is packed with all the essentials, including the latest connectivity and intuitive ROG software. Striking aesthetics and cutting-edge innovations make ROG Strix Z490-H Gaming ideal for gamers of all levels. ROG Strix Z490-H Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls let you manage to overclock, cooling, and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance.

Specification:

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z490
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	Intel 10th Gen Processors 3 x PCIe 3.0 x16 (x16 or x8+x4+x4) Intel Z490 Chipset 1 x PCIe 3.0 x4 (max at x2 mode) 1 x PCIe 3.0 x1
M.2 Socket	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DDR4 DIMM
Supported Memory	4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory OptiMem II
Maximum Mamory	128 GB
Graphics
Graphics	Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI 1.4b
Display Port (s)	1 x DisplayPort 1.4

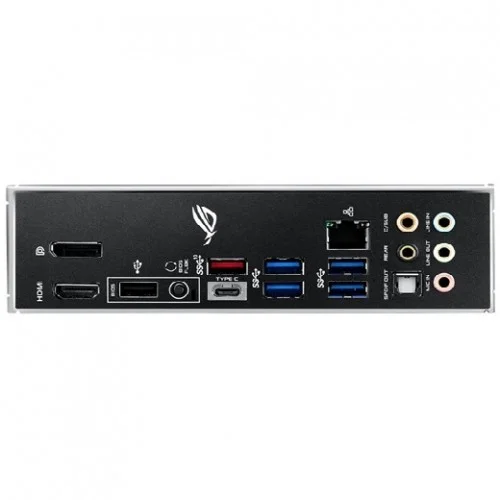

USB (s)	Rear USB Port ( Total 7 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A + USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 1 x USB 2.0 port(s) Front USB Port ( Total 8 ) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF in port(s) at back panel - LED-lit Audio Shielding - Premium Japanese audio capacitors - Audio Cover
Internal I/O Ports	1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x VRM_HS_FAN Header
Warranty Information
Manufacturing Warranty	03 Years
