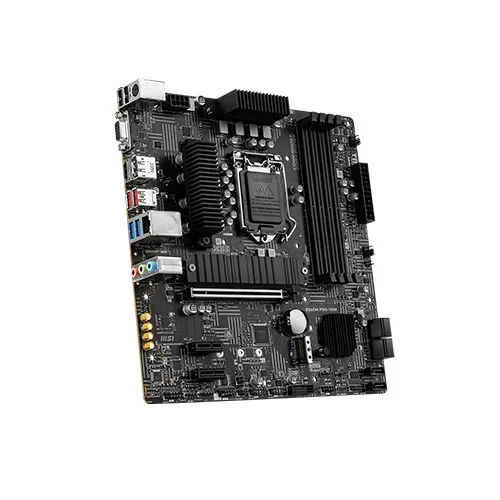

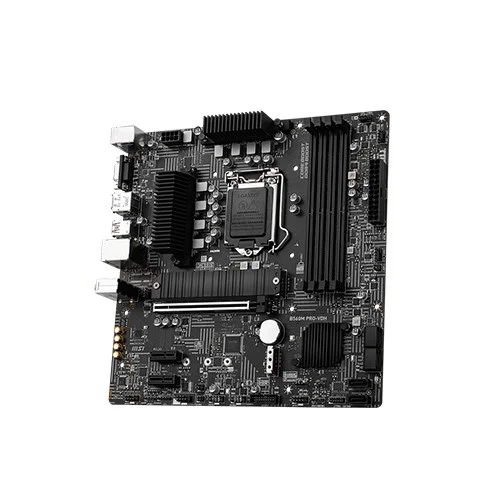

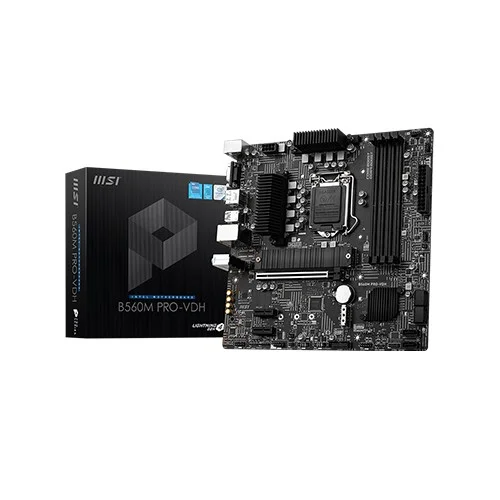

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard

Out Of Stock

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard

Stock: Out Of Stock
Model: MSI B560M PRO-VDH
Product id: 19629

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 10th and 11th Gen Processors • 4x DDR4 memory slots, support up to 128GB • Realtek AL897 Codec 7.1-Channel High Definition Audio • Miro-ATX Form Factor 9.6 in. x 9.6 in.

Key Features
Form Factor	mATX
Basic Information
Supported CPU	10th Gen, Pentium Gold, Celeron, 11th Gen
Chipset	Intel B560
Memory
Ram Type	DDR4

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard

The MSI B560M PRO-VDH MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the newest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI PRO Series motherboards feature plenty of possibilities for prosumers’ needs. Stable LAN, faster storage and USB transfer speed, and other expandable connectors are able to enlarge your flexibility. Mystic Light Extension pin header provides an intuitive thanks to controlling additional RGB strips and other RGB peripherals added to a system, without having a separate RGB controller.

Optimized Cooling

MSI B560M PRO VDH Motherboard Part of the motherboards heatsink design, M.2 SHIELD FROZR is that the next generation M.2 thermal solution to avoid this by offering the simplest thermal protection to form sure that SSD maintains maximum performance. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a correct value by adopting MSI AI ENGINE. MSI B560M PRO VDH Motherboard Total Fan Control allows you to check your primary system characteristics during a simplified graphical interface. You can also found out 4 temperature targets for the CPU and motherboard, which can adjust the fan speeds automatically. MSI B560M PRO VDH Motherboard Designed to support the foremost popular All-In-One & customized water cooling solutions on the market. a fanatical pump PIN header supports up to 2 amp, supplying you with full control of the pump speed.

Performance

MSI OC LAB doesn’t merely exert extreme overclocking. Compare to the B460 motherboard memory XMP profile, MSI B560M PRO VDH Motherboard does have great improvement in performance and efficiency for B560. Easy to enable XMP profile with auto power settings to urge the simplest memory speed and stability.

Armor Design

MSI B560M PRO VDH Motherboards support all the newest storage standards, which allows users to attach any ultra-fast memory device. Higher efficiency makes your work easier. Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature the latest Lightning Gen 4 M.2 which is that the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. MSI B560M PRO VDH Motherboard PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane storage device.

Audio Boost

MSI B560M PRO VDH Motherboard Make sure you enjoy the purest sound quality in both stereo and surround sound. A hi-fi sound experience with exceptional acoustics and realism for studio-level headphones is ensured, because of top-quality audio capacitors. Using MSI B560M PRO VDH Motherboard separated layers within the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds once you plug/unplug devices or turn your PC on/off.

Specifications:

Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA 1200
Chipset	Intel B560 chipset
Memory	4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12 1x VGA port supports the maximum resolutions of 2048×1536 @50Hz, 2048×1280 @60Hz, and 1920×1200 @60H
Slots	1x PCIe x16 slot (From CPU) PCI_E1 (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots (From B560 chipset)
Supported Storage	6x SATA 6Gb/s ports (From B560 chipset) 2x M.2 slot (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot2 (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
LAN	Realtek 8125B 2.5Gbps LAN controller
Audio	Realtek AL897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector

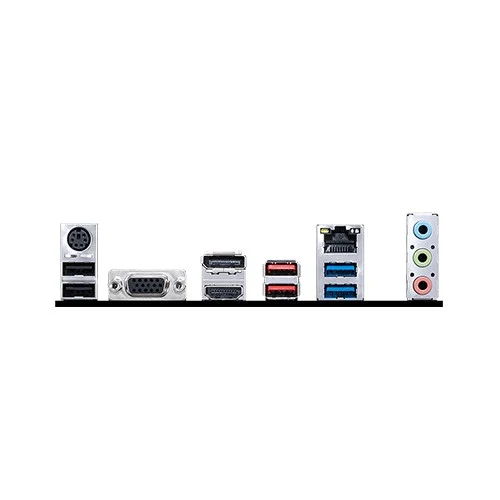

External I/O Ports	Keyboard / Mouse VGA DisplayPort USB 3.2 Gen 2 10Gbps Type-A LAN port Audio connector USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A
Form Factor	Miro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS	1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Warranty	03 Years
