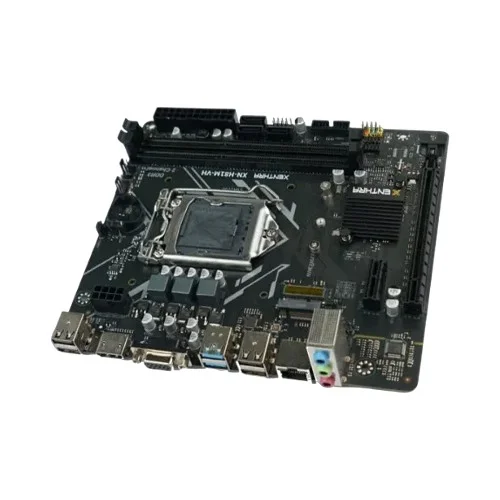

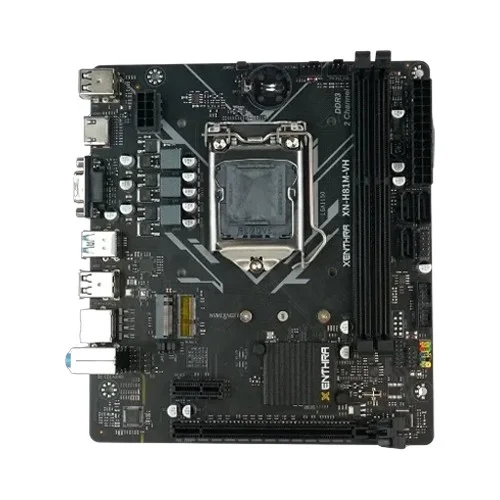

XENTHRA XN-H81M-VH Intel 4th Gen Micro-ATX Motherboard
The XENTHRA XN-H81M-VH is a practical Micro-ATX motherboard designed for users who want to build or upgrade a reliable Intel 4th Generation desktop PC without spending heavily on newer platforms. Based on the Intel B85 Express Chipset and featuring an LGA1150 CPU socket, this motherboard supports a wide range of Intel 4th Generation Core™ i7, i5, and i3 processors, along with compatible Pentium, Celeron, and Xeon E3-1200 v3 series CPUs. For Bangladeshi users looking for an affordable motherboard for everyday computing, office work, study, home use, small business applications, or a budget-friendly PC build, the XN-H81M-VH offers a balanced selection of essential features.
With a compact 190 mm x 170 mm Micro-ATX form factor and a 4-layer PCB structure, the board is suitable for space-conscious desktop configurations. It provides support for up to 16 GB of DDR3 system memory, M.2 storage connectivity, SATA interfaces, Gigabit LAN, multiple USB ports, HDMI and VGA display outputs, and PCI Express expansion. This combination makes it a useful option for buyers who need a dependable platform around an existing or affordable Intel 4th Gen processor.
Intel 4th Generation Processor Compatibility
The XENTHRA XN-H81M-VH uses an LGA 1150 CPU socket and is designed to support Intel 4th Generation Core™ processors. Depending on the user's requirements and available budget, the motherboard can be paired with compatible Core i3, Core i5, or Core i7 processors. It also supports selected Intel Pentium, Celeron, and Xeon E3-1200 v3 series processors, giving PC builders flexibility when selecting a CPU for different workloads.
The validated processor list includes models such as the Intel G1820, Core i3-4330, Core i5-4590S, Core i7-4770, and Xeon E3-1230 v3. This makes the board particularly relevant for users who already own an older compatible processor and want to replace a damaged motherboard or create a low-cost refurbished desktop system. Before purchasing, buyers should always confirm their specific processor compatibility and system requirements.
Dual-Channel DDR3 Memory Support
For memory, the motherboard includes two 240-pin DDR3 DIMM slots with dual-channel architecture. It supports DDR3 memory speeds of 1600 MHz, 1333 MHz, and 1066 MHz, with a maximum system memory capacity of up to 16 GB. Each individual slot can support up to 8 GB, making it possible to configure a practical 8 GB or 16 GB system depending on the user's workload and available memory modules.
For students, office employees, home users, and small businesses in Bangladesh, an 8 GB configuration can be suitable for common tasks such as web browsing, Microsoft Office applications, online classes, document editing, accounting software, and general multitasking. Users who need additional capacity can utilize both memory slots to reach the supported maximum. Dual-channel memory support can also help improve overall memory bandwidth when compatible modules are installed correctly.
M.2 and SATA Storage Connectivity
One of the useful features of the XN-H81M-VH is its M.2 slot, which supports NVMe PCIe 2.0 x4 and SATA 3.0 NGFF modes through a jumper protocol switch. This gives PC builders additional flexibility when selecting compatible M.2 storage for their system. The motherboard also includes one SATA 3.0 interface with up to 6 Gbps connectivity and two SATA 2.0 ports supporting up to 3 Gbps.
For users upgrading an older desktop, adding an SSD can make a noticeable difference in everyday responsiveness compared with a traditional hard disk drive. Faster system boot times, quicker application launches, and improved file access can make the PC feel more responsive for daily workloads. Buyers should carefully check the M.2 drive type and jumper configuration before installation because the supported M.2 operating mode depends on the selected protocol.
Expansion Options for Flexible PC Builds
The XENTHRA XN-H81M-VH includes one PCIe 2.0 x16 slot and one PCIe 2.0 x1 slot for expansion. The PCIe x16 slot can be used with a compatible discrete graphics card or other supported expansion hardware, while the x1 slot provides additional flexibility for compatible expansion cards.
The motherboard also features a dedicated M.2 Wi-Fi / WLAN slot, allowing users to expand wireless connectivity with a compatible module. This can be useful for desktop users who do not want to depend entirely on wired networking. The available expansion options make the board suitable for a range of practical configurations, from basic home and office computers to selected budget-oriented builds.
HDMI and VGA Display Connectivity
For display output, the motherboard provides one HDMI port and one VGA D-Sub port. This is convenient for users who have older VGA monitors as well as newer HDMI-compatible displays. The available display connectivity can be especially useful when upgrading an existing desktop setup where the monitor may already be available.
However, display output performance depends on the capabilities of the installed processor and its integrated graphics support. Users planning a dedicated gaming or graphics-focused system can take advantage of the PCIe x16 expansion slot with a compatible discrete graphics card. For everyday office work, study, web browsing, media playback, and general desktop usage, the available display interfaces provide practical connectivity options.
USB, Gigabit LAN and Audio Features
The rear I/O panel includes two USB 3.0 ports and four USB 2.0 ports for connecting peripherals such as keyboards, mice, printers, external storage devices, and other USB accessories. The combination of USB 3.0 and USB 2.0 ports gives users flexibility for both newer and legacy peripherals.
For wired networking, the motherboard features an RJ45 Gigabit LAN port powered by a Realtek Gigabit chipset. This makes it suitable for internet browsing, online classes, office networking, file transfers, and other everyday network-based tasks when connected to a compatible Gigabit network.
Audio is handled by a Realtek High-Definition Audio Codec, with three 3.5 mm audio jacks for Line Out, Mic In, and Line In. This provides the essential audio connections needed for speakers, headphones, microphones, and other standard analog audio equipment.
Practical Internal Headers and System Connectivity
For PC builders, the motherboard provides several internal headers and connectors for system expansion and installation. It includes two FUSB 2.0 headers that can be expanded to support up to four additional front USB 2.0 ports. There is also one 4-pin CPU fan header and one 3-pin system fan header for connecting compatible cooling fans.
The board includes a 14-pin TPM 2.0 port, a 2x5-pin diagnostic card interface, and a JCMOS pin header. It also provides an FPANEL front-panel pin header and a front audio built-in pin header. These connections help support practical desktop assembly and system configuration, particularly for users building a custom PC or replacing an older motherboard.
Compact Micro-ATX Design for Bangladesh PC Builds
The 190 mm x 170 mm Micro-ATX form factor makes the XN-H81M-VH suitable for compact desktop configurations. For Bangladeshi buyers who have limited desk space or want to reuse an existing compatible PC case, the compact motherboard design can be a practical advantage. Before purchasing, users should confirm that their PC case supports the Micro-ATX form factor and that the required mounting points are compatible.
The 4-layer PCB structure provides a solid foundation for a budget-oriented desktop platform. The motherboard uses a 24-pin main ATX power connector and a 4-pin 12V CPU power connector. Its stated standby power dissipation is 20W to 45W, while full-load power dissipation is 90W to 120W excluding a discrete graphics card. Users should choose a suitable power supply based on the complete system configuration, including the processor, storage, graphics card, and other installed components.
Who Should Buy the XENTHRA XN-H81M-VH?
This motherboard is primarily suitable for Bangladeshi users who want an economical solution for an Intel 4th Generation PC. Students can use it for online learning, assignments, browsing, programming, and basic productivity. Office users can build systems for document processing, spreadsheets, accounting, email, and business applications. Home users can also use the platform for web browsing, entertainment, media playback, and general computing.
It can also be a practical replacement option for users whose existing LGA1150 motherboard has failed but whose processor, DDR3 RAM, storage, or other components are still usable. Reusing compatible components can help reduce the overall cost of upgrading a desktop PC, which is an important consideration for budget-conscious buyers in Bangladesh.
For professional content creation, demanding modern gaming, advanced workstation workloads, and high-end applications, buyers should consider a newer platform with more recent processor architecture and memory technology. The XN-H81M-VH is better positioned as a cost-effective platform for compatible legacy hardware, everyday computing, and budget-conscious desktop builds.
Buying Considerations and Value for Money
When searching for the XENTHRA XN-H81M-VH motherboard price in Bangladesh, buyers should consider more than the initial purchase cost. Compatibility with the existing CPU, DDR3 RAM, PC case, power supply, storage devices, and other components is essential. Checking these specifications before ordering can help avoid compatibility issues and unnecessary replacement costs.
For online shoppers, authenticity and reliable after-sales support are also important factors when buying computer hardware. Creatus Computer provides a convenient platform for customers looking for PC components in Bangladesh. Buyers should check the current product price, stock availability, warranty terms, and delivery details before placing an order.
Overall, the XENTHRA XN-H81M-VH offers a useful combination of LGA1150 processor support, dual-channel DDR3 memory, M.2 storage compatibility, SATA connectivity, PCIe expansion, Gigabit LAN, HDMI, VGA, and multiple USB ports. For users building an affordable PC around compatible Intel 4th Generation hardware, it can provide a practical balance between essential features and budget-conscious system building. Whether you are a student, office user, home PC owner, or someone looking to replace an older motherboard, this Micro-ATX model is designed to cover the core requirements of a dependable everyday desktop.
Frequently Asked Questions
1. What is the XENTHRA XN-H81M-VH motherboard price in Bangladesh?
The current price of the XENTHRA XN-H81M-VH can vary depending on stock availability and seller pricing in Bangladesh. Buyers should check the latest listed price at Creatus Computer before ordering and compare the included warranty and after-sales support to determine the overall value.
2. Is the XENTHRA XN-H81M-VH compatible with Intel 4th Gen processors and DDR3 RAM?
Yes. The motherboard uses an LGA 1150 socket and supports compatible Intel 4th Generation Core i7, i5, i3, Pentium, Celeron, and Xeon E3-1200 v3 series processors. It has two DDR3 DIMM slots with dual-channel support and supports up to 16 GB of system memory.
3. Can I buy the XENTHRA XN-H81M-VH motherboard online in Bangladesh?
Yes, the motherboard can be purchased online from a trusted Bangladeshi computer retailer, subject to stock availability. Before placing an order, confirm the product's authenticity, warranty coverage, delivery options, and compatibility with your existing CPU, RAM, case, power supply, and storage devices.
