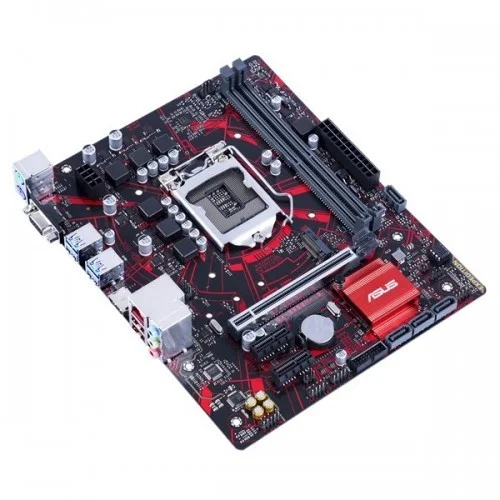

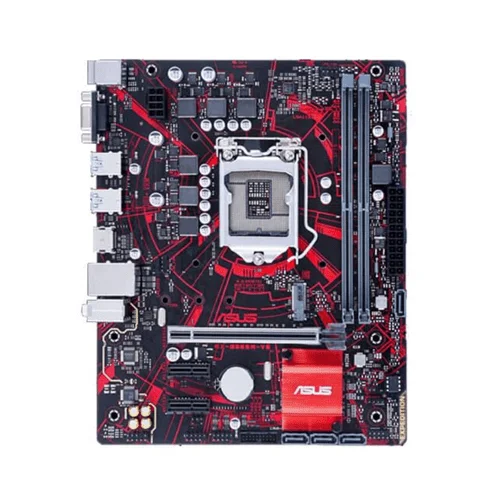

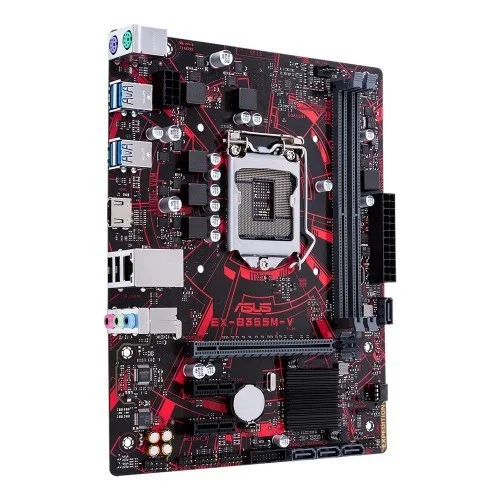

ASUS EX-B365M-V5 Motherboard

ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion, and overvoltages — for immense longevity. We even test them to the limits, with 144 hours of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance — and the best stability, reliability, and value for you! ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and feature to ensure non-stop durability, including a luminous anti-moisture coating, SafeSlot Core+, LANGuard, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability. An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your Expedition motherboard.

Specifications:

Basic Information
Supported CPU	Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0
Chipset	Intel B365
Form Factor	uATX Form Factor 8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1
M.2 Socket	1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
Memory
Slots	2 x DDR4 DIMM
Supported Memory	2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP)
Maximum Mamory	32 GB
Graphics
Graphics	Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support: HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz - Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Max Shared Memory	1024 MB
Connector & Ports
HDMI	1 x HDMI 1.4b (max. resolution 4096 x 2160 @ 30 Hz)

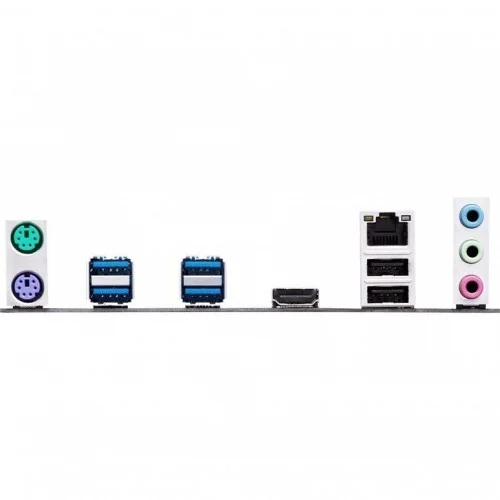

USB (s)	Intel® B365 Chipset : 6 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) Intel® B365 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, red, 4 at mid-board)
LAN Port (s)	Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Supported Storage	Intel B365 Chipset : 4 x SATA 6Gb/s port(s), 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCI-E mode) Intel Optane Memory Ready
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Internal I/O Ports	1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
D-Sub (s)	1x D-sub (max. resolution 1920 x 1200 @ 60 Hz)
Warranty Information
Manufacturing Warranty	03 Years
Others
Special Features	ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design - ASUS SafeSlot Core+ - Prevent graphics card damage Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
