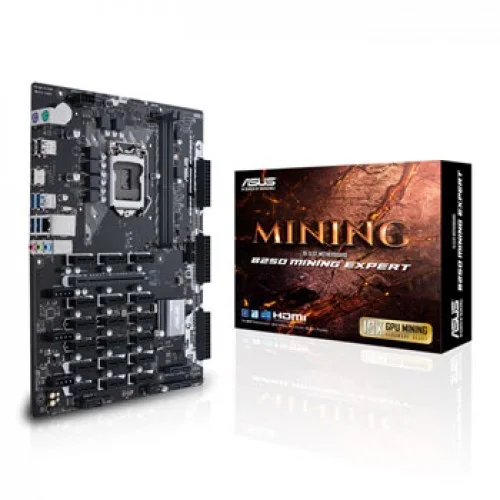

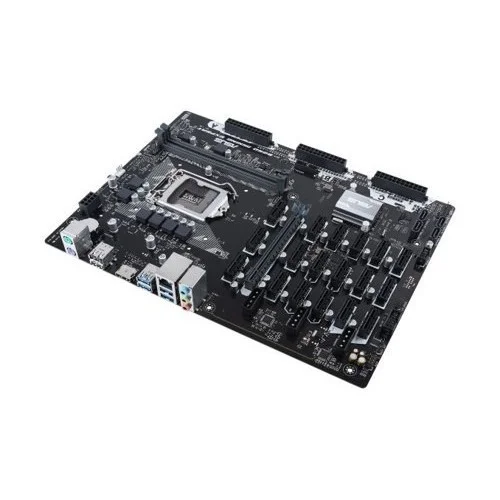

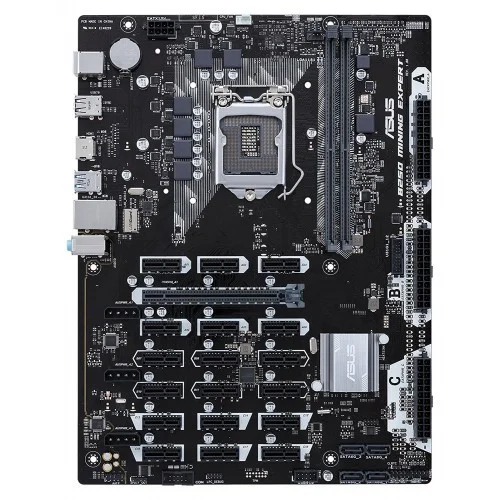

Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard

Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard
Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard
Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard
Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard
Out Of Stock
Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard
Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard
Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard
Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard
Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard
  • Stock: Out Of Stock
  • Model: B250
0৳
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
  • •  Model: Asus B250 Mining Expert •  ATX Form Factor •  Intel B250 Chipset •  Maximum shared memory of 1024 MB

Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard

  • World’s first 19-slot motherboard for multi-GPU mining
  • Exclusive triple-ATX12V design and 19 decoupling capacitors for stable power delivery
  • ASUS PCIe Slot State Detection indicates the status of each GPU connection for easy management and debugging
  • Unique Mining Mode for hassle-free setup of your mining rig — no BIOS tweaks required
  • Intel LAN and LANGuard for the best network performance

Specifications:

Basic Information
Supported CPUIntel Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel B250
BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Form FactorATX Form Factor 12 inch x 9.1 inch ( 30.5 cm x 23.1 cm )
Expansion Slots
PCI1 x PCIe x16 (x16 mode) 18 x PCIe x1
Memory
TypeDDR4
Supported MemorySupports Intel Extreme Memory Profile (XMP)
Maximum Mamory32GB
Graphics
GraphicsVGA output support : HDMI port -Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Max Shared MemoryMaximum shared memory of 1024 MB
Connector & Ports
HDMIYes
Display Port (s)Yes
USB (s)Intel B250 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board) Intel B250 Chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
LAN Port (s)Intel I219V, 1 x Gigabit LAN Controller(s)
Supported Storage4 x SATA 6Gb/s port(s),
AudioRealtek ALC887 8-Channel High Definition Audio CODEC
Internal I/O Ports1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 3 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 3 x 4-pin AUXPWR Header
Warranty Information
Manufacturing WarrantyNo


Quick Compare

Product Details
ProductAsus B250 Mining Expert Intel LGA-1151 ATX DDR4 MotherboardEsonic H61FHL MotherboardStarex ST-H61 MotherboardHUANANZHI H61 M.2 Motherboard
Image Asus B250 Mining Expert Intel LGA-1151 ATX DDR4 Motherboard Esonic H61FHL Motherboard Starex ST-H61 Motherboard HUANANZHI H61 M.2 Motherboard
Price 0৳ 4,000৳ 3,890৳ 4,500৳ 4,450৳ 5,000৳ 4,980৳
ModelB250Esonic H61FHLStarex ST-H61HUANANZHI H61
BrandEsonicSTAREXHUANANZHI
AvailabilityOut Of StockIn StockIn StockIn Stock
Rating
Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.
SummaryAsus B250 Mining Expert Intel LGA-1151 ATX DDR4 MotherboardWorld’s first 19-slot motherboard for multi-GPU mining Exclusive triple-ATX12V design and 19 decoupling capacitors for stable power delivery ASUS PCIe Slot State Detection indicates the status of each GPU connection for easy management and debugging Unique Mining Mode for hassle-free setup of your mining rig — no BIOS tweaks required Intel LAN and LANGuard for the best network performanceSpecifications:Basic InformationSupported CPU Intel Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.Chipset Intel B250BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory informationForm Factor ATX Form Factor 12 inch x 9.1 inch ( 30.5 cm x 23.1 cm )Expansion SlotsPCI 1 x PCIe x16 (x16 mode) 18 x PCIe x1MemoryType DDR4Supported Memory Supports Intel Extreme Memory Profile (XMP)Maximum Mamory 32GBGraphicsGraphics VGA output support : HDMI port -Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 HzMax Shared Memory Maximum shared memory of 1024 MBConnector & PortsHDMI YesDisplay Port (s) YesUSB (s) Intel B250 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board) Intel B250 Chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)LAN Port (s) Intel I219V, 1 x Gigabit LAN Controller(s)Supported Storage 4 x SATA 6Gb/s port(s),Audio Realtek ALC887 8-Channel High Definition Audio CODECInternal I/O Ports 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 3 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 3 x 4-pin AUXPWR HeaderWarranty InformationManufacturing Warranty No ..SpecificationsBASIC INFORMATIONBrand Esonic H61-FELMOTHERBOARD BASIC INFOSupported CPU Intel Core ( i3,i5,i7) 2nd & 3rd Gen || Dual Core 2nd and 3rd GenChipset H61Form Factor ATXMOTHERBOARD MEMORY INFOSlots 2 x DDR3 DIMM SlotSupported Memory Supports DDR3 1333 / 1600Maximum Memory 16 GBCONNECTOR & PORTS (MB)LAN Port (s) LAN 10/100M EthernetSupported Storage Serial ATAWARRANTY INFORMATIONWarranty 1 YearEsonic H61FHL Motherboard When You want to build a desktop computer at cheap prices like 10000 takas or less you need to consider a motherboard that price range from 3800-4000 Taka. Here You Get an Esonic H61-FEL Motherboard with 1 Year Replacement Warranty...SpecificationGeneralBrand STAREXModel STAREX H61SpecificationChipset Intel H61Data Rate DDR3Number of Memory Slots 2Motherboard Memory Technology DDR3Supported Starex H61 Support for Intel@ Core™ i7 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron®Processors Processors in the LGA1155 package L3 cache varies with CPUFront Side Bus FSB Support FSB 1333/1600Max Memory Support Dual Channel DDR3 1333/1600 MHz Memory, 2 x DDR3 DIMM Memory Slot, Maximum Support up to 8 GB MemoryOnboard Video Intel Extreme Graphics, On Board Graphic MaxOnboard Audio HD AudioOnboard Lan 10/100 Controller..SpecificationMainboard HUANANZHI H61Platform Intel® H61, LGA1155Memory 2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz, Supports non-ECC Memory, Dual Channel Memory ArchitectureGraphic Integrated Graphics Processor 1 x VGA port 1 x DVI-I port 1 x HDMI port Supports NVIDIA® and AMD® Graphics CardsAudio Realtek® ALC662 5.1-Channel, High Definition Audio CODECLAN Realtek® RTL8105, 1 x 10/100 Mbit/s LAN Controller(s)Expansion Slots 1 x PCIe 3.0 x16 1 x PCIe x1Storage 4 x SATA2.0 (3GB/s) port(s)Internal I/O Ports 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP)Back I/O Ports 1 x PS/2 Keyboard and Mouse port 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s)Form Factor Micro ATX Form Factor; 21.5cm x 16.8cmPacking list 1 x I/O Shield, 1 x SATA Cable, 1 x Manual..
