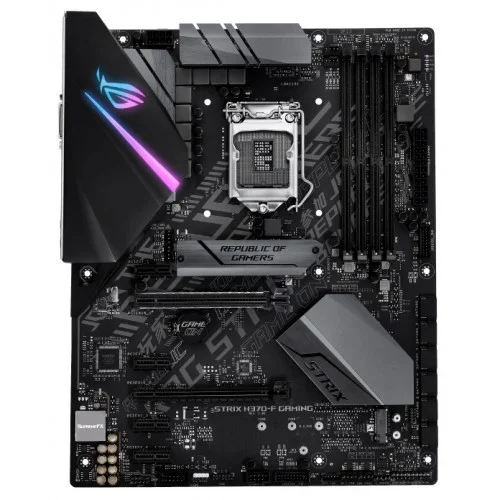

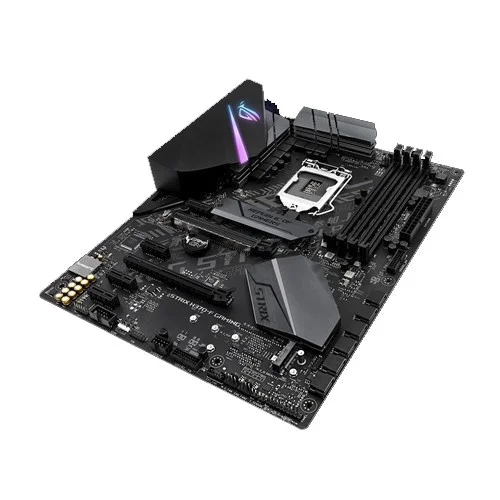

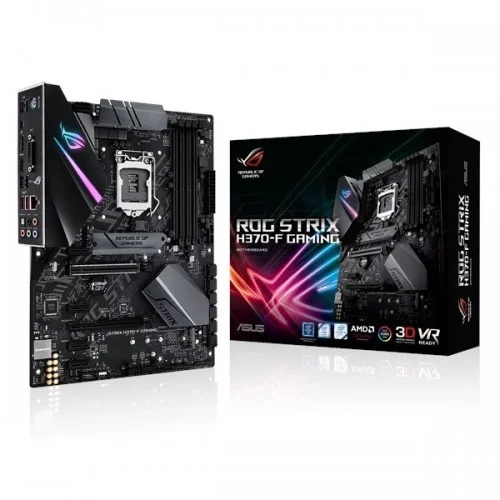

ASUS ROG STRIX H370-F 8TH GEN GAMING MOTHERBOARD

Asus Rog Strix H370-F ATX 8th gen gaming motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This aura sync RGB board also supports dual channel DDR4 maximum 64GB memory and it has the capability of fast dual M.2 with heatsink and USB 3.1 Gen 2 Type-A and Type-C interface. Focusing on the graphics, it will support Intel HD graphics having the maximum resolution of 4096 x 2160 @ 24 Hz for HDMI, 1920 x 1200 @ 60 Hz for DVI-D & 4096 x 2304 @ 60 Hz for DisplayPort. This AMD 2-Way CrossFireX technology supported motherboard has Multi-VGA output, 6 x PCIe slots & SATA 6Gbps and USB 3.1 Gen 2, Gigabit Ethernet with LANGuard and GameFirst technology.

Specification:

Basic Information
Supported CPU	Intel® Socket 1151 for 8th Generation Core™ Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® H370
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 Print Screen, , F4 AURA ON/OFF and F9 Search
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode) Intel® H370 Chipset 1 x PCIe 3.0/2.0 x16 (x4 mode) 4 x PCIe 3.0/2.0 x1
M.2 Socket	1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported Memory	Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Mamory	64GB
Graphics
Graphics	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort ports Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DVI-D 1 x DisplayPort
USB (s)	1 x USB 3.1 Gen 2 (black)USB Type-CTM, 2 x USB 3.1 Gen 2 (red)Type-A 4 x USB 2.0
LAN Port (s)	1 x LAN (RJ45) port(s)
Supported Storage	1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *4 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link
Internal I/O Ports	1 x AAFP connector 1 x RGB Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 2 x 3D Mount screw port(s)
Warranty Information
Manufacturing Warranty	03 years
