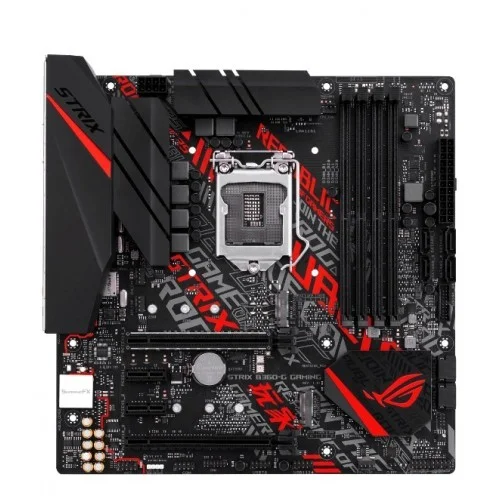

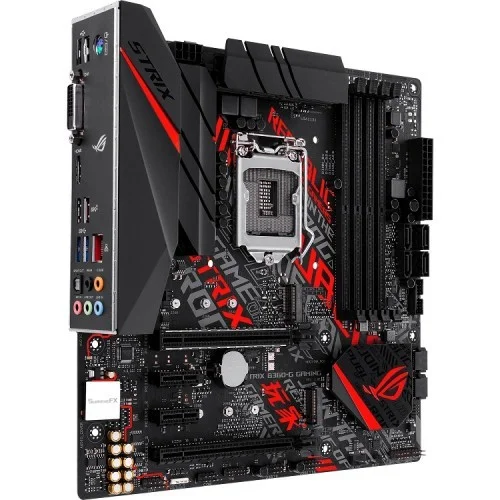

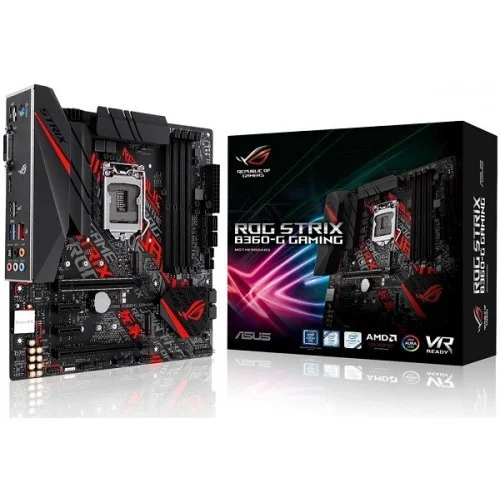

ASUS ROG STRIX B360-G GAMING MOTHERBOARD

Asus ROG STRIX B360-G mATX 8th gen gaming motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This aura sync RGB board also supports dual channel DDR4 maximum 64GB memory and it has the capability of fast dual M.2 and USB 3.1 Gen 2 Type-A interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of 4096 x 2160 @ 30 Hz for HDMI, 1920 x 1200 @ 60 Hz for DVI-D slots. This AMD 2-Way CrossFireX technology supported motherboard has 4 x PCIe slots, Gigabit Ethernet with LANGuard and GameFirst technology, SupremeFX S1220A teamed with Sonic Studio III for great audio effect.

Specification:

Basic Information
Supported CPU	Intel® for 8th Generation Core™ Processors Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® B360
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, ASUS Secure Erase, ASUS User Profile, F4 AURA ON/OFF, F9 Search
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
PCI	1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1
M.2 Socket	1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported Memory	Supports Intel® Extreme Memory Profile (XMP) DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Mamory	64GB
Graphics
Graphics	Supports AMD 2-Way CrossFireX Technology Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DVI
USB (s)	2 x USB 3.1 Gen 2
LAN Port (s)	Anti-surge LAN (RJ45) port
Supported Storage	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)* 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 6 x SATA 6Gb/s port(s) Intel® Optane™ Memory Ready *
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) 113 dB SNR recording input Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Sonic Radar III - Sonic Studio III + Sonic Studio Link
Internal I/O Ports	1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x Clear CMOS jumper(s)
Warranty Information
Manufacturing Warranty	03 years
