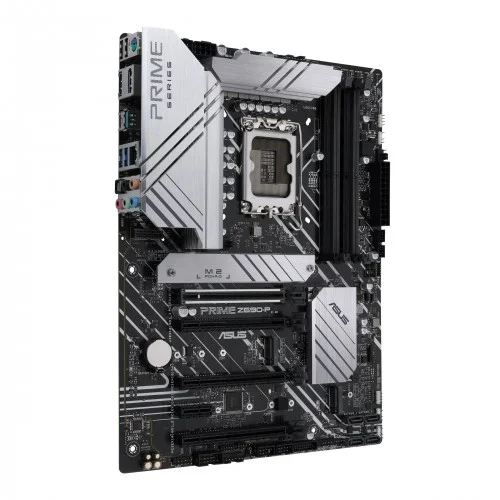

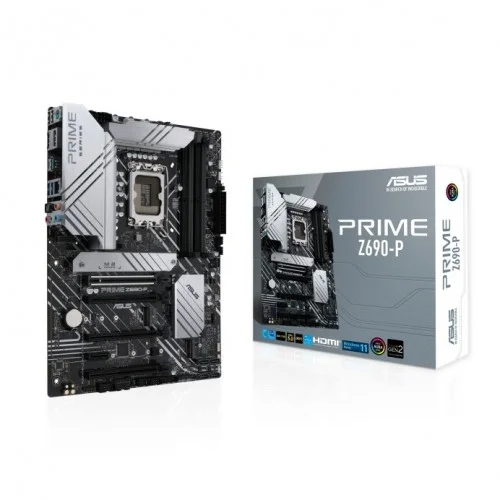

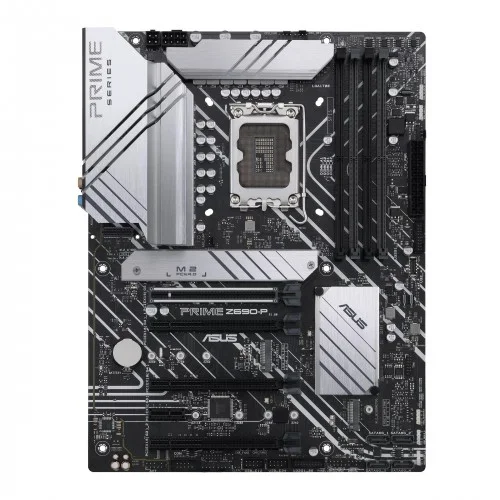

Asus Prime Z690-P 12th Gen ATX Motherboard
Out Of Stock
Asus Prime Z690-P 12th Gen ATX Motherboard
- Stock: Out Of Stock
- Model: PRIME Z690-P
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- 14+1 DrMOS, 8+4 pin ProCool connector
- Large VRM heatsinks, M.2 heatsink
- Supports DDR5, PCIe 5.0, 2.5 Gb Ethernet
Quick Compare
| Product Details | ||||
| Product | Asus Prime Z690-P 12th Gen ATX Motherboard | Esonic H61FHL Motherboard | Starex ST-H61 Motherboard | HUANANZHI H61 M.2 Motherboard |
| Image |  |  |  |  |
| Price | | | | |
| Model | PRIME Z690-P | Esonic H61FHL | Starex ST-H61 | HUANANZHI H61 |
| Brand | ASUS | Esonic | STAREX | HUANANZHI |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. | Based on 0 reviews. | Based on 0 reviews. | Based on 0 reviews. |
| Summary | SpecificationBasic InformationSupported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0Chipset Z690BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOSForm Factor ATX 30.5cm x 23.4cmAudio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playbackAudio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layersExpansion SlotsPCI Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s)Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slotM.2 Socket Supports 3 x M.2 slotsMemoryType DDR5Slots 4 x DIMMSupported Memory DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem IIMaximum Memory 128GBGraphicsGraphics 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)Connector & PortsHDMI 1 x HDMI portDisplay Port (s) 1 x DisplayPortUSB (s) Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsLAN Port (s) 1 x Realtek 2.5Gb Ethernet ASUS LANGuardWireless Communication module V-M.2 slot only (Key E, CNVi & PCIe) * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.Supported Storage Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.Audio 5 x Audio jacksInternal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connectorStorage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-5pin System Panel header 1 x Thunderbolt headerTPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)Warranty InformationManufacturing Warranty 3 yearsOthersSpecial Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headersBundled Software ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeAsus Prime Z690-P 12th Gen ATX MotherboardThe Asus Prime Z690-P Motherboard features Intel LGA1700 socket Ready for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4. The Asus OptiMem II, careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking The Asus Prime Z690-P is supported with DDR5 memory, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2. The Asus Prime Z690-P offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The Asus Prime Z690-P comes with 3 years of warranty... | SpecificationsBASIC INFORMATIONBrand Esonic H61-FELMOTHERBOARD BASIC INFOSupported CPU Intel Core ( i3,i5,i7) 2nd & 3rd Gen || Dual Core 2nd and 3rd GenChipset H61Form Factor ATXMOTHERBOARD MEMORY INFOSlots 2 x DDR3 DIMM SlotSupported Memory Supports DDR3 1333 / 1600Maximum Memory 16 GBCONNECTOR & PORTS (MB)LAN Port (s) LAN 10/100M EthernetSupported Storage Serial ATAWARRANTY INFORMATIONWarranty 1 YearEsonic H61FHL Motherboard When You want to build a desktop computer at cheap prices like 10000 takas or less you need to consider a motherboard that price range from 3800-4000 Taka. Here You Get an Esonic H61-FEL Motherboard with 1 Year Replacement Warranty... | SpecificationGeneralBrand STAREXModel STAREX H61SpecificationChipset Intel H61Data Rate DDR3Number of Memory Slots 2Motherboard Memory Technology DDR3Supported Starex H61 Support for Intel@ Core™ i7 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron®Processors Processors in the LGA1155 package L3 cache varies with CPUFront Side Bus FSB Support FSB 1333/1600Max Memory Support Dual Channel DDR3 1333/1600 MHz Memory, 2 x DDR3 DIMM Memory Slot, Maximum Support up to 8 GB MemoryOnboard Video Intel Extreme Graphics, On Board Graphic MaxOnboard Audio HD AudioOnboard Lan 10/100 Controller.. | SpecificationMainboard HUANANZHI H61Platform Intel® H61, LGA1155Memory 2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz, Supports non-ECC Memory, Dual Channel Memory ArchitectureGraphic Integrated Graphics Processor 1 x VGA port 1 x DVI-I port 1 x HDMI port Supports NVIDIA® and AMD® Graphics CardsAudio Realtek® ALC662 5.1-Channel, High Definition Audio CODECLAN Realtek® RTL8105, 1 x 10/100 Mbit/s LAN Controller(s)Expansion Slots 1 x PCIe 3.0 x16 1 x PCIe x1Storage 4 x SATA2.0 (3GB/s) port(s)Internal I/O Ports 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP)Back I/O Ports 1 x PS/2 Keyboard and Mouse port 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s)Form Factor Micro ATX Form Factor; 21.5cm x 16.8cmPacking list 1 x I/O Shield, 1 x SATA Cable, 1 x Manual.. |
