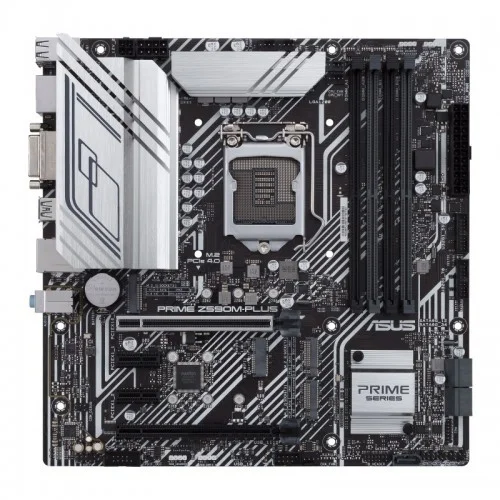

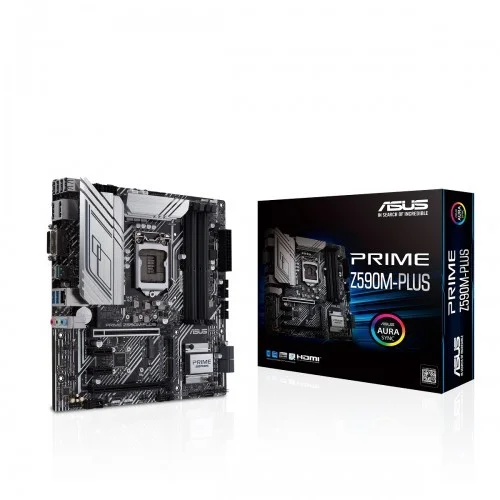

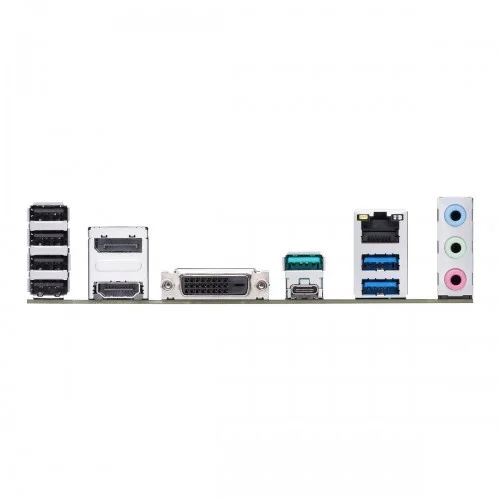

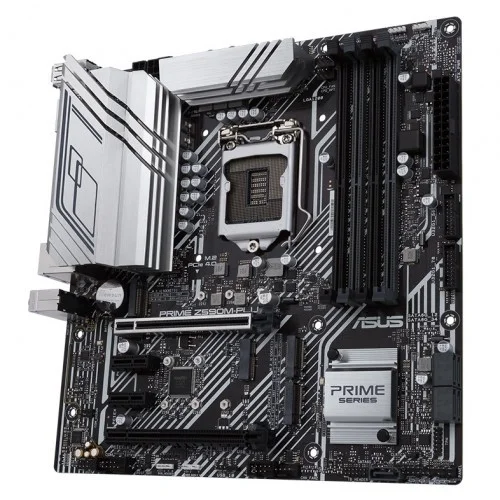

Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard

Discontinued

Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard

Stock: Discontinued
Model: Asus Prime Z590M-PLUS
Product id: 20219

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 10th and 11th Gen Intel Core Processors • Next-gen connectivity • Comprehensive cooling • Enhanced power solution

Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard

The Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard is expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590M-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. The motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Asus Prime Z590M-PLUS 11th Gen Motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Specifications:

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel Z590 Chipset
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Expansion Slots
PCI	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/ 3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 or x8/ x8 or x8/ x4/ x4 mode - Intel10th Gen processors support PCIe 3.0 x16 or x8/ x8 or x8/ x4/ x4 mode Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
M.2 Socket	Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/ 2280 (supports PCIe 3.0 x4 mode)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	1 x DisplayPort 1.4 DVI-D 1 x HDMI 1.4/ 2.0
Connector & Ports
HDMI	1 x HDMI 1.4/ 2.0
Display Port (s)	DisplayPort 1.4
DVI-D (s)	1 x DVI-D
USB (s)	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
LAN Port (s)	1 x Intel I219-V 1Gb Ethernet
Supported Storage	Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/ 2280 (supports PCIe 3.0 x4 mode) 5 x SATA 6Gb/s ports Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology
Audio	Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/ 192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 24-pin Main Power connector 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 5 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header COM Port header 1 x Front Panel Audio header (AAFP) M.2 slot (Key E) 1 x S/PDIF Out header 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	Wireless & Bluetooth: M.2 slot only (Key E) (Support CNVi & PCIe interface)
