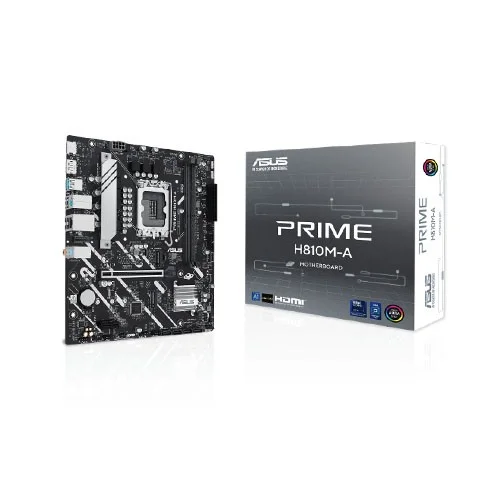

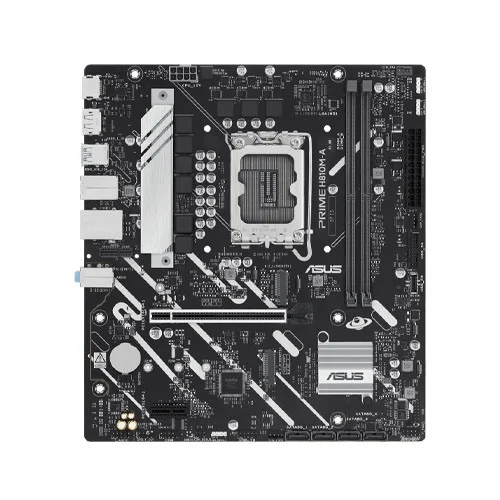

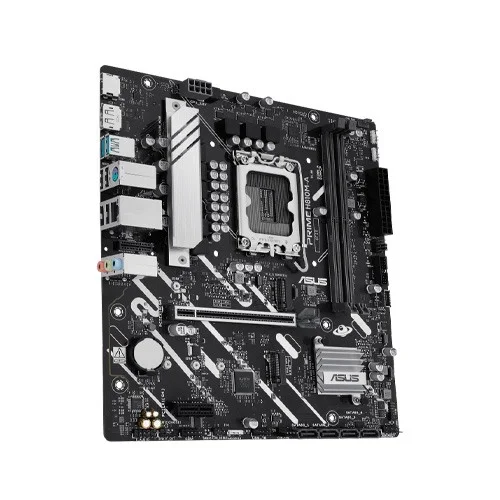

Asus Prime H810M-A Intel Motherboard

Name: Asus Prime H810M-A Intel Motherboard
Brand: ASUS
Availability: OutOfStock

Up Coming

Asus Prime H810M-A Intel Motherboard

Stock: Up Coming
Model: Prime H810M-A
Product id: 28000

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports Intel Core Ultra CPUs
Dual-channel DDR5 up to 6400MT/s
PCIe 4.0 & dual M.2 slots
USB 10Gbps & HDMI 2.1 support

Basic Information
Supported CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel® H810 Chipset
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Memory
Slots	Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® H810 Chipset 1 x PCIe 4.0 x1 slot
Supported Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II)
Graphics
Graphics	1 x DisplayPort 1 x HDMI™ port* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
USB (s)	Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
LAN Port (s)	1 x Intel® 1Gb Ethernet port* ASUS LANGuard *With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wireless Communication module	"V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately."
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

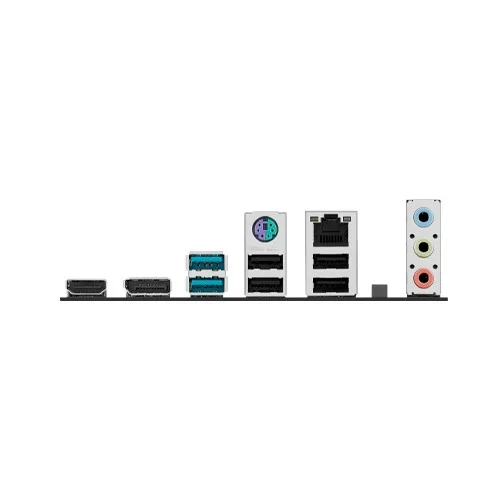

Internal I/O Ports	2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard/mouse combo port Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Software
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Warranty	3 Years

Asus Prime H810M-A Intel Motherboard

The Asus Prime H810M-A Intel Motherboard is engineered to deliver solid performance and reliability for users building an Intel-based desktop system. Designed with Intel’s latest LGA1851 socket, this motherboard supports Intel® Core™ Ultra Processors (Series 2) and is built on the Intel® H810 chipset, offering enhanced stability, compatibility, and efficiency for both home and office setups.It comes with support for dual-channel DDR5 memory up to 128GB, delivering blazing-fast speeds up to 6400MT/s for smooth multitasking and optimal system responsiveness. Equipped with two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, it ensures flexible and fast storage options. The expansion slots include one PCIe 4.0 x16 and one PCIe 4.0 x1 slot, perfect for graphics and add-on cards.On the connectivity front, the motherboard features Intel® 1Gb Ethernet with ASUS LANGuard protection, and offers multiple USB ports including USB 10Gbps Type-A and USB 5Gbps Type-C®, delivering high-speed data transfer for peripherals and storage devices. The Realtek 7.1 Surround Sound HD Audio codec ensures immersive audio with features like premium capacitors and audio shielding.Visual output is seamless with DisplayPort 1.4 and HDMI 2.1, supporting 4K@60Hz resolution. The board also includes numerous ASUS-exclusive features like 5X Protection III, Fan Xpert 2+, and Q-Design, offering enhanced durability, simplified installation, and optimal thermal management.With Aura Sync RGB headers, users can customize their rig’s aesthetics, while software tools like Armoury Crate and UEFI BIOS provide full control over performance tuning. Backed by a 3-year warranty, the Asus Prime H810M-A is a smart choice for users seeking a feature-rich, future-ready motherboard at an excellent value.

Features

Supports latest Intel® Core™ Ultra Series 2 Processors
Dual DDR5 slots up to 128GB and 6400MT/s speed
PCIe 4.0 x16 slot for next-gen GPU compatibility
2x M.2 PCIe 4.0 slots and 4x SATA 6Gb/s ports
USB 10Gbps and Type-C® front panel connectivity
Realtek 7.1 Surround Sound with premium audio capacitors
DisplayPort 1.4 and HDMI 2.1 support 4K@60Hz output
ASUS 5X Protection III ensures hardware longevity
ASUS Q-Design for easy DIY setup and upgrades
Aura Sync RGB header for lighting customization
