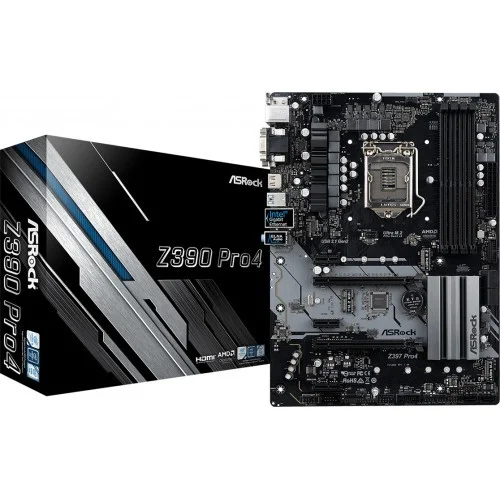

ASRock Z390 Pro4 8th and 9th Gen Motherboard

ASRock Z390 Pro4 8th and 9th Gen Motherboard

The ASRock Z390 Pro4 Motherboard and Z390M Pro 4 are so similar in terms specification, design and aesthetic, the only real core differences between both models are the form factor, PCIe layout including M.2 compatibility and through the rear panel. Both Z390 Pro4 boards feature a black PCB with a similar grey colored patterning to the Z390 Phantom Gaming 4 model. Neither board has a rear panel cover and both also disregard a power delivery heatsink for the SoC sections; both boards seemingly incorporate the same 10-phase power delivery as per ASRock's marketing resources. Both models also include a total of four 4-pin fan headers, with the Z390 Pro4 offering one extra PCIe 3.0 x1 slot than the smaller mATX version.On the ATX sized Z390 Pro4 and maTX Z390M Pro4, there are two full-length PCIe 3.0 slots with the top slot running at x16 and the bottom one at x4; this means two-way CrossFire is supported but no dice on SLI I'm afraid. The primary difference in PCIe which is a consequence to jumping from ATX to mATX is the Z390 Pro4 has three PCIe 3.0 x1 slots whereas the Z390M Pro4 has two.

Buy ASRock Z390 Pro4 on Newegg

With the storage, the Z390 Pro4 has a pair of PCIe 3.0 x4 and SATA supported M.2 slots with a total of six SATA ports; the ports are split up into four right-angled and two straight-angled connectors. The Z390M Pro4 has a slightly different setup with one of the dual M.2 slots only offering PCIe 3.0 x4 with the other port allowing for both PCIe 3.0 x4 and SATA drives to be used. The ASRock Z390M Pro4 also has six SATA ports with four featuring right-angled connectors and two with straight-angled connectors located between the right-angled ports and 24-pin ATX motherboard power input. Both boards have four RAM slots with a total capacity of up to 64 GB and have official support for DDR4-4300.The rear panel on the ASRock Z390 Pro4 consists of two USB 3.1 Gen2 (Type-A and Type-C), two USB 3.0 Type-A and two USB 2.0 ports. A trio of video outputs including HDMI, DVI-D and D-sub, as well as a combo PS/2 port and thanks to an M.2 E-key socket, a compatible Wi-Fi adapter can be installed with a bracket currently sitting empty for this on the rear IO. The singe LAN port is controlled by an Intel I219V Gigabit chip and the three 3.5 mm audio jacks are powered by a Realtek ALC892 HD audio codec.On the mATX sized ASRock Z390M Pro4 rear panel, a single USB 3.1 Gen2 Type and Type-C port are there, along with four additional USB 3.0 Type-A ports. Featured is a single Intel I219V Gigabit powered LAN port with the same Realtek ALC892 HD audio codec offering three 3.5 mm audio jacks, but the Z390M Pro4 drops the bracket and instead opts for two PS/2 ports; one for a mouse and the other for a keyboard. The same trifecta of video outputs is also featured which consist of a DVI-D, HDMI and D-Sub output.

●︎ Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)●︎ 10 Power Phase Design●︎ Supports DDR4 4300MHz+ (OC)●︎ 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2(Key E) For WiFi●︎ AMD Quad CrossFireX™ and CrossFireX™●︎ Graphics Output Options: HDMI, DVI-D, D-Sub●︎ 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps●︎ 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)●︎ 2 USB 3.1 Gen2 (Rear Type-A+C), 6 USB 3.1 Gen1 (4 Front, 2 Rear)●︎ Intel® Gigabit LAN

**02 years warranty.
