ASRock X470 Master SLI ATX AM4 AMD Motherboard

ASRock X470 Master SLI ATX AM4 AMD Motherboard

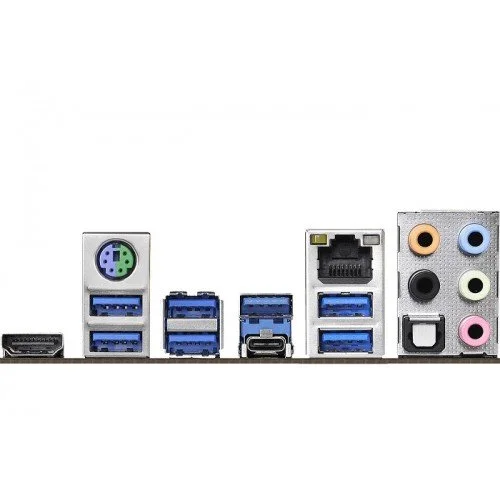

ASRock X470 Master SLI ATX AMD AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast M.2 with 2 PCIe 3.0 x16, 4 PCIe 2.0 x1 slots as interface. Considering the graphics, it will support NVIDIA Quad SLI & AMD Quad CrossFireX that enables up to 4GB shared graphics memory. This exclusive motherboard has the facility of 1 HDMI, 2 USB 3.1 Gen2 (rear Type-A+C), 10 USB 3.1 Gen1 (4 Front, 6 Rear) Ports, Gigabit LAN and 7.1 CH HD Realtek audio connectivity.

ASRock X470 Master SLI Review

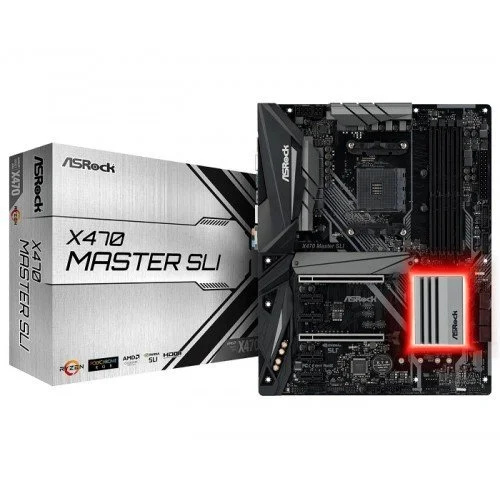

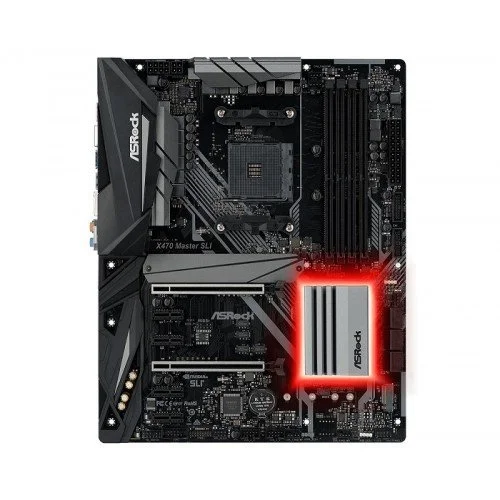

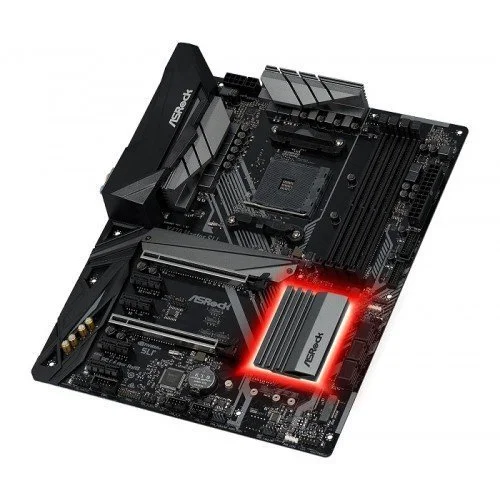

For those who love the AMD platform, or those who need a high-performance platform that still meets a reasonable budget, ASRock’s X470 Master SLI motherboard is a worthy reference. The ASRock X470 Master SLI offers users an extremely attractive product. It not only supports the AMD Ryzen 2 series of up to 8 cores with 16 threads, but also carries the necessary equipment for today’s high-speed dual-channel DDR4 memory up to 3600MHz +, two PCIe x16 slots Supports NVIDIA SLI and AMD CrossFire configurations, two Ultra M.2 slots for storage, of course, the ASRock Polychroma RGB baseplate. The exterior of the ASRock X470 Master SLI has a different style of design than gaming-oriented products. The box is made of two-tone black and white base and is pretty eye catching. The large-scale commercial name stands out in the center of the box, around which we have the specification specifications of this motherboard. The back of the picture is the introduction of key features on the X470 Master SLI. Although the box is in white / black, but their product has a completely opposite design style of two-tone black-gray. ASRock X470 Master SLI is a full size ATX motherboard. Overall, though, the price tag belongs to the popular X470 series chipset, but thanks to its 2-tone black-gray design, it still holds the edge. The clusters are arranged very reasonably. Though not a high-end product, the X470 Master SLI’s PCB is still made from fiberglass not only to increase the durability of the PCB, but also to better protect PCB layers from electrical leaks, short circuit during use. It also reinforces two OZ copper layers that not only cool the PCB temperature, but also improve signal transmission. The socket AM4 socket is a power source with Intersil digital modulation chip and 12 phase power supply with Japanese 12K black capacitor components and Premium 45A coils. MosFET cooling support is two high quality aluminum foil. To support and ensure the stability of processors with a large number of cores, the ASRock X470 Master SLI offers two power connectors for the CPU, including an 8-pin header and a 4-pin header. Four DDR4 memory slots support up to 3466MHz or higher memory depending on the type of memory you use. As a low-cost, high-performance consumer product, four unprotected DDR4 slots are available as gamers. One of the noteworthy features of this product is that ASRock fondly incorporates a cooler for the first Ultra M.2 slots, which is very useful when it comes to working in a high- Operation time as well as high load. There are six PCIe slots in which two PCIe x16 slots are armored. The X470 Master SLI not only supports CrossFireX home theater graphics, but also supports NVIDIA SLI technology in x8 / x8 configurations.) The large-capacity southbridge chipset is a simple design underneath a RGB LED backlight that is controlled via ASRock software and is the only area on this motherboard that incorporates backlighting.
