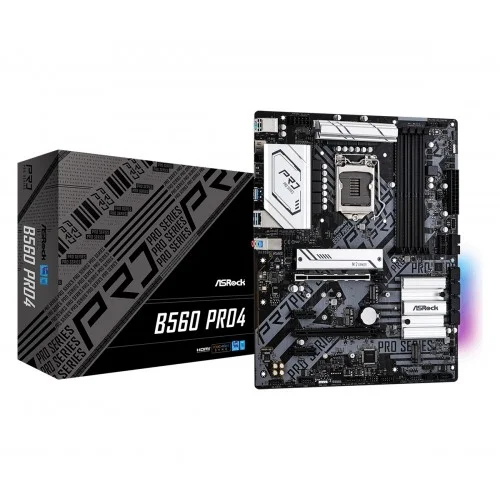

ASRock B560 Pro4 10th and 11th Gen ATX Motherboard

ASRock B560 Pro4 Motherboard supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors, 8 Phase Power Design, DDR4 4800MHz (OC), 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio, Graphics Output Options: HDMI, DisplayPort, 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. This Graphics card comes with 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi, 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3), 8 x USB 3.2 Gen1 (4 x Rear, 4 x Front), 4 x USB 2.0 (2 x Rear, 2 x Front), 1 x Front USB 3.2 Gen1 Type-C and Intel Gigabit LAN. Here, Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. For using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming so that each sound is properly positioned in 360° on a radar for a full immersion during the game. This motherboard comes with Dual Graphics Outputs - HDMI + DisplayPort combo, you have more graphics output options now. And also this motherboard also supports with the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry, And the USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

8 Power Phase Design

The new ASRock B560 Pro4 10th and 11th Gen ATX Motherboard featuring with sturdy components and completely smooth power delivery to the CPU and also offers enhanced performance with the lowest temperature for advanced gamers.

Premium 50A Power Choke

ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, as well as providing enhanced and improved Vcore voltage to the motherboard, compared to traditional chokes.

Base Frequency Boost (BFB) Technology

For ASRock BFB (Base Frequency Boost) Technology, you may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. And also, while ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

PCIe 4.0 High Speed M.2 Solution

This ASRock B560 Pro4 is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD and capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way. They offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Reinforced Steel Slot [PCIe 4.0 Version]

In this motherboard, the reinforced steel slot comes with the next-generation PCI Express 4.0 standard. The various benefits include, like- Extra anchor points, Stronger latch, Ensure signal stability, Make sure heavy graphics cards to be well-installed.

Water Pump Header & Full Spike Protection

This is supports water pumps. This header provides a maximum of 2A power for supporting the most popular water pumps. You can also adjust the voltage of water pump to get higher cooling performance with lower noise. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by unexpected voltage spikes. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately.

ASRock B560 Pro4 Review

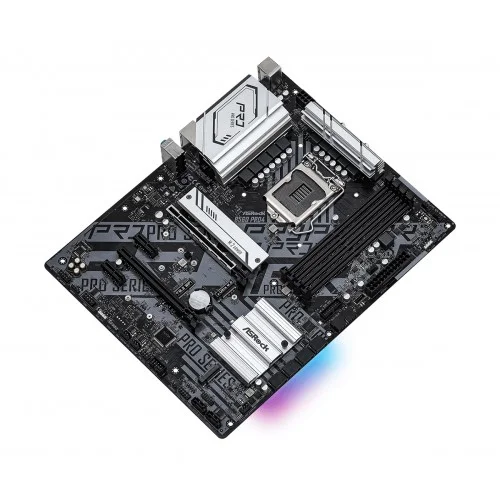

A lot of Intel B560 models are micro-ATX sized, which is a stark contrast compared with Z590, where there are barely any. ASRock does have a couple of ATX sized B560 models including the B560 Pro4/ac and B560 Pro4, with the only difference between both models is the ac version includes an Intel Wi-Fi 5 CNVi. Focusing on the design, the B560M Pro4 pairing includes a grey and black patterned PCB, with silver heatsinks and a small section of integrated RGB LED's located in the bottom right-hand corner. Located towards the center of the board are two full-length PCIe slots and two PCIe 3.0 x1 slots. The top full-length slot operates at PCIe 4.0 x16, while the second slot is electronically locked to PCIe 3.0 x4. ASRock includes four memory slots with support for up to DDR4-4800, with a maximum combined capacity of 128 GB. For storage, both the B560M Pro4/ac and B560M Pro4 include threeM.2 slots, with the top slot operating at PCIe 4.0 x4, one with support for PCIe 3.0 x4/SATA, and the third including support for PCIe 3.0 x2/SATA. The third M.2 slot shares bandwidth with one of the board's six SATA ports, which includes support for RAID 0, 1, 5, and 10 arrays.
