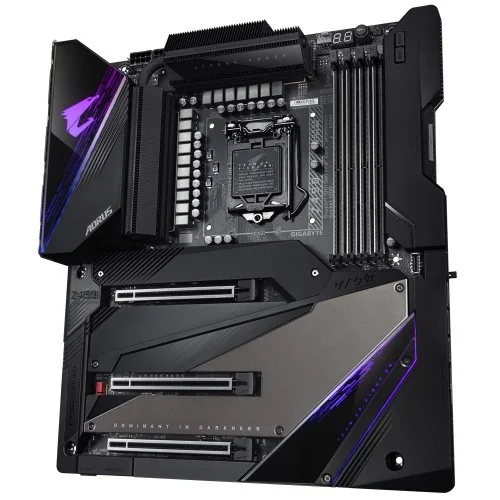

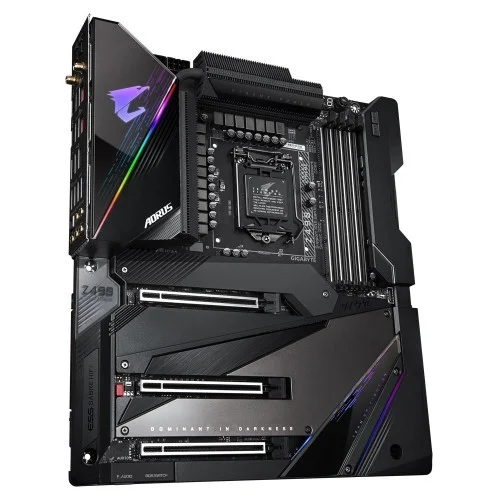

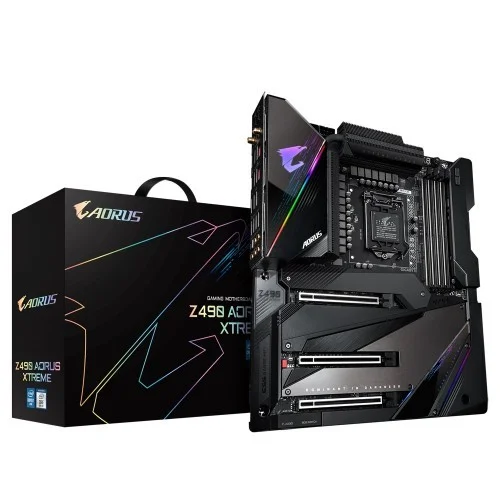

Gigabyte Z490 Aorus Xtreme 10th Gen WiFi E-ATX Motherboard

Gigabyte Z490 Aorus Xtreme 10th Gen WiFi E-ATX Motherboard

Showcasing a state-of-the-art design, excellent functionality, an impressive thermal design, next-generation network connectivity, a Hi-Fi level audio system, and AORUS aesthetics, the flagship Z490 AORUS XTREME motherboard dominates the competition. To unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS XTREME is a true beast among motherboards. To unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS XTREME is a true beast among motherboards. Z490 AORUS XTREME uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability, and low temperatures under full load application and gaming. Hungry for better performance? Z490 AORUS XTREME has a full PCIe 4.0 hardware design, supports high-frequency memory, and comes with full SSD thermal guards to make sure you get the maximum full system performance. A Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology.

Specification:

Basic Information
Supported CPU	Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Chipset	Intel Z490 Express Chipset
BIOS	2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	E-ATX Form Factor; 30.5cm x 27.1cm
Expansion Slots
PCI	PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4)
Memory
Type	Dual channel memory architecture
Slots	4 x DDR4 DIMM
Supported Memory	Intel Core i9/i7 processors: Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Intel Core i5/i3/Pentium/Celeron processors: DDR4 2666/2400/2133 MHz ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules
Maximum Mamory	128 GB
Graphics
Graphics	Integrated Graphics Processor+Intel Thunderbolt 3 Controller: 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory	512MB
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

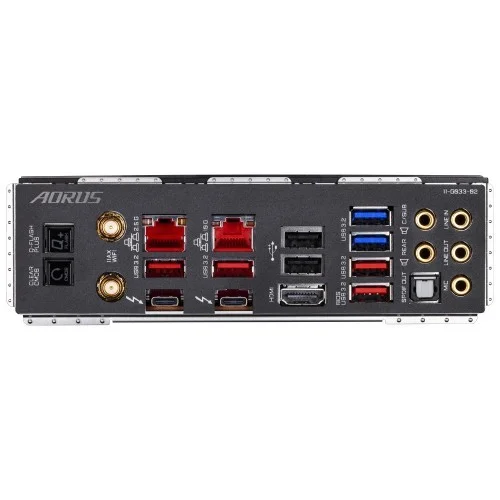

USB (s)	2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp Chipset+Intel Thunderbolt 3 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers with the included front USB header extension cable)
LAN Port (s)	1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1) 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2) Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIex4/x2 SSD support)(M2A_CPU) 1 x M.2 connector (Socket Three, SATA and PCIe x4/x2 SSD support)(M2M_PCH) M.2 connector (Socket Three, M key, type 2260 PCIe x4/x2 SSD support) (M2P_PCH) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio) Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio) Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors noise detection header 1 x front panel header 1 x front panel audio header USB Type-C™ header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 2 x temperature sensor headers power button 1 x reset button 1 x OC button 2 x BIOS switches Voltage Measurement Points
Warranty Information
Manufacturing Warranty	03 Years
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost RGB Fusion Smart Backup System Information Viewer USB TurboCharger Q-Flash Plus Q-Flash Xpress Install
