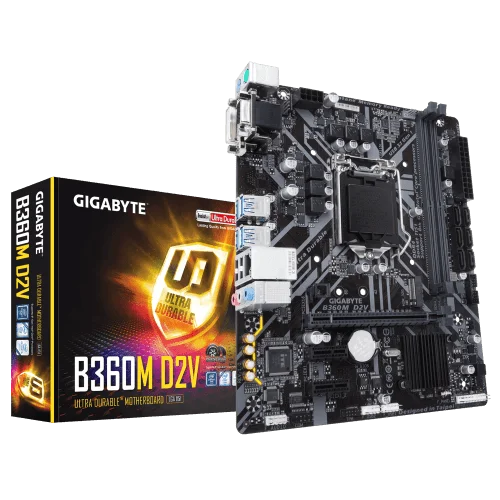

Gigabyte B360M D2V 8th Gen Motherboard

Out Of Stock

Stock: Out Of Stock
Model: Model-4884
Product id: 17424

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Model: Gigabyte B360M D2V • Intel B360 Express Chipset • Supports 8th Gen Intel Core i3, i5 & i7 Processors • RAM Slot: 2 x DDR4 DIMM • PCI Slot: 3 x PCI Express

Gigabyte B360M D2V 8th Gen Motherboard

Gigabyte B360M D2V Micro ATX hybrid digital PWM design Ultra Durable motherboard has the compatibility with 8th Gen i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. Regarding its graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200@60 Hz for DVI-D & D-Sub port. This latest motherboard has the facility of GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistors, high quality audio capacitors and noise guard with LED trace path lighting and ready for Intel Optane memory. All these characteristics makes this device very gaming friendly for the user. Dhaka, Rangpur, Chattagram & Sylhet are the prominent places where you will find the best prices for PC components. Now you have the luxury to order online to have your desired mainboard at any place in Bangladesh.

Specification:

Basic Information
Supported CPU	Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel® B360 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 18.5cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 Socket 3 connector
Memory
Type	2 x DDR4 DIMM sockets supporting
Slots	Dual channel memory architecture
Supported Memory	Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory	32 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.
Max Shared Memory	1GB
Connector & Ports
USB (s)	6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 years
