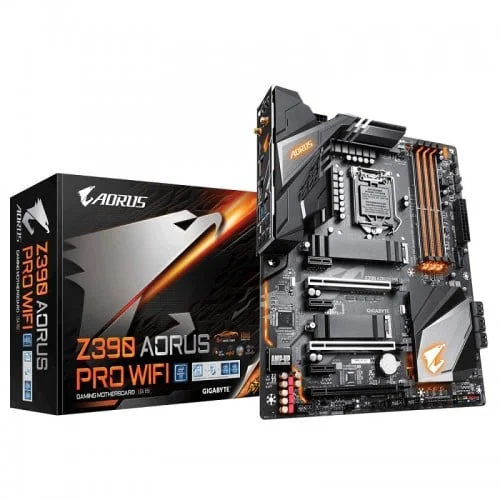

Gigabyte Z390 Aorus Pro Wifi 9th Gen Motherboard

Out Of Stock

Stock: Out Of Stock
Model: Model-4914
Product id: 17435

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 9th and 8th Gen Intel Processors • Intel® Z390 Express Chipset • Dual Channel Non-ECC Unbuffered DDR4 • Front USB 3.1 Gen 2 Type-C™ Header

Key Features
Form Factor	ATX
Basic Information
Chipset	Intel Z390
Memory
Ram Type	DDR4

Gigabyte Z390 Aorus Pro Wifi 9th Gen Motherboard

Gigabyte Intel Z390 AORUS Motherboard with 12 Phases Digital VRM Solutions, Multi-cuts Heatsinks with Heatpipe, RGB Fusion, 802.11ac Wireless, Dual M.2 with Thermal Guards, Intel® GbE LAN with cFosSpeed. Compatible with Intel 9th & 8th gen (Socket LGA1151) i9, i7, i5,i3, Pentium & CDC processor. Supports 9th and 8th Gen Intel® Core™ Processors,Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs,Intel® Optane™ Memory Ready,12+1 Phases Digital VRM Solution with DrMOS,Advanced Thermal Design with Multi-cuts Heatsinks and Heatpipe,Onboard Intel® CNVi 802.11ac 2x2 Wave 2 Wi-Fi, Its also supports ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors,Intel® Gigabit LAN with cFosSpeed, RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips,Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, Front USB 3.1 Gen 1 Type-C™ Header,Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal GuardsMulti-Way Graphics Support with Dual Armor and Ultra Durable™ Design, CEC 2019 Ready, Save Power With a Simple Click

Specification:

Basic Information
Supported CPU	Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
Chipset	Intel® Z390 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI	-1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the - - PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot - - Operates at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)
Memory
Type	4 x DDR4 DIMM sockets
Slots	Dual channel memory architecture
Supported Memory	Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory	64 GB
Graphics
Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory	1 GB
Connector & Ports
HDMI	1 x HDMI port
USB (s)	4 x USB 2.0/1.1 ports 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 2 x USB 3.1 Gen 2 Type-A ports (red) 3 x USB 3.1 Gen 1 ports
LAN Port (s)	Intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio	5 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ port, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers
Warranty Information
Manufacturing Warranty	03 Years
