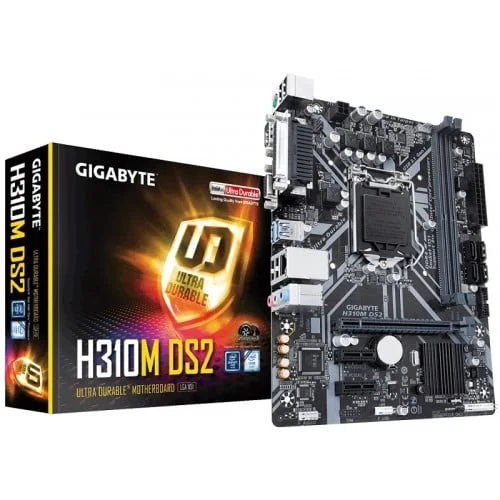

Gigabyte H310M DS2 8th Gen Micro ATX Motherboard

Out Of Stock

Stock: Out Of Stock
Model: H310M DS2
Product id: 17484

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Intel Socket 1151 for 8th Gen Core Processors • 2 x DIMM, Max. 32GB DDR4 • 3 x PCIe slots • Chipset: Intel H310 Express

Gigabyte H310M DS2 8th Gen Micro ATX Motherboard

Gigabyte H310M DS2 8th Gen Micro ATX motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This 8-Channel HD Audio with High Quality Audio Capacitor board has dual channel DDR4 maximum 32GB memory and it has the capability of Fast SATA 6Gb/s connectors and USB 3.1 Gen 1 interface. If we consider the graphics of this Anti-Sulfur Resistors Design board supports Intel HD graphics having the maximum resolution of 1920x1200@60 Hz for D-Sub port. This High Quality board has 3 x PCIe slots, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management and CEC 2019 Ready to Save Power With a Simple Click. Gigabyte H310M DS2 latest 8th gen mainboard with Intel H310 Express chipset is a great choice for your desktop setup and have the best price in Dhaka, Chattagram, Rangpur, Khulna & Sylhet. Order your PC components from Star Tech online shop and have the delivery at any place in Bangladesh.

Specification:

Basic Information
Supported CPU	Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel® H310 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
Type	DDR4
Slots	2 x DIMM sockets
Supported Memory	DDR4 2666/2400/2133 MHz memory modules ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Maximum Mamory	32 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Max Shared Memory	1 GB
Connector & Ports
USB (s)	4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	4 x SATA 6Gb/s connectors
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors CPU fan header system fan header front panel header front panel audio header USB 3.1 Gen 1 header USB 2.0/1.1 header Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 Years
