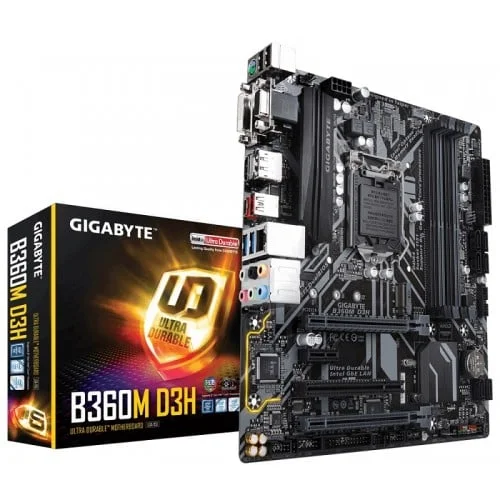

Gigabyte B360M D3H 8th Gen Micro ATX Motherboard

Out Of Stock

Stock: Out Of Stock
Model: Model-4898
Product id: 17430

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

• Intel Socket 1151 for 8th Gen Core Processors • Chipset: Intel B360 Express • 4 x DIMM, Max. 64GB DDR4 • 3 x PCIe & 1 x PCI slot

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Gigabyte B360M D3H 8th Gen Micro ATX Motherboard

Gigabyte B360M D3H 8th Gen Micro ATX motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This RGB FUSION supported RGB 7 colors LED strip board has dual channel DDR4 maximum 64GB memory and it has the capability of Ultra-Fast M.2 with PCIe Gen3 X4 & SATA and Intel® Native USB 3.1 Gen2 USB Type-A interface. If we consider the graphics of this Hybrid Digital PWM board, it will support Intel HD graphics having the maximum resolution of 4096x2160@30 Hz for HDMI, 4096x2304@60 Hz for DisplayPort and 1920x1200@60 Hz for D-Sub & DVI-D port. This High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting board has 3 x PCIe & 1 x PCI slot, Intel® GbE LAN with cFosSpeed Internet Accelerator Software, GIGABYTE UEFI DualBIOS™ and Intel® Optane™ Memory Ready platform. Gigabyte B360M D3H latest 8th gen mainboard with Intel B360 Express chipset is a great choice for your desktop setup and have the best price in Rangpur, Chattagram, Dhaka, Khulna & Sylhet. Order your PC components from Star Tech online shop and have the delivery at any place in Bangladesh.

Specification:

Basic Information
Supported CPU	Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel® B360 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 23.0cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x PCI slot
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Memory
Type	DDR4
Slots	4 x DIMM sockets
Supported Memory	Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Maximum Mamory	64 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time
Max Shared Memory	1 GB
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Intel® Optane™ Memory Ready
Audio	Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 Years
