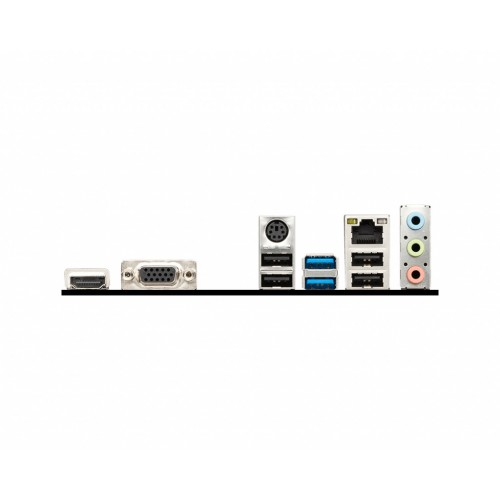

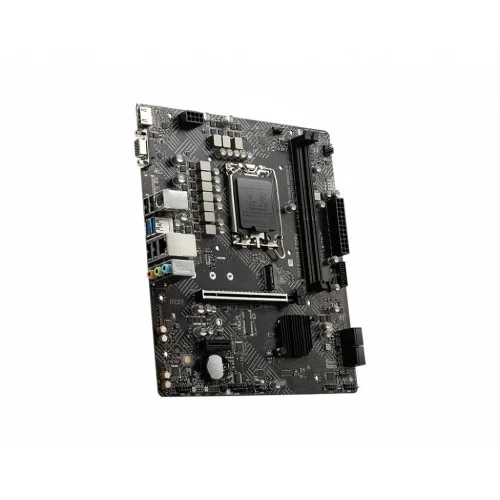

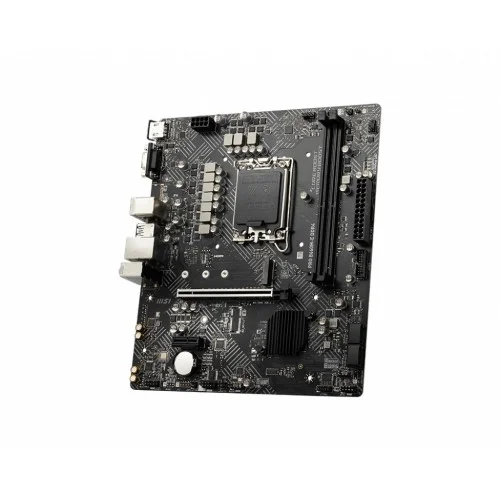

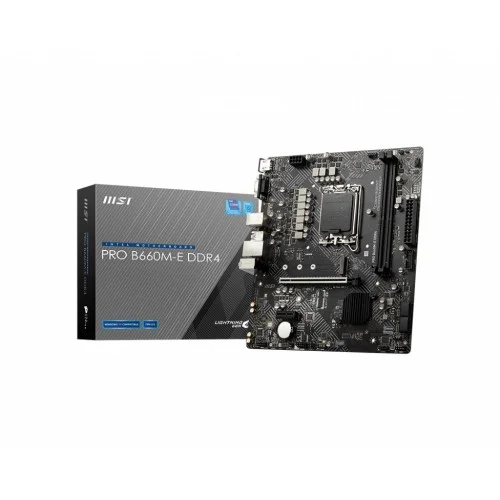

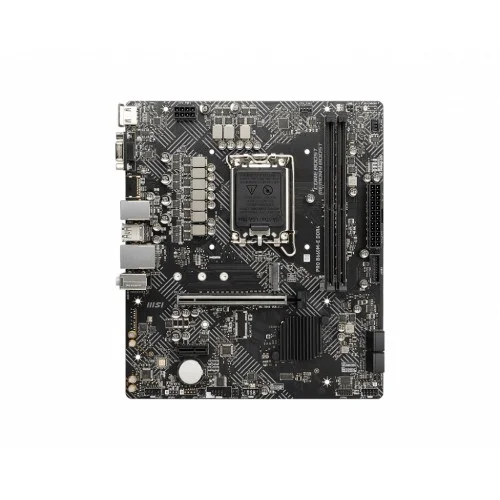

MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard
Save: 2600৳ (21%)
Out Of Stock
MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard
- Stock: Out Of Stock
- Model: MSI PRO B660M-E DDR4
- Product id: 22633
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supported Processors: 12th Gen Intel Core, Pentium Gold & Celeron processors
- Supported Memory: DDR4, up to 4600+(OC) MHz
- PCIe 4.0, premium layout, digital power design
- Supported socket: LGA 1700
Quick Compare
| Product Details | ||||
| Product | MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard | ASROCK H610M-H2/M.2 12th, 13th and 14th Gen mATX DDR4 Motherboard | Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard | Gigabyte A520M DS3H Ultra Durable Micro-ATX AMD AM4 Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | MSI PRO B660M-E DDR4 | H610M-H2/M.2 | Gigabyte H510M S2H | Gigabyte A520M DS3H |
| Brand | MSI | ASROCK | GIGABYTE | GIGABYTE |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | MSI PRO B660M-E DDR4 12th Gen M-ATX Motherboard MSI PRO B660M-E DDR4 motherboard Supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4600+(OC) MHz. LAN Manager automatically classifies and prioritizes the latency-sensitive applications, It will giving you the best online experience with low latency. With the premium layout and digital power design helps to support more cores and provide better performance, In this motherboard, Memory Boost featured with Advanced technology to deliver pure data signals for the best performance, stability and compatibility. MSI PRO B660M-E DDR4 Benefits It is also has Lightning Fast Experience: PCIe 4.0. The MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution, which comes with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, it also helps the motherboards to support the weight of heavy graphics cards. the motherboard has FROZR AI COOLING, it Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. This latest MSI PRO B660M-E DDR4 motherboard comes with 03 years warranty. MSI PRO B660M-E DDR4 Review The MicroATX-size B660M Mortar WIFI DDR4 includes everything most users need, just in a smaller package at a cheaper price. Features include two M.2 sockets, six SATA ports, a 20 Gbps USB Type-C port, capable power delivery, high-quality audio and more. All B660 motherboards use a PCIe 4.0 x16 slot for the graphics card. If you want PCIe 5.0 support on these MSI boards, you’ll have to move to the H670 Tomahawk WIFI DDR4. Although I would like to see PCIe 5.0 on the graphics side, the reality is that it simply isn’t needed and won’t be for at least another couple of generations. As far as performance goes, the B660M Mortar DDR4 did well overall, mixing it up with the other DDR4 boards we’ve tested lately. It was slower in the Procyon Office suite, but otherwise just as performant as the rest. Gaming results were also spot on. In short, there’s nothing out of the ordinary, nothing noticeably slower or faster than the rest. It ran our DDR4 3600 and DDR4 4000 sticks by enabling XMP, no additional tweaking required. The Mortar was able to extract everything out of the processor during at stock settings in our testing. Specifications Basic Information Supported CPU Supports 12th Gen Intel Core Processors, Pentium® Gold and Celeron Processors Processor socket LGA1700 Chipset Intel B660 Chipset Form Factor M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) Audio Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio Expansion Slots PCI 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From B660 chipset) Supports PCIe 3.0 x1 M.2 Socket 1x M.2 slot (Key M, from B660 chipset) 1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s 2242/ 2260/ 2280 storage devices Support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core™ processors Memory Type DDR4 Slots 2x DDR4 memory slots Supported Memory Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Dual-Channel mode non-ECC, un-buffered memory Intel® Extreme Memory Profile (XMP) Maximum Memory support up to 64GB Graphics Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Connector & Ports HDMI HDMI (BACK PANEL PORTS) Display Port (s) DisplayPort (BACK PANEL PORTS) VGA (s) Yes (BACK PANEL PORTS) USB (s) Intel B660 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) LAN Port (s) 1x Intel I219V 1Gbps LAN controller Internal I/O Ports 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connectorKeyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 TPM (Trusted Platform Module ) 1x TPM module connector Warranty Information Manufacturing Warranty 3 years warranty Others Special Features 4x EZ Debug LED .. | ASROCK H610M-H2/M.2 12th, 13th and 14th Gen mATX DDR4 MotherboardThe ASRock H610M-H2/M.2 is a reliable and feature-rich mATX motherboard designed to support Intel’s 14th, 13th, and 12th Generation Core processors. Built on the Intel H610 chipset, it strikes a balance between performance, affordability, and essential features, making it a practical choice for mainstream users, office PCs, and budget gaming builds. This motherboard supports DDR4 memory with dual-channel architecture, allowing users to install up to 64GB of RAM for smooth multitasking and stable performance. With one M.2 slot for NVMe PCIe SSDs, users can benefit from ultra-fast storage speeds, quicker boot times, and enhanced application responsiveness. Traditional SATA ports are also available for HDDs and SATA SSDs, ensuring flexible storage options. For connectivity, the ASRock H610M-H2/M.2 offers PCIe expansion slots, multiple USB ports, HDMI, VGA, and Gigabit LAN, providing essential options for displays, peripherals, and networking. Its micro-ATX form factor makes it compatible with a wide range of compact and mid-sized cases, giving builders more flexibility when assembling their systems. Durability and stability are also key strengths. ASRock integrates high-quality capacitors, solid power design, and full spike protection to safeguard the motherboard from unexpected power surges. The BIOS is user-friendly, making setup and customization easier even for first-time PC builders. Overall, the ASRock H610M-H2/M.2 delivers dependable performance and modern features at an accessible price. Whether you’re building a budget-friendly workstation, a compact office PC, or a gaming rig with room for future upgrades, this motherboard offers a solid foundation.Features of ASROCK H610M-H2/M.2 12th, 13th and 14th Gen mATX DDR4 MotherboardSupports Intel 14th, 13th, and 12th Gen Core processorIntel H610 chipset with mATX form factorDual-channel DDR4 memory support up to 64GBOne M.2 slot for NVMe PCIe SSDs + SATA ports for storage flexibilityPCIe slots for graphics cards and expansion cardsHDMI and VGA outputs for multi-display setupsGigabit LAN for stable wired networkingASRock full spike protection and solid build quality.. | Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard Gigabyte H510M S2H Motherboard supports 11th and 10th Gen Intel Core Series Processors. It features Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs and Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface. It comes with GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. The board comes with 4 Display Interfaces Support. It comes with high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. It features an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. It has 3 Years Warranty Specifications: Basic Information Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. Chipset Intel H510 Express Chipset BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 24.4cm x 21.0cm Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 3.0 standard.) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Memory Type Dual channel memory architecture Slots 2 x DDR4 DIMM Supported Memory 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules Maximum Mamory 64 GB (32 GB single DIMM capacity) Graphics Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. Support for up to 2 displays at the same time Connector & Ports HDMI 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz USB (s) Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header) LAN Port (s) Realtek GbE LAN chip (1 Gbit/100 Mbit) Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only. 4 x SATA 6Gb/s connectors Audio 3 x audio jacks Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper D-Sub (s) 1 x D-Sub port DVI-D (s) 1 x DVI-D port Warranty Information Manufacturing Warranty 3 years Others Special Features Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility .. | Specifications: Basic Information Supported CPU AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors Chipset AMD A520 BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm Expansion Slots PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Memory Type Dual-Channel Memory Architecture Slots 4 x DDR4 DIMM Supported Memory 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Mamory 128 GB (32 GB single DIMM capacity) Graphics Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 HzSupport for up to 3 displays at the same time Max Shared Memory 16 GB Connector & Ports HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz USB (s) CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit) Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz Warranty Information Manufacturing Warranty 3 Years Others Special Features Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Gigabyte A520M DS3H Ultra Durable Micro-ATX AMD AM4 Motherboard Get gaming-level performance and DisplayPort connectivity with the A520M DS3H AM4 Micro-ATX Motherboard from Gigabyte. Utilizing the AMD A520 chipset, this motherboard is designed for use with CPUs that support the AM4 socket. Install up to 128GB of dual-channel DDR4 RAM across four slots, with speeds up to 4733 MHz supported when overclocking. Storage drives can be installed using four SATA III connectors or an M.2 slot. A graphics card can be installed using the PCIe 3.0 x16 slot, while two PCIe 3.0 x1 slots offer room for further expansion. A rear I/O panel sports four USB 3.2 Gen 1 and two USB 2.0 ports, as well as a PS/2 combo port for connecting legacy mice or keyboards. DisplayPort, HDMI, and DVI-D outputs accommodate displays, while an RJ45 port supports Gigabit Ethernet. Three 3.5mm audio ports are also present on the rear panel. The Gigabyte A520M DS3H AM4 Micro-ATX Motherboard utilizes the Realtek ALC887 audio codec and supports Windows 10 64-bit operating systems. High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers. RGB FUSION 2.0 With A520 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations. With A520 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come. Gigabyte A520M DS3H FEATURES Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management HDMI, DVI-D, Display Ports for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Key Features Micro-ATX Form Factor AMD A520 Chipset AM4 Socket 4 x Dual-Channel DDR4-4733 (OC) Motherboard BIOS update for AMD Ryzen 5000 series processors From GIGABYTE’s website, download the latest compressed BIOS update file that matches your motherboard model from its product page. Uncompress the downloaded BIOS file, save it to your USB flash drive, and rename it to GIGABYTE.bin. Note: The USB flash drive must use the FAT32/16 file system. Insert the USB flash drive into the white USB port or BIOS Q Flash port on the back panel of your motherboard (USB port may not be labelled on all models, checking the user manual is recommended) Connect the power cables to the CPU 8 Pin power connector (connect either one if there are two) and mainboard 24 Pin power connector. Press the Q-Flash Plus button (location may vary by model) and the system will automatically search and match the BIOS file in the USB flash drive on the white USB port. The QFLED and the Q-Flash Plus button on the rear panel will flash during the BIOS matching and flashing process. Wait for 2-3 minutes and the QFLED will stop flashing when the BIOS flashing is complete. .. |
