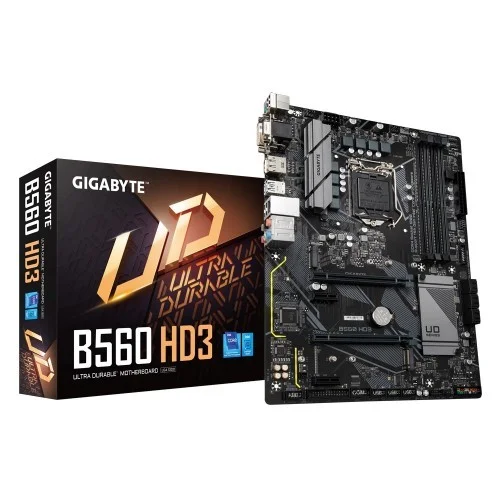

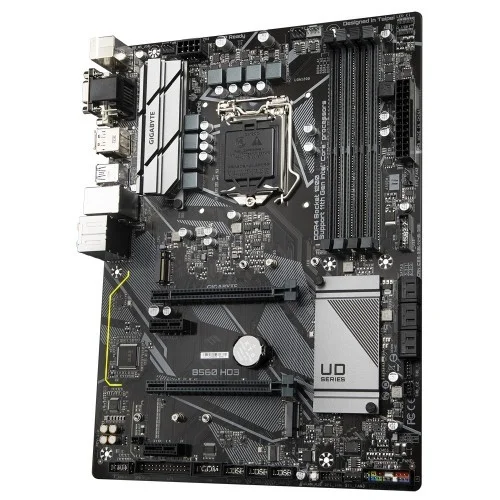

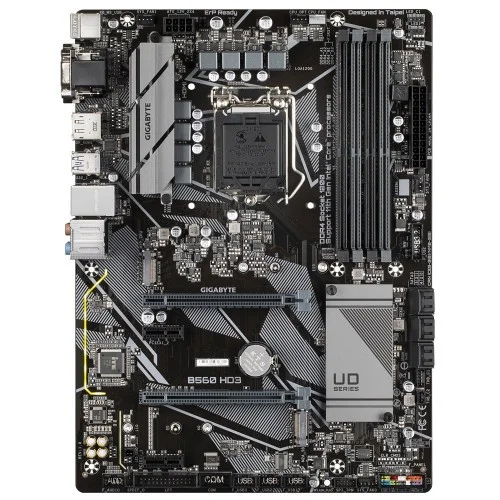

Gigabyte B560 HD3 Ultra Durable Intel 10th and 11th Gen ATX Motherboard

Gigabyte B560 HD3 Ultra Durable Intel 10th and 11th Gen ATX Motherboard

Gigabyte B560 HD3 Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors. It has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It features direct 6 + 2 Phases Digital VRM with Low RDS(on) MOSFETs. The board has Shielded Memory Routing for Better Memory Overclocking. It comes with a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. This board is powered by a Exclusive 8118 Gaming LAN with Bandwidth Management. It supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard It comes with Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting Devices.The board has pre-installed IO Shield for Easy and Quick Installation. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.

It has 3 Years Warranty.

Specifications:

Basic Information
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel B560 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 22.5cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
M.2 Socket	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: DDR4 2666/2400/2133 MHz memory modules Dual channel memory architecture ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time

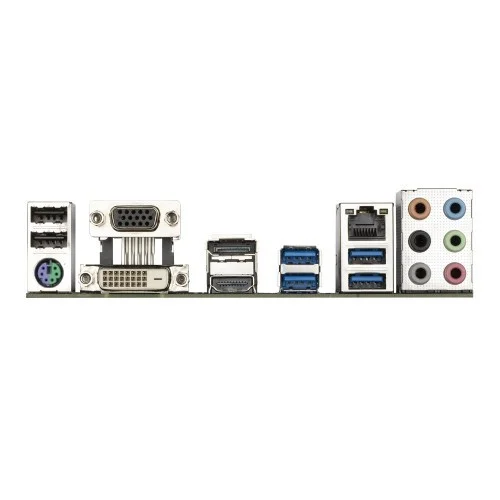

Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz
USB (s)	Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/ 1.1 ports available through the internal USB headers Chipset + USB 2.0 Hub: 2 x USB 2.0/ 1.1 ports on the back panel
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 8-pin ATX 12V power connector CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x S/PDIF Out header 2 x Thunderbolt add-in card connectors serial port header 1 x parallel port header Clear CMOS jumper 1 x Q-Flash Plus button
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty	3 year
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Q-Flash Plus Support for Q-Flash Support for Xpress Install
