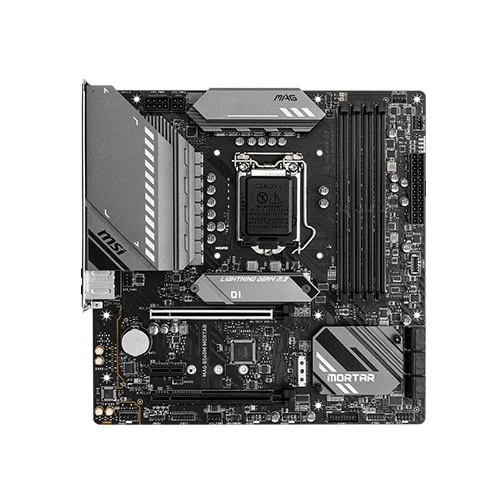

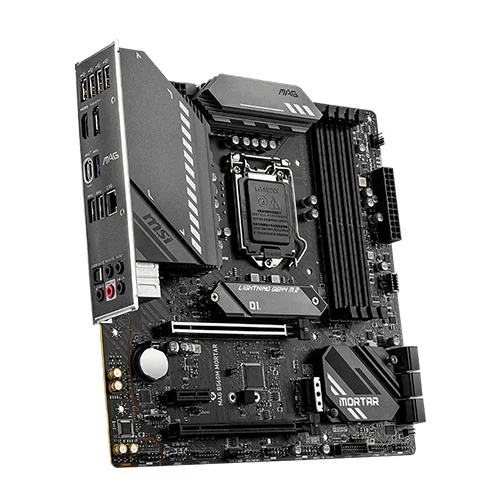

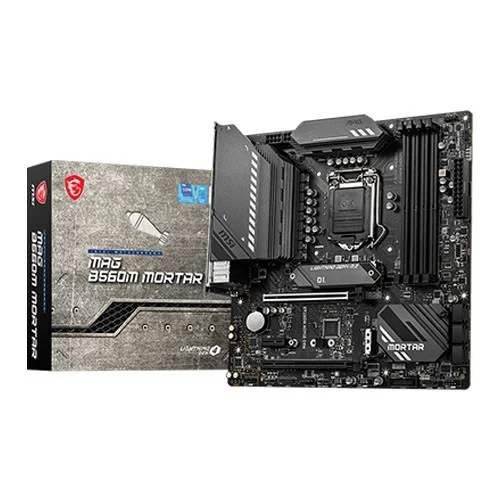

MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
Save: 6700৳ (38%)
Out Of Stock
MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
- Stock: Out Of Stock
- Model: MSI MAG B560M MORTAR
- Product id: 19076
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- • Supports 10th & 11th Gen Processors, Pentium Gold & Celeron Processors, LGA1200 • Supports DDR4 RAM up to 5066(OC) MHz • Supports 2-Way AMD CrossFire Technology • Extended Heatsink Design and M.2 Shield
Quick Compare
| Product Details | ||||
| Product | MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard | GIGABYTE A620M H AM5 Micro-ATX Motherboard | Asus PRIME A520M-A II AM4 micro ATX Motherboard | MSI PRO H610M-G DDR4 12th Gen Mirco-ATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | MSI MAG B560M MORTAR | A620M H | PRIME A520M-A II | PRO H610M-G |
| Brand | MSI | GIGABYTE | ASUS | MSI |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard comes with MSI lightning Gen 4 PCI-E which is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. It supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors (socket LGA1200). With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. It has a 3 years warranty. Specifications: Basic Information Supported CPU Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket Chipset Intel B560 Chipset Form Factor M-ATX Audio 7.1-Channel High Definition Audio Expansion Slots PCI 2x PCIe x16 slots Support x16/ x4-PCI E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU-PCI E3 (From B560 chipset) Support up to PCIe 3.01x PCIe 3.0 x1 slot PCI E2 (From B560 chipset)PCI E3 will be unavailable when installing M.2 SSD in M2 2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI E3 and set x2 for M2 2 in BIOS. M.2 Socket 2x M.2 slots (Key M) Memory Type DDR4 Slots 4 x DIMM slots Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Mamory Up to 128GB Graphics Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology Connector & Ports HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz Display Port (s) 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz USB (s) Intel B560 Chipset: 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector 4x USB 2.0 ports on the back panel USB Hubs ASM1074: 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel Hub-GL850G: 4x USB 2.0 ports are available through the internal USB 2.0 connectors LAN Port (s) 1x Realtek RTL8125B 2.5Gbps LAN controller Supported Storage 6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M)-M2 slot 1: Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices-M2 slot 2 (From B560 chipset): Supports up to PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning Controller Connector 1x TBT connector (Supports RTD3) Warranty Information Manufacturing Warranty 03 years Warranty .. | GIGABYTE A620M H AM5 Micro-ATX MotherboardGIGABYTE A620M H AM5 Micro-ATX Motherboard is a versatile and reliable motherboard designed for users seeking a robust platform for AMD Ryzen 7000, 8000, and 9000 Series processors. This motherboard features the AMD A620 chipset, which provides an affordable yet efficient solution for building a modern PC. The motherboard supports AMD Socket AM5, compatible with the latest Ryzen processors, including the Ryzen 7000, 8000, and 9000 series. This compatibility ensures that users can choose from a wide range of processors, from entry-level to high-end models, to suit their specific needs. The use of a licensed AMI UEFI BIOS allows for seamless updates and enhanced system stability. The GIGABYTE A620M H features a Micro ATX form factor, measuring 23.0cm x 22.5cm, making it a compact yet powerful choice for building a PC. Its smaller size allows for greater flexibility in terms of case compatibility while still offering a robust set of features. This form factor is ideal for users who want a compact build without sacrificing functionality. For memory, the motherboard supports DDR5 modules, which offer higher bandwidth and efficiency compared to the older DDR4 standard. It comes with two DIMM slots, supporting memory speeds up to 6400 MT/s (OC), and a total memory capacity of up to 96 GB. The support for non-ECC un-buffered DIMM and compatibility with AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) ensure that users can optimize their memory performance for various applications. The expansion slots include one PCI Express x16 slot, which supports PCIe 4.0, providing ample bandwidth for a graphics card or an NVMe SSD. The slot configuration is dependent on the processor used, with Ryzen 7000 Series Processors supporting PCIe 4.0 x16 mode, and Ryzen 8000 Series-Phoenix Processors supporting PCIe 4.0 x8 or x4 modes. There is also a PCIe 3.0 x1 slot, which can accommodate additional expansion cards. Storage options on the GIGABYTE A620M H are well catered for, with one M.2 connector supporting Socket 3, M key, type 2580 SSDs, and four SATA 6Gb/s connectors. This configuration allows users to set up multiple storage devices with various RAID configurations, including RAID 0, RAID 1, and RAID 10 for both NVMe SSDs and SATA storage devices. This versatility makes the motherboard suitable for both high-speed storage solutions and traditional hard drive setups. The motherboard is equipped with a Realtek® Audio CODEC, providing high-definition audio with support for up to 7.1-channel configurations. This ensures a high-quality audio experience for both gaming and multimedia applications. For networking, the board features a Realtek GbE LAN chip, which supports up to 1 Gbps speeds, ensuring stable and fast internet connectivity. The GIGABYTE A620M H offers a wide array of USB ports, including USB 3.2 Gen 1 and USB 2.0/1.1, catering to a variety of peripheral devices. Display outputs include one HDMI port and one DisplayPort, supporting up to 4K resolutions at high refresh rates, making it a suitable choice for users with high-resolution monitors. Additional features include support for GIGABYTE Control Center (GCC) for easy system management, and Q-Flash and Q-Flash Plus for easy BIOS updates. Bundled software like Norton Internet Security (OEM version) and LAN bandwidth management software adds value to the package. Overall, the GIGABYTE A620M H AM5 Micro-ATX Motherboard is a well-rounded choice for users looking to build a compact yet powerful PC with the latest AMD Ryzen processors. Its robust feature set, coupled with a compact form factor, makes it an excellent choice for both gamers and general users alike... | SpecificationSupported CPUAMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop ProcessorsChipsetA520BIOS128 Mb Flash ROM, UEFI AMI BIOSForm FactormicroATX24.4cm x 24.4cmAudioRealtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback"Audio Features- Audio Shielding- Premium Japanese audio capacitors- Dedicated audio PCB layersPCIAMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors1 x PCIe 3.0 x16 slot (supports x16 mode)AMD A520 Chipset2 x PCIe 3.0 x1 slotsM.2 SocketSupports 1 x M.2 slot and 4 x SATA 6Gb/s portsTypeDual Channel DDR4 Memory TechnologySlots2 x DIMMSupported Memory4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered MemoryMaximum Memory128GBGraphicsGraphics specifications may vary between CPU typesHDMI1 x HDMITM portDisplay Port (s)1 x DisplayPortD-Sub (s)1 x D-SubUSB (s)Rear USB: Total 6 ports4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB: Total 6 ports1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsLAN Port (s)1 x Realtek 1Gb EthernetASUS LANGuardSupported StorageAMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop ProcessorsM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)AMD A520 Chipset4 x SATA 6Gb/s portsSupport Raid 0, 1, 10Audio3 x Audio jacks Back Panel1 x Front Panel Audio header (AAFP)Internal I/O PortsFan and cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous2 x AURA Addressable Gen 2 header2 x AURA RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x 10-1 pin System Panel headerTPM (Trusted Platform Module )1 x SPI TPM headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- VRM heatsink designAURA Sync- AURA RGB headers- Addressable Gen 2 RGB headersBundled SoftwareASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3Manufacturing Warranty03-Year WarrantyAsus PRIME A520M-A II AM4 micro ATX MotherboardThe Asus PRIME A520M-A II is a micro ATX motherboard designed for the AMD A520 chipset, specifically for Ryzen AM4 processors. It features a range of connectivity options and support for various components to meet the needs of both daily users and DIY PC builders. The motherboard supports AMD AM4 socket processors, including the Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. This provides users with a wide range of options when it comes to choosing a compatible CPU. To ensure stable performance and prevent overheating, the Asus PRIME A520M-A II incorporates comprehensive cooling features. These include a VRM heatsink, PCH heatsink, and Fan Xpert 2+ technology, which helps to optimize fan speeds and keep the system cool during intense usage. The motherboard offers an M.2 slot, which supports high-speed NVMe storage for faster data transfer. It also includes 1 Gb Ethernet for reliable network connectivity and USB 3.2 Gen 1 Type-A ports for fast data transfer with compatible devices. The Asus PRIME A520M-A II is its supports for Aura Sync RGB lighting. The motherboard includes onboard RGB headers and addressable Gen 2 headers, allowing users to connect RGB LED strips and synchronize the lighting effects with other Aura Sync-capable hardware. The Asus PRIME A520M-A II is a well-engineered motherboard that provides a solid foundation for building a Ryzen-based system. With its power design, cooling solutions, and performance tuning options, it offers a range of features to enhance the overall computing experience... | MSI PRO H610M-G DDR4 12th Gen Mirco-ATX Motherboard The MSI PRO H610M-G DDR4 features LGA1700 socket Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. MSI PRO H610M-G DDR4 motherboard comes with MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. It is equipped with Realtek 8118 LAN a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. The MSI PRO H610M-G DDR4 features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub Ports for Multiple Displays. The MSI PRO H610M-G DDR4 motherboard comes with 3 years of warranty. Specification Basic Information Supported CPU Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 Chipset Intel H610 Chipset Form Factor mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) Audio Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio Expansion Slots PCI 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) Memory Type DDR4 Slots 2x DDR4 memory slots Supported Memory Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Maximum Memory Support up to 64GB Graphics Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Connector & Ports HDMI 1x HDMI 2.1 Display Port (s) 1x DisplayPort VGA (s) 1x VGA port USB (s) Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) LAN Port (s) 1x Intel I219V 1Gbps LAN controller Supported Storage 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors Internal I/O Ports POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connectorFAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connectorSYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connectorJUMPERS: 1x Clear CMOS jumperLED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED TPM (Trusted Platform Module ) 1x TPM module connector Warranty Information Manufacturing Warranty 3 years .. |
