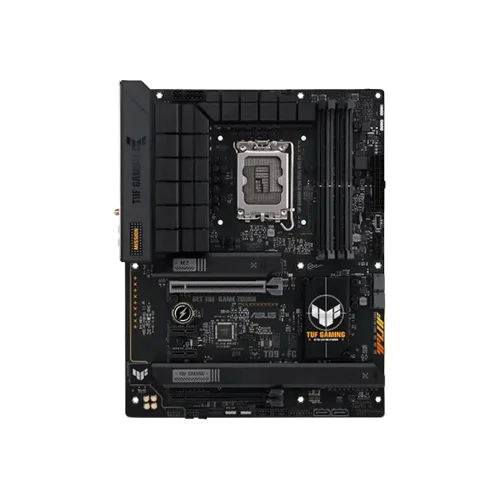

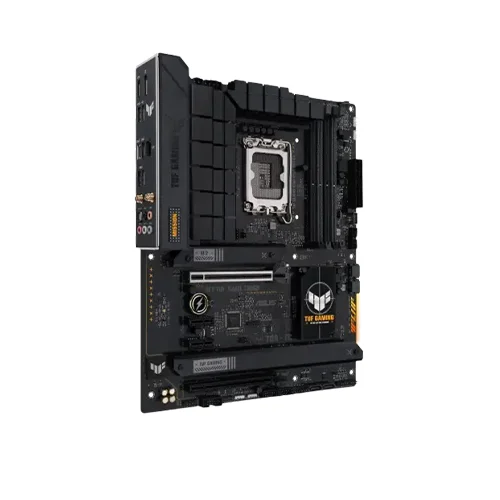

Asus TUF GAMING B760-PLUS WIFI D4 13th Gen ATX Motherboard

Name: Asus TUF GAMING B760-PLUS WIFI D4 13th Gen ATX Motherboard
Brand: ASUS
Availability: OutOfStock

-100 % Discontinued

Asus TUF GAMING B760-PLUS WIFI D4 13th Gen ATX Motherboard

Stock: Discontinued
Model: TUF GAMING B760-PLUS
Product id: 24497

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 4 x DIMM, Max. 128GB, DDR4
- Graphics Output: 1 x DisplayPort, 2 x HDMI
- : 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6

Motherboard
Supported CPU	Intel Socket LGA1700 For 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold And Celeron Processors Supports Intel Turbo Boost Technology 2.0 And Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
Memory	ECC, Un-Buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Graphics	1 X DisplayPort (Supports Max. 4K@60Hz As Specified In DisplayPort 1.4) 1 X HDMI Port (Supports 4K@60Hz As Specified In HDMI 2.1)
Slots	4 X DIMM
Supported Storage	Total Supports 3 X M.2 Slots And 4 X SATA 6Gb/S Ports Intel 13th & 12th Gen Processors M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) Intel B760 Chipset M.2_2 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 X4 Mode) M.2_3 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) 4 X SATA 6Gb/S Ports
Bluetooth	Bluetooth V5.2
LAN	1 X Intel 2.5Gb Ethernet TUF LANGuard
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - Supports Up To 24-Bit/192 KHz Playback Audio Features - Audio Shielding - Rear Optical S/PDIF Out Port - Premium Audio Capacitors - Dedicated Audio PCB Layers - Audio Cover
USB Port	Rear USB (Total 6 Ports) 1 X USB 3.2 Gen 2x2 Port (1 X USB Type-C) 1 X USB 3.2 Gen 2 Port (1 X Type-A) 3 X USB 3.2 Gen 1 Ports (3 X Type-A) 1 X USB 2.0 Port (1 X Type-A) Front USB (Total 7 Ports) 1 X USB 3.2 Gen 2 Connector (Supports USB Type-C) 1 X USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support 4 Additional USB 2.0 Ports

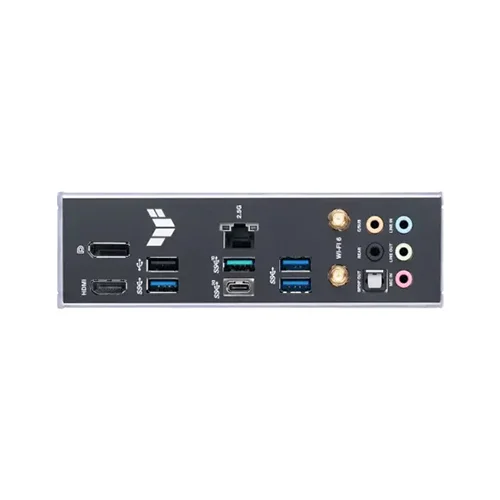

Internal I/O Ports	Fan And Cooling Related 1 X 4-Pin CPU Fan Header 1 X 4-Pin CPU OPT Fan Header 1 X 4-Pin AIO Pump Header 4 X 4-Pin Chassis Fan Headers Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector 1 X 4-Pin +12V Power Connector Storage Related 3 X M.2 Slots (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 2 Connector (Supports USB Type-C ) 1 X USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support 4 Additional USB 2.0 Ports Miscellaneous 3 X Addressable Gen 2 Headers 1 X Aura RGB Header 1 X Clear CMOS Header 1 X COM Port Header 1 X Front Panel Audio Header (AAFP) 1 X 20-3 Pin System Panel Header With Chassis Intrude Function 1 X Thunderbolt (USB4) Header Back Panel I/O Ports 1 X USB 3.2 Gen 2x2 Port (1 X USB Type-C) 1 X USB 3.2 Gen 2 Port (1 X Type-A) 3 X USB 3.2 Gen 1 Ports (3 X Type-A) 1 X USB 2.0 Port (1 X Type-A) 1 X DisplayPort 1 X HDMI Port 1 X Wi-Fi Module 1 X Realtek 2.5Gb Ethernet Port 5 X Audio Jacks 1 X Optical S/PDIF Out Port
WiFi	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 A/B/G/N/Ac/Ax) Supports 2.4/5GHz Frequency Band
Form Factor	ATX Form Factor 12 Inch X 9.6 Inch ( 30.5 Cm X 24.4 Cm )
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
HDMI	1 X HDMI Port
Warranty	3 Years Warranty

Asus TUF GAMING B760-PLUS WIFI D4 ATX Motherboard

The Asus TUF GAMING B760-PLUS WIFI D4 is a high-performance ATX motherboard designed for gaming enthusiasts and PC builders who demand top-tier features and durability. This motherboard is built to support both the 12th and 13th generation Intel Core processors, as well as Pentium Gold and Celeron processors, with its Intel LGA 1700 socket. The Asus TUF GAMING B760-PLUS WIFI D4 is its enhanced power solution, which includes 12+1 DrMOS power stages, a six-layer PCB, 8+4 ProCool sockets, military-grade TUF components, and Digi+ VRM. This ensures maximum durability and stability, even under heavy loads and overclocking. Comprehensive cooling is also a priority with this motherboard, as it features extended VRM heatsinks, M.2 heatsinks, PCH heatsinks, hybrid fan headers, and Fan Smart 4 technology to keep temperatures in check and maintain optimal performance during extended gaming sessions. The Asus TUF GAMING B760-PLUS WIFI D4 also offers the latest connectivity options, including a PCIe 5.0 slot, PCIe 4.0 M.2 slots for ultra-fast storage, USB 3.2 Gen 2x2 Type-C for lightning-fast data transfers, and a front panel header for USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) for versatile connectivity options. Designed for online gaming, this motherboard features Intel WiFi 6 and Realtek 2.5Gb Ethernet for lag-free and reliable internet connectivity, as well as TUF LANGuard for enhanced network protection against power surges and lightning strikes. This Asus TUF GAMING B760-PLUS WIFI D4 is its bi-directional AI noise cancellation, which reduces background noise from the microphone and audio output for crystal-clear communication during gaming or video conferencing.
