ASUS TUF GAMING B660M-PLUS D4 Intel 12th Gen Motherboard

Name: ASUS TUF GAMING B660M-PLUS D4 Intel 12th Gen Motherboard
Brand: ASUS
Availability: OutOfStock
Rating: 5 (1 reviews)

-100 % Discontinued

ASUS TUF GAMING B660M-PLUS D4 Intel 12th Gen Motherboard

Stock: Discontinued
Model: ASUS TUF GAMING B660M-PLUS
Product id: 22761

Based on 1 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- Comprehensive Cooling
- Latest Connectivity
- Made For Online Gaming
- Two-Way AI Noise-Cancelation

Memory
Supported Memory	5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Connector & Ports

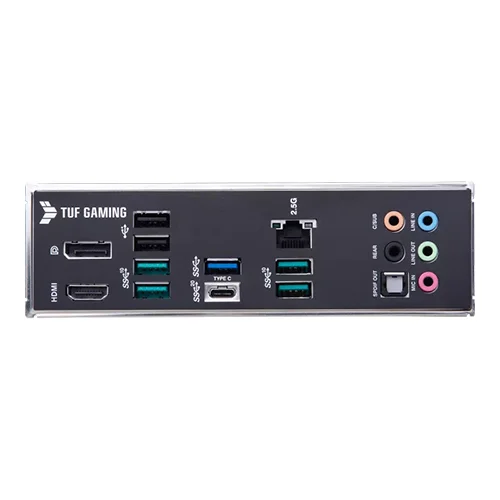

Internal I/O Ports	Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header

ASUS TUF GAMING B660M-PLUS D4 Intel 12th Gen Motherboard

ASUS TUF GAMING B660M-PLUS D4 Motherboard Supports with 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. This motherboard comes with Enhanced power solution, so that 10 power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability. It has Comprehensive cooling system- Enlarged VRM heatsink, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. Here, PCIe 4.0 slot, PCIe 4.0 M.2 slots, front USB 3.2 Gen 2 Type-C Latest connectivity are also availble. This 12th Gen motherboard specially made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard. In this motherboard, it also has Two-way AI Noise-Cancelation, which helps to reduce Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage, TUF GAMING B660 motherboards are the perfect foundation for your next high-core-count battle rig. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity. the new TUF GAMING B660 motherboards provide a high-performance gaming package with a long list of features with including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. the latest ASUS TUF Gaming B660M-E D4 motherboard.

ASUS TUF GAMING B660M-PLUS Review

One of the great things to come out of Computex was news of cheaper LGA 1700 motherboards via Intel’s soon-to-be-released B660 chipset. The fact that the PCH itself would be a few dollars cheaper was only the start of savings, as halving the number of pathways to the CPU would also reduce motherboard complexity and cost. Designers would also get half as many PCIe 4.0 and half as many PCIe 3.0 lanes controlled by the chipset, so that critics like us wouldn’t scold them for not taking advantage of free resources in a low-cost segment where PCB economization would have dictated this anyway. Heck, even the SATA and USB3 port count—which costs more to implement than simple PCB real estate—was cut in half. None of these cost-saving economizations are likely to repel most non-overclocking performance seekers: The consumer performance market often breaks into separate gaming and home workstation segments, where the later are more likely concerned by the chipset’s inability to split its CPU-based PCIe 4.0 x16 slot into four x4 pathways. That exclusion rules out the using certain multi-drive M.2 storage adapters on the upper x16 slot, including Asus’s own Hyper M.2 x16 Gen 4 Card. Gamers will put a graphics card there.

ASUS B660 SERIES MOTHERBOARD LIST IN BANGLADESH 2022

MOTHERBOARD MODEL	SIZE
ASUS TUF Gaming B660M-E D4 12th Gen Motherboard	mATX
ASUS TUF GAMING B660M-PLUS D4 Intel 12th Gen Motherboard	mATX
ASUS ROG STRIX B660-G GAMING WIFI Intel 12th Gen mATX Motherboard	mATX
ASUS ROG STRIX B660-A GAMING WIFI D4 12th Gen Intel ATX Motherboard	ATX
ASUS ROG Strix B660-I Gaming WIFI Intel 12th Gen Mini-ITX Motherboard	Mini ATX
ASUS ROG STRIX B660-F GAMING WIFI Intel 12th Gen DDR5 ATX Motherboard	ATX

Quick Compare

Product Details
Product	ASUS TUF GAMING B660M-PLUS D4 Intel 12th Gen Motherboard	Esonic H61FHL Motherboard	Starex ST-H61 Motherboard	HUANANZHI H61 M.2 Motherboard
Price	0৳ 0৳	~~4,000৳~~ 2,290৳	~~4,500৳~~ 4,450৳	~~5,000৳~~ 4,980৳
Model	ASUS TUF GAMING B660M-PLUS	Esonic H61FHL	Starex ST-H61	HUANANZHI H61
Brand	ASUS	Esonic	STAREX	HUANANZHI
Availability	Discontinued	In Stock	In Stock	In Stock
Rating	Based on 1 reviews.	Based on 0 reviews.	Based on 0 reviews.	Based on 0 reviews.
Summary	ASUS TUF GAMING B660M-PLUS D4 Intel 12th Gen Motherboard ASUS TUF GAMING B660M-PLUS D4 Motherboard Supports with 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. This motherboard comes with Enhanced power solution, so that 10 power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability. It has Comprehensive cooling system- Enlarged VRM heatsink, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. Here, PCIe 4.0 slot, PCIe 4.0 M.2 slots, front USB 3.2 Gen 2 Type-C Latest connectivity are also availble. This 12th Gen motherboard specially made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard. In this motherboard, it also has Two-way AI Noise-Cancelation, which helps to reduce Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage, TUF GAMING B660 motherboards are the perfect foundation for your next high-core-count battle rig. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity. the new TUF GAMING B660 motherboards provide a high-performance gaming package with a long list of features with including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. the latest ASUS TUF Gaming B660M-E D4 motherboard. ASUS TUF GAMING B660M-PLUS Review One of the great things to come out of Computex was news of cheaper LGA 1700 motherboards via Intel’s soon-to-be-released B660 chipset. The fact that the PCH itself would be a few dollars cheaper was only the start of savings, as halving the number of pathways to the CPU would also reduce motherboard complexity and cost. Designers would also get half as many PCIe 4.0 and half as many PCIe 3.0 lanes controlled by the chipset, so that critics like us wouldn’t scold them for not taking advantage of free resources in a low-cost segment where PCB economization would have dictated this anyway. Heck, even the SATA and USB3 port count—which costs more to implement than simple PCB real estate—was cut in half. None of these cost-saving economizations are likely to repel most non-overclocking performance seekers: The consumer performance market often breaks into separate gaming and home workstation segments, where the later are more likely concerned by the chipset’s inability to split its CPU-based PCIe 4.0 x16 slot into four x4 pathways. That exclusion rules out the using certain multi-drive M.2 storage adapters on the upper x16 slot, including Asus’s own Hyper M.2 x16 Gen 4 Card. Gamers will put a graphics card there. ASUS B660 SERIES MOTHERBOARD LIST IN BANGLADESH 2022 MOTHERBOARD MODEL SIZE ASUS TUF Gaming B660M-E D4 12th Gen Motherboard mATX ASUS TUF GAMING B660M-PLUS D4 Intel 12th Gen Motherboard mATX ASUS ROG STRIX B660-G GAMING WIFI Intel 12th Gen mATX Motherboard mATX ASUS ROG STRIX B660-A GAMING WIFI D4 12th Gen Intel ATX Motherboard ATX ASUS ROG Strix B660-I Gaming WIFI Intel 12th Gen Mini-ITX Motherboard Mini ATX ASUS ROG STRIX B660-F GAMING WIFI Intel 12th Gen DDR5 ATX Motherboard ATX ..	Specifications BASIC INFORMATION Brand Esonic H61-FEL MOTHERBOARD BASIC INFO Supported CPU Intel Core ( i3,i5,i7) 2nd & 3rd Gen \|\| Dual Core 2nd and 3rd Gen Chipset H61 Form Factor ATX MOTHERBOARD MEMORY INFO Slots 2 x DDR3 DIMM Slot Supported Memory Supports DDR3 1333 / 1600 Maximum Memory 16 GB CONNECTOR & PORTS (MB) LAN Port (s) LAN 10/100M Ethernet Supported Storage Serial ATA WARRANTY INFORMATION Warranty 1 Year Esonic H61FHL Motherboard When You want to build a desktop computer at cheap prices like 10000 takas or less you need to consider a motherboard that price range from 3800-4000 Taka. Here You Get an Esonic H61-FEL Motherboard with 1 Year Replacement Warranty. ..	Specification General Brand STAREX Model STAREX H61 Specification Chipset Intel H61 Data Rate DDR3 Number of Memory Slots 2 Motherboard Memory Technology DDR3 Supported Starex H61 Support for Intel@ Core™ i7 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® Processors Processors in the LGA1155 package L3 cache varies with CPU Front Side Bus FSB Support FSB 1333/1600 Max Memory Support Dual Channel DDR3 1333/1600 MHz Memory, 2 x DDR3 DIMM Memory Slot, Maximum Support up to 8 GB Memory Onboard Video Intel Extreme Graphics, On Board Graphic Max Onboard Audio HD Audio Onboard Lan 10/100 Controller ..	Specification Mainboard HUANANZHI H61 Platform Intel® H61, LGA1155 Memory 2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz, Supports non-ECC Memory, Dual Channel Memory Architecture Graphic Integrated Graphics Processor 1 x VGA port 1 x DVI-I port 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards Audio Realtek® ALC662 5.1-Channel, High Definition Audio CODEC LAN Realtek® RTL8105, 1 x 10/100 Mbit/s LAN Controller(s) Expansion Slots 1 x PCIe 3.0 x16 1 x PCIe x1 Storage 4 x SATA2.0 (3GB/s) port(s) Internal I/O Ports 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) Back I/O Ports 1 x PS/2 Keyboard and Mouse port 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s) Form Factor Micro ATX Form Factor; 21.5cm x 16.8cm Packing list 1 x I/O Shield, 1 x SATA Cable, 1 x Manual ..
