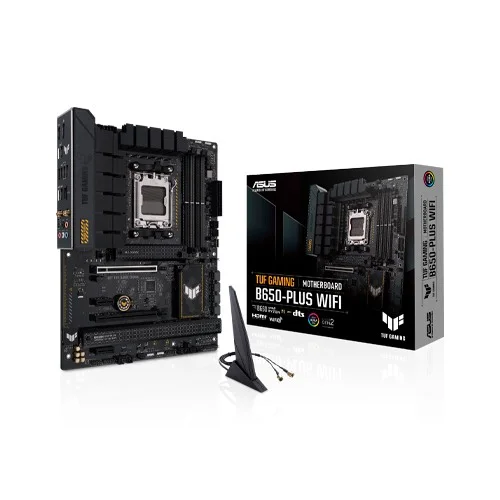

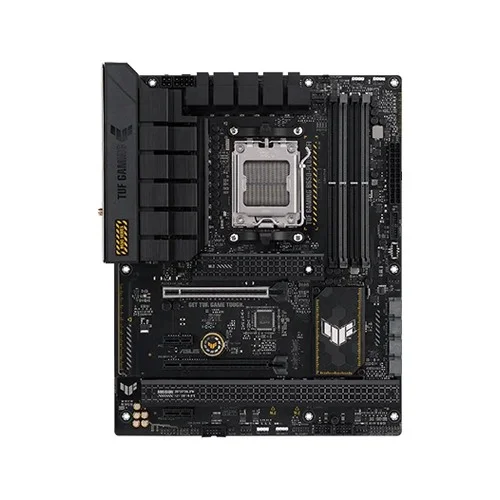

Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard

Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard

The Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard is a high-performance motherboard designed to meet the demanding requirements of gaming and content creation enthusiasts. Powered by AMD Socket AM5, this motherboard is tailor-made for the upcoming AMD Ryzen 7000 Series Desktop Processors, offering exceptional processing power and efficiency. One of its standout features is the support for DDR5 memory, offering blazing-fast speeds of up to 7600MHz (OC) and a maximum capacity of 128GB. With a Dual Channel Memory Architecture and support for AMD EXTended Profiles for Overclocking (EXPO), you can expect seamless multitasking and smoother gameplay. The motherboard boasts a robust set of expansion slots, including a PCIe 4.0/3.0 x16 slot for the CPU and an additional PCIe 4.0/3.0 x16 slot (x4 mode) from the AMD B650 chipset, along with two PCIe 4.0/3.0 x1 slots for various expansion needs. When it comes to audio, the Asus TUF GAMING B650-PLUS WIFI excels with Realtek 7.1 Surround Sound High Definition Audio CODEC, supporting features like jack detection, multi-streaming, and front panel jack retasking. It ensures crystal-clear sound quality and minimal interference thanks to audio shielding, dedicated PCB layers, and premium audio capacitors. Connectivity options are ample, with rear and front USB ports, including USB 3.2 Gen 2x2 and USB Type-C ports. The motherboard supports Wi-Fi 6 (802.11 A/B/G/N/Ac/Ax) and Bluetooth V5.2, ensuring fast and reliable wireless communication. ASUS has integrated a range of protective features, including DIGI+ VRM for precise power delivery, enhanced DRAM overcurrent protection, ESD guards, TUF LANGuard, and SafeSlot Core+ for reinforced PCIe slots. The M.2 heatsink and VRM heatsink design ensure optimal temperature control. Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard also offers user-friendly features like BIOS FlashBack™ Button, pre-mounted I/O shield, and Aura Sync compatibility for customizable RGB lighting. The motherboard's warranty covers it for three years, providing peace of mind for the long-term reliability of your system.

Asus TUF GAMING B650-PLUS WIFI Motherboard Features

• CPU and Chipset Compatibility: This motherboard is designed to support AMD Ryzen 7000 Series Desktop Processors with its AMD Socket AM5 and is powered by the AMD B650 chipset.
• Robust BIOS: Equipped with a 256 Mb Flash ROM and a UEFI AMI BIOS, it provides a stable and user-friendly interface for system configuration and updates.
• High-Quality Audio: The Realtek 7.1 Surround Sound High Definition Audio CODEC ensures a rich audio experience. It supports jack detection, multi-streaming, and front panel jack retasking, while offering up to 24-bit/192 KHz playback quality. Additional audio features like audio shielding, power pre-regulator, premium audio capacitors, dedicated audio PCB layers, and an audio cover enhance audio performance.
• Form Factor: This motherboard follows the ATX form factor, measuring 12 inches x 9.6 inches (30.5 cm x 24.4 cm), providing ample space for components and expansion.
• Expansion Slots: It offers versatile expansion options, including one PCIe 4.0/3.0 x16 slot for the CPU, one PCIe 4.0/3.0 x16 slot from the AMD B650 chipset (supports x4 mode), and two PCIe 4.0/3.0 x1 slots for additional add-on cards.
• DDR5 Memory Support: With four DDR5 DIMM slots, this motherboard can support memory speeds of up to 7600MHz (OC) and a maximum capacity of 128GB. It features Dual Channel Memory Architecture and supports AMD EXTended Profiles for overclocking (EXPO).
• Graphics Outputs: The motherboard features one DisplayPort and one HDMI port, providing flexible display options for your monitor setup.
• Operating System Compatibility: It is compatible with Windows 11 and Windows 10 64-Bit, ensuring smooth OS installation and operation.

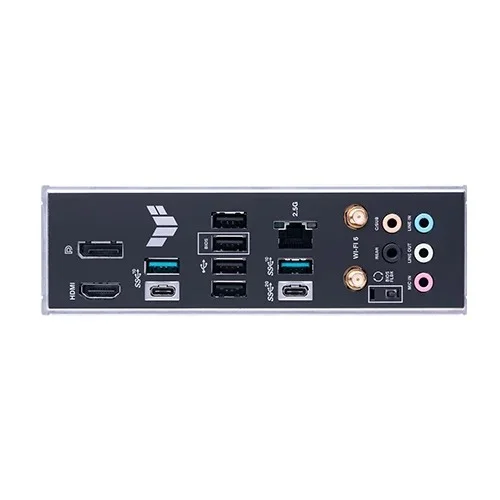

• USB Connectivity: The rear and front USB ports include USB 3.2 Gen 2x2, USB Type-C, USB 3.2 Gen 2, and USB 2.0 ports, ensuring fast data transfer and device connectivity.
• Storage Options: The motherboard supports a total of three M.2 slots (with PCIe 5.0 and PCIe 4.0 support) and four SATA 6Gb/s ports, providing ample storage options for your system.
• Wireless Connectivity: It features a Wi-Fi 6 module (802.11 A/B/G/N/Ac/Ax) and Bluetooth V5.2 for high-speed wireless communication.
• Internal I/O Ports: Multiple fan headers, power connectors, USB headers, and other internal ports cater to various system configuration needs.
• Special Features: Asus TUF PROTECTION ensures the motherboard's durability and reliability with features like DIGI+ VRM, enhanced DRAM overcurrent protection, ESD guards, TUF LANGuard, overvoltage protection, SafeSlot Core+, and stainless-steel back I/O. ASUS Q-Design adds user-friendly elements like M.2 Q-Latch, Q-DIMM, Q-LED indicators, and Q-Slot for convenient setup. The thermal solution includes M.2 heatsinks and VRM heatsink design. It also features Aura Sync compatibility for customizable RGB lighting.
