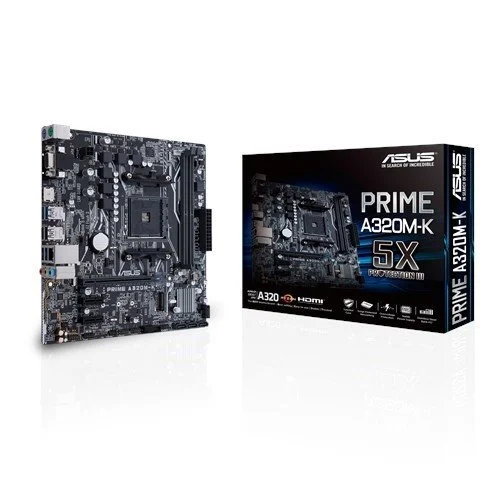

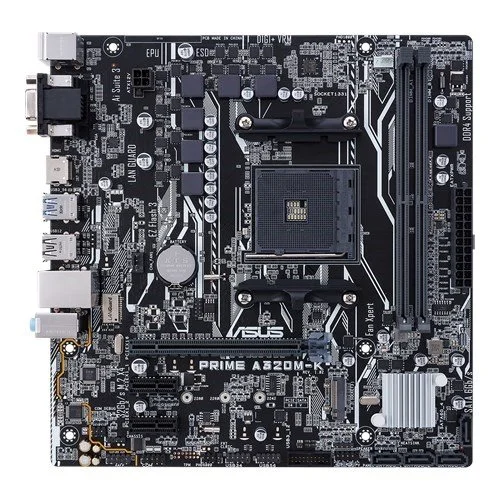

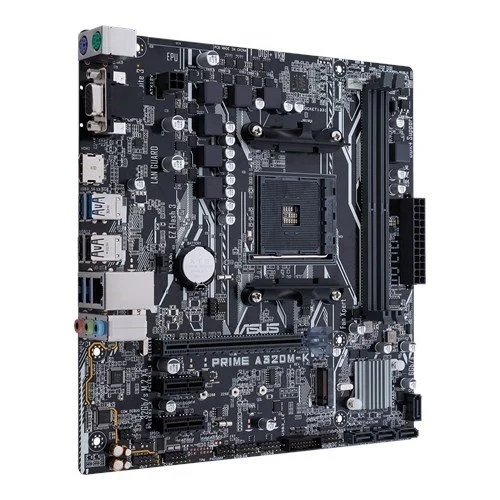

Asus Prime A320M-K AMD AM4 uATX Motherboard

Asus Prime A320M-K AMD AM4 uATX motherboard with LED lighting, DDR4 2400/2133 MHz Un-buffered Memory, 32Gb/s M.2, HDMI, SATA 6Gb/s, USB 3.0. 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for audio trace paths. Native M.2: Lightning-fast storage speeds. One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3.Fortified PCIe slot prevents damageSafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.Pumped-up throughput. 2.5x higher surge tolerance.ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.World-class circuit-protecting power designAn exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.Electrostatic discharge protectionASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.Tested to be compatible with 1,000+ CPUs, DDR4 memory modules, graphics cards and moreHaving the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that's the ASUS way.View supported devices and Qualified Vendor List for compatible memoryThe superior compatibility of Prime A320 series is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences.Top-to-bottom ReliabilityASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.Speed Up with Onboard M.2 Up to 32Gb/sWith x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gb/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.Instant front-panel USB 3.0 ExperienceWe've put USB 3.0 right where you need it - four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!One-stop access to innovative ASUS featuresASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy-to-use functionality, with no need to switch back and forth between different utilities.

Asus Prime A320M-K Feature

• 5X Protection III: Multiple hardware safeguards for all-round protection
• LED illumination: Lighting control for audio trace paths
• Native M.2: Lightning-fast storage speeds
• One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3

Asus Prime A320M-K Review

The Asus Prime A320M-K is a fantastic A320m motherboard that is one of the best values for what you get. The motherboard itself features quite a bit of technology that is strong, including USB 3.0, DDR4-3200 memory, and M.2 NVMe slot, all of which are better quality than you’d expect.The board also features LED illumination that is quite beautiful, making it the perfect choice for a display piece. The board will have some of the most reliable power to the CPU as well. Now, this isn’t going to be the best board to overclock with, but you can push the machine a bit.Asus protection a mOne of the best features on this board is that it comes with Asus’s 5x protection. With this protection, your motherboard comes with SafeSlot Core, Surge-Protected Networking, Overvoltage Protection, Stable Power Supply, and an integrated stainless-steel I/O plate. All of this is reinforced and protects your rig from static electricity.The Asus Prime A320M-K supports DDR4-3200 RAM, and it is one of the few boards to do so, especially within this price range. It also includes the Fan Xpert monitoring software that gives a bird’s eye view of the PWM/DC fans in the system. This keeps everything easy to control with one click, for any fan type.Another great feature here is that the audio components are shielded so that everything is protected against time, dust, heat, and more.The board comes with an M.2 slot for PCI NVMe SSDs for additional connectivity. There are four USB 3.0 ports at the back and a front-panel USB 3.0 header that supports an additional four ports, so connectivity is never going to be an issue.Finally, the BIOS settings are quite advanced here as well. You will be able to organize your settings, improve DRAM performance, use the fan software, and update to the latest versions of BIOS with just a few clicks.

Specification:

Basic Information
Supported CPU	AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores
Chipset	AMD A320
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Form Factor	mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Expansion Slots
PCI	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors- 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors - 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors- 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD A320 chipset- 2 x PCIe 2.0 x1
M.2 Socket	1 x M.2 Socket 3
Memory
Type	DDR4
Slots	2
Supported Memory	DDR4 2400/2133 MHz Un-buffered Memory
Maximum Mamory	32GB
Graphics
Graphics	Multi-VGA output support : HDMI/RGB ports Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory	2048 MB

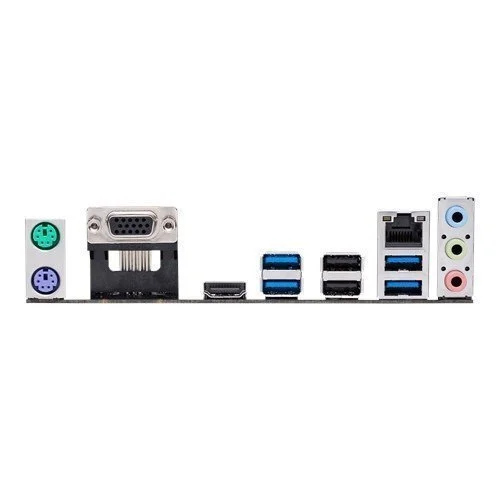

Connector & Ports
HDMI	1 x HDMI
USB (s)	4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0
LAN Port (s)	1 x LAN (RJ45) port(s)
Supported Storage	AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/ Athlon™ X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
Audio	Back I/O Ports 3 x Audio jack(s) 1 x Front panel audio connector(s) (AAFP)
Internal I/O Ports	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector
D-Sub (s)	1 x D-Sub
Warranty Information
Manufacturing Warranty	03 years
