Msi PRO Z690-A 12th Gen DDR4 Intel ATX Motherboard

Out Of Stock

Msi PRO Z690-A 12th Gen DDR4 Intel ATX Motherboard

Stock: Out Of Stock
Model: Msi PRO Z690-A
Product id: 21722

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Support for 12th generation Intel Core processors • DDR4 memory support, up to 5200 MHz (OC) • Frozr M.2 Shield slot to keep the SSD at the right temperature • Audio Boost 5 for superior sound quality

Key Features
Form Factor	ATX
Basic Information
Supported CPU	Pentium Gold, Celeron, 12th Gen
Chipset	Intel Z690
Memory
Ram Type	DDR4

Msi PRO Z690-A 12th Gen DDR4 Intel ATX Motherboard

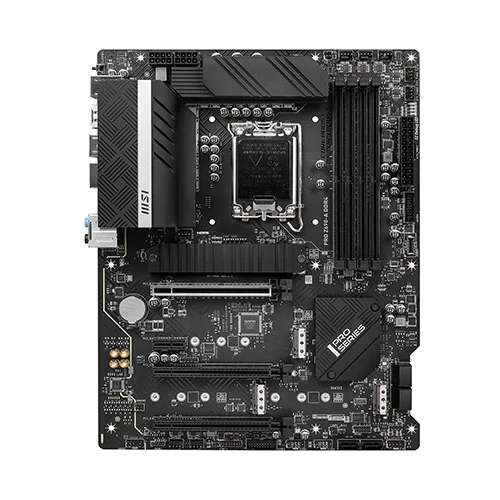

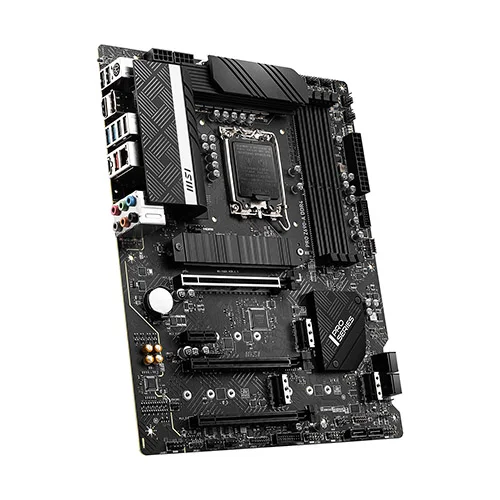

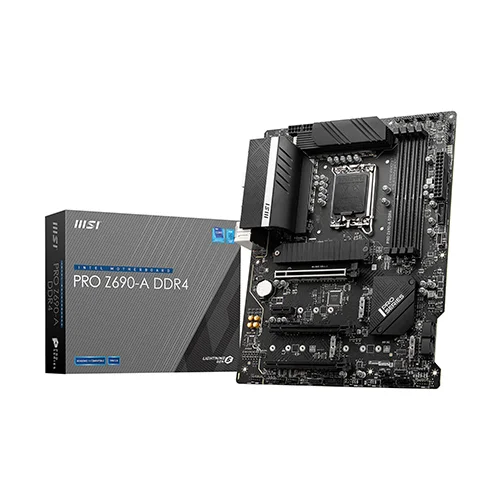

The PRO Z690-A DDR4 LGA 1700 ATX Motherboard from MSI. Featuring an LGA 1700 socket and Z690 chipset, this motherboard is compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors. Install up to 128GB of dual-channel RAM across four DDR4 memory slots, with speeds up to 5200 MHz supported via overclocking. Four M.2 and six SATA III connectors accommodate storage drives, while a PCIe 5.0 x16 slot, two PCIe 3.0 x16 slots, and a PCIe 3.0 x1 slot can be used to install various adapter cards. This board also supports AMD CrossFireX for multi-GPU setups. Connect accessories via a USB 3.2 Gen 2x2 Type-C port, plus one USB 3.2 Gen 2, two USB 3.2 Gen 1, and four USB 2.0 Type-A ports on the rear I/O panel. An RJ45 port is also present, supporting wired 2.5 Gigabit Ethernet connections. Connect to monitors via the HDMI or DisplayPort outputs. Internal headers provide connections for liquid or air cooling, dual CPU power, a TPM module, chassis intrusion alarm, and more. Relying on the Realtek ALC897 Audio Codec, the MSI PRO Z690-A DDR4 LGA 1700 ATX Motherboard supports 8-channel audio.

Fully Controllable in BIOS and Software

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, with automatic adjustment of fan speeds.

Optimized for Liquid Cooling

Designed to support popular all-in-one and customized water cooling solutions, this motherboard features a dedicated water pump PIN header supporting up to 2A and giving you full control of water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.

EZ M.2 Clip

Install an M.2 SSD quickly and effortlessly using the EZ M.2 clips.

SMT PCIe 5.0 Slot

A Surface Mount Technology (SMT) PCIe 5.0 slot diminishes interference and electrical noise, while also fully supporting the higher bandwidth and faster transfer speeds of PCIe 5.0 signal.

latency, quality of service, and optimized endurance.

Maximize USB Performance

Use the USB 3.2 Gen 2x2 Type-C port on the rear I/O panel to take advantage of transfer speeds up to 20 Gb/s.

Front-Panel USB Type-C Port

Use the internal header to connect a USB 3.2 Gen 2 Type-C port on the front panel.

Core Boost

Core Boost technology combines a streamlined layout with an optimized power design, allowing for faster and undistorted current delivery to the CPU for precise multi-core computing and overclocking.

Specification

Motherboard
Supported CPU	CPU Socket Type LGA 1700 * Dedicated LGA1700 mounting bracket is required. CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
Chipset	Intel Z690
Memory	Number of Memory Slots 4×288pin (DDR5) Memory Standard DDR4 5200+ (OC) Maximum Memory Supported 128GB Channel Supported Dual Channel
Graphics	Supported only by CPU with integrated graphic
Slots	PCI Express 5.0 x16 1 x PCI Express 5.0 x16 PCI Express 3.0 x16 2 x PCI Express 3.0 x16 PCI Express x1 1 x PCI Express 3.0 x1
Supported Storage	SATA 6Gb/s 6 x SATA 6Gb/s M.2 3 x M.2 Gen 4 x4 64Gbps slots 1 x M.2 Gen 3 x4 32Gbps slot
LAN	LAN Chipset Intel I225-V Max LAN Speed 10/100/1000/2500Mbps
Audio	Audio Chipset Realtek ALC897 Audio Channels 7.1 Channels

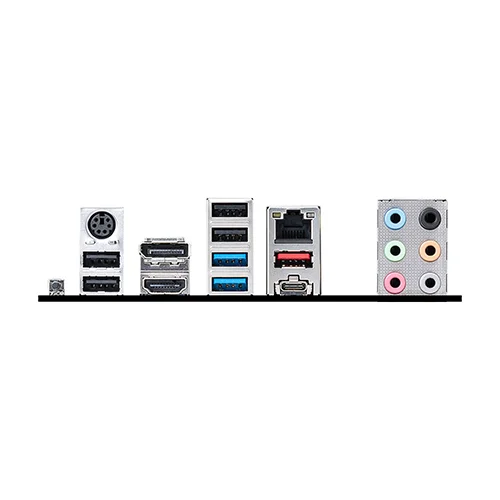

External I/O Ports	1 x DisplayPort 1 x HDMI 1 x Flash BIOS Button 1 x LAN (RJ45) 6 x Audio Jacks 1 x PS/2 Keyboard/Mouse Comb o 1 x USB 3.2 Gen 2x2 Type-C 1 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0/1.1
Form Factor	ATX
Warranty	03 Years
