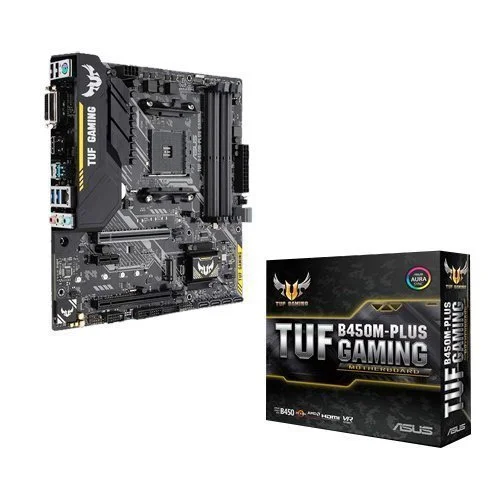

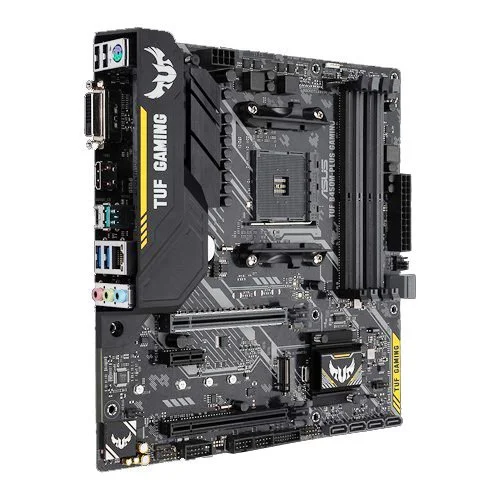

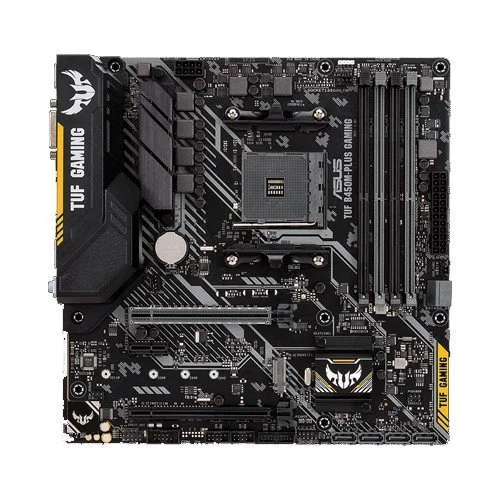

Asus TUF B450M-PLUS GAMING DDR4 AMD AM4 Motherboard

Name: Asus TUF B450M-PLUS GAMING DDR4 AMD AM4 Motherboard
Brand: ASUS
Availability: OutOfStock

Discontinued

Asus TUF B450M-PLUS GAMING DDR4 AMD AM4 Motherboard

Stock: Discontinued
Model: Asus TUF B450M-PLUS GAMING
Product id: 17080

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen • Military-grade TUF components • TUF Protection with SafeSlot • ASUS exclusive Aura Sync RGB lighting

Asus TUF B450M-PLUS GAMING DDR4 AMD AM4 Motherboard

This mobo is Powered by 2nd generation AMD Ryzen AM4 processors, the ASUS TUF B450M-Plus Gaming delivers 24/7 performance. Military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability. Its TUF Capacitors offer+20% temperature tolerance and 5X-longer lifespan. Lastly, TUF MOSFETS are military-grade MOSFETs with lower RDS(on). SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

This motherboard comes with 03 years warranty service.

Specification:

Basic Information
Supported CPU	AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors
Chipset	AMD B450
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search
Form Factor	mATX
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode, x8 mode, max at x4 mode), 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
M.2 Socket	1 x M.2 Socket 3 (type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Memory
Type	DDR4
Slots	4
Supported Memory	3466(O.3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHzC.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz
Maximum Mamory	64GB
Graphics
Graphics	Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

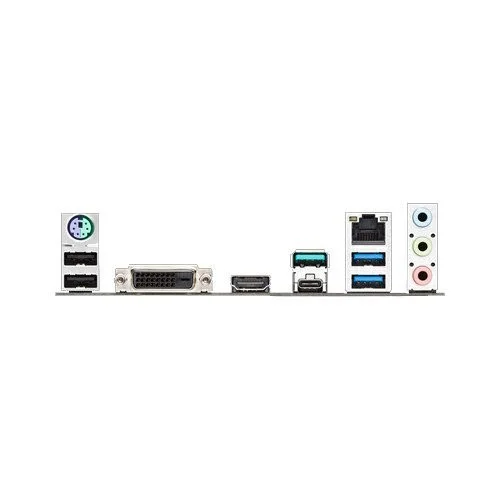

Connector & Ports
HDMI	1 x HDMI
USB (s)	1 x USB3.1 Gen 1 Type-C, 1 x USB3.1 Gen 2, 4 x USB3.1 Gen 1
LAN Port (s)	Realtek RTL8111H TUF LAN Guard
Supported Storage	AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 AMD Athlon with Radeon Vega Graphics Processors : - 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)1 AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen st Generation Processors : - 2 x SATA 6Gb/s port(s) AMD B450 chipset : - 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Audio	Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
Internal I/O Ports	1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header
DVI-D (s)	1 x DVI-D
Warranty Information
Manufacturing Warranty	03 Years Warranty
