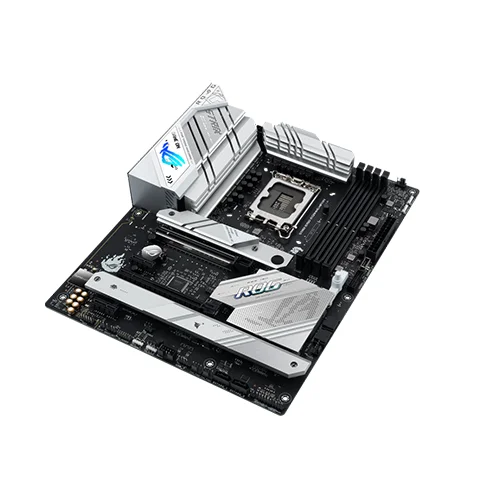

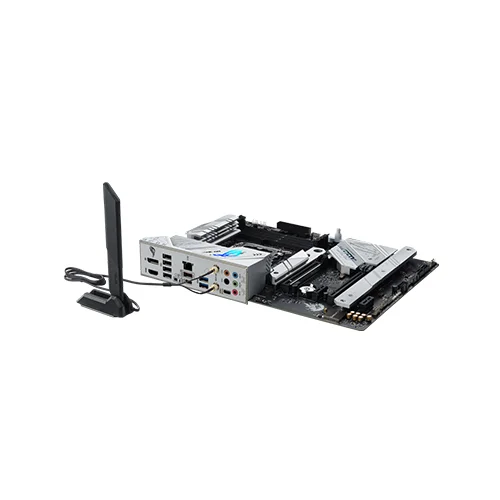

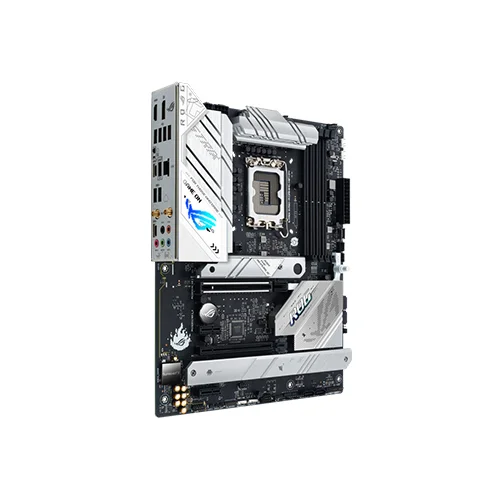

Asus ROG STRIX B760-A GAMING WIFI D4 13th Gen ATX Motherboard

Specification

Key Features
Supported CPU	Intel® Socket LGA1700 For 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0** * Refer To Www.Asus.Com For CPU Support List. ** Intel® Turbo Boost Max Technology 3.0 Support Depends On The CPU Types.
Chipset	Intel® B760 Chipset
Memory	4 X DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/ 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-Buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported Memory Types, Data Rate(Speed), And Number Of DRAM Modules Vary Depending On The CPU And Memory Configuration, For More Information Refer To Www.Asus.Com For Memory Support List.
Graphics	1 X DisplayPort** 1 X HDMI® Port*** * Graphics Specifications May Vary Between CPU Types. Please Refer To Www.Intel.Com For Any Updates. // Please Refer To AMD CPU Specifications. ** Supports Max. 4K@60Hz As Specified In DisplayPort 1.4 *** Supports 4K@60Hz As Specified In HDMI 2.1. **** VGA Resolution Support Depends On Processors' Or Graphic Cards' Resolution.
Slots	Intel® 13th & 12th Gen Processors 1 X PCIe 5.0 X16 Slot Intel® B760 Chipset 1 X PCIe 3.0 X16 Slot (Supports X4 Mode)* 2 X PCIe 3.0 X1 Slots* * PCIe X1(G3)_1 And PCIe X1(G3)_2 Slots Share Bandwidth With PCIe X16(G3). When PCIe X1(G3)_1 Or PCIe X1(G3)_2 Slot Is Operating, PCIe X16(G3) Will Only Supports X2 Mode. - To Ensure Compatibility Of The Device Installed, Please Refer To Https://Www.Asus.Com/Support/ For The List Of Supported Peripherals.
Supported Storage	Total Supports 3 X M.2 Slots And 4 X SATA 6Gb/S Ports* Intel® 13th & 12th Gen Processors M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) Intel® B760 Chipset M.2_2 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 X4 Mode) M.2_3 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) 4 X SATA 6Gb/S Ports * Intel® Rapid Storage Technology Supports SATA RAID 0/1/5/10.
Bluetooth	Bluetooth® V5.3
LAN	1 X Intel® 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance Sense For Front And Rear Headphone Outputs - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - High Quality 120 DB SNR Stereo Playback Output And 113 DB SNR Recording Input - Supports Up To 32-Bit/384 KHz Playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium Audio Capacitors - Dedicated Audio PCB Layers - Audio Cover *The Rear Panel Line Out Port Does Not Support Spatial Audio. If You Wish To Use Spatial Audio Make Sure To Connect Your Audio Output Device To The Audio Jack On The Front Panel Of Your Chassis.
USB Port	Rear USB (Total 9 Ports) 1 X USB 3.2 Gen 2x2 Port (1 X USB Type-C®) 1 X USB 3.2 Gen 2 Port (1 X Type-A) 3 X USB 3.2 Gen 1 Port (2 X Type-A, 1 X USB Type-C®) 4 X USB 2.0 Ports (4 X Type-A) Front USB (Total 6 Ports) 1 X USB 3.2 Gen 2 Connector (Supports USB Type-C®) 1 X USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports 1 X USB 2.0 Header And 1 X USB 2.0 5-1 Pin Header Support 3 Additional USB 2.0 Ports
Internal I/O Ports	Fan And Cooling Related 1 X 4-Pin CPU Fan Header 1 X 4-Pin CPU OPT Fan Header 1 X 4-Pin AIO Pump Header 4 X 4-Pin Chassis Fan Headers Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector 1 X 4-Pin +12V Power Connector Storage Related 3 X M.2 Slots (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 2 Connector (Supports USB Type-C® ) 1 X USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports 1 X USB 2.0 Header And 1 X USB 2.0 5-1 Pin Header Support 3 Additional USB 2.0 Ports Miscellaneous 3 X Addressable Gen 2 Headers 1 X Aura RGB Header 1 X Clear CMOS Header 1 X Front Panel Audio Header (AAFP) 1 X S/PDIF Out Header 1 X 20-5 Pin System Panel Header 1 X Thunderbolt™ (USB4®) Header
External I/O Ports	1 X USB 3.2 Gen 2x2 Port (1 X USB Type-C®) 1 X USB 3.2 Gen 2 Port (1 X Type-A) 3 X USB 3.2 Gen 1 Ports (2 X Type-A, 1 X USB Type-C®) 4 X USB 2.0 Ports (4 X Type-A) 1 X DisplayPort 1 X HDMI® Port 1 X Wi-Fi Module 1 X Intel® 2.5Gb Ethernet Port 5 X Audio Jacks 1 X BIOS FlashBack™ Button
WiFi	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 A/B/G/N/Ac/Ax) Supports 2.4/5/6GHz Frequency Band
Form Factor	ATX Form Factor 12 Inch X 9.6 Inch ( 30.5 Cm X 24.4 Cm )
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green]) - Q-Slot ASUS Thermal Solution - VRM Heatsink Design ASUS EZ DIY - BIOS FlashBack™ Button - BIOS FlashBack™ LED - CPU Socket Lever Protector - ProCool - Pre-Mounted I/O Shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB Header - Addressable Gen 2 Headers
HDMI	1 X HDMI® Port
Software Features	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 Days Free Trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner MyAsus Norton 360 For Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
Others	Manageability: WOL By PME Accessories: Cables 2 X SATA 6Gb/S Cables Additional Cooling Kit 1 X Thermal Pad For M.2 Miscellaneous 1 X ASUS Wi-Fi Moving Antennas 1 X Cable Ties Package 1 X M.2 Q-Latch Package 1 X ROG Key Chain 1 X ROG Strix Stickers 1 X ROG Strix Thank You Card 1 X M.2 Rubber Packages Documentation 1 X User Guide Operating System: Windows® 11, Windows® 10 64-Bit
Warranty	3 Years

Asus ROG STRIX B760-A GAMING WIFI D4 ATX Motherboard

The Asus ROG STRIX B760-A GAMING WIFI D4 Motherboard serves as the basis for your gaming-focused Computer. This motherboard, designed for use with Intel's 12th and 13th Generation CPUs, delivers greater system-wide capabilities by allowing you to add a diverse selection of components, making it perfect for gaming aficionados. Based on the Intel B760 chipset, the system includes an LGA1700 socket, four dual-channel DDR4 RAM slots, four SATA III ports, and three PCIe 4.0 M.2 interfaces, all of which work together to improve system performance. With one PCIe 5.0 x16, one PCIe 3.0 x16 (in x4 mode), and two PCIe 3.0 x1 slots, you can connect a choice of graphics and utility cards. USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports support a variety of peripherals, including keyboards, mice, external drives, and more. Bluetooth 5.3 technology allows items such as controllers and headphones to communicate wirelessly. Wi-Fi 6E (802.11ax) connection enables wireless networking or usage of the 2.5 Gigabit Ethernet connector, both of which are suited for competitive online gaming. Furthermore, the ROG STRIX B760-A GAMING WIFI D4 comes pre-installed with both Windows 10 and 11 (64-bit). You have USB 3.2 Gen 1 and Gen 2 connections, which are equipped with numerous connectors and headers designed to deliver power to external devices and have data transfer speeds of up to 5 and 10 Gb/s, respectively. The USB 3.2 Gen 2x2 supports data transmission rates of up to 20 Gb/s, allowing you to employ modern devices such as audio and video interfaces. UEFI BIOS allows you to manage your machine and enable overclocking. Advanced mode lets you fine-tune your system with a plethora of settings and choices, whilst EZ mode streamlines the experience. EZ Flash 3 allows you to upgrade your BIOS firmware to the most recent version by simply saving and uploading the file to a USB device. In the case of an update failure or corruption, the CrashFree BIOS 3 rescue mechanism restarts your system.
