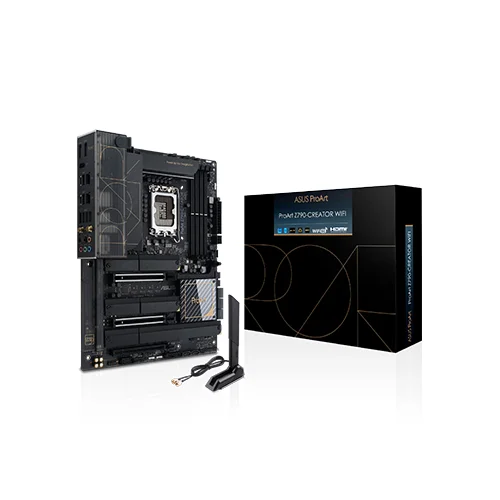

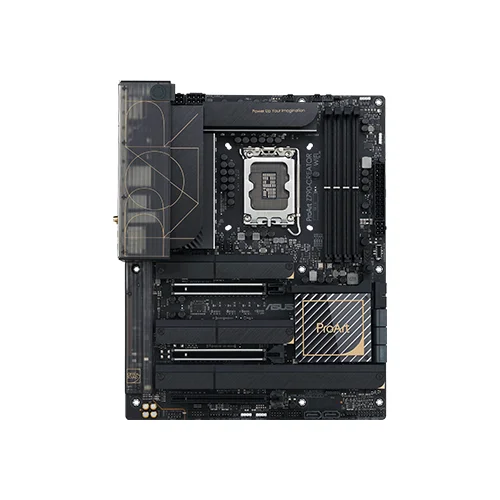

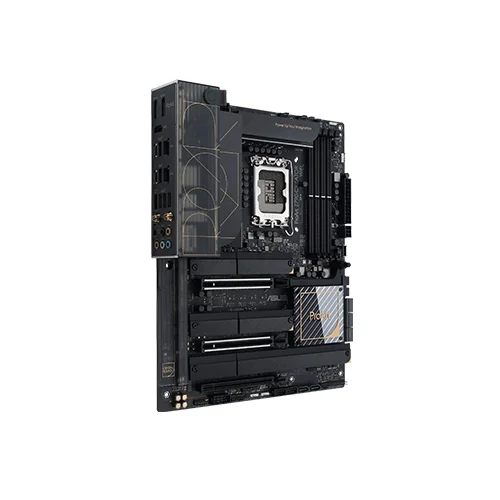

Asus ProArt Z790-CREATOR WIFI Intel 12th & 13th Gen ATX Motherboard

Specification

Technical Information
Supported CPU	Intel® Socket LGA1700 For 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0** * Refer To Www.Asus.Com For CPU Support List. ** Intel® Turbo Boost Max Technology 3.0 Support Depends On The CPU Types.
Chipset	Intel® Z790 Chipset
Memory	4 X DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-Buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Graphics	1 X HDMI® Port** 2 X Intel® Thunderbolt™ 4 Ports (USB Type-C®) Support DisplayPort*** And Thunderbolt™ Video Outputs**** * Graphics Specifications May Vary Between CPU Types. Please Refer To Www.Intel.Com For Any Updates. ** Support 4K@60Hz As Specified In HDMI 2.1. *** Support 8K@60Hz As Specified In DisplayPort 1.4. **** Output At TBT4_E1 And TBT4_E2, The USB Type-C® Ports Right Under RJ45 Ports, Each Requires A USB-C To DisplayPort Adapter cable. For Display Connection And Video Output Configuration Regarding DP IN And Intel® Thunderbolt™ 4 Ports, Please Refer To The User Manual For More Details. VGA Resolution Support Depends On Processors' Or Graphic Cards' Resolution.
Slots	Intel® 13th & 12th Gen Processors* 2 X PCIe 5.0 X16 Slots (Support X16 Or X8/X8 Modes) Intel® Z790 Chipset** 1 X PCIe 4.0 X16 Slot (Supports X4 Mode) * Please Check The PCIe Bifurcation Table On The Support Site (Https://Www.Asus.Com/Support/FAQ/1037507/).
Supported Storage	Total Supports 4 X M.2 Slots And 8 X SATA 6Gb/S Ports* Intel® 13th & 12th Gen Processors M.2_1 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 X4 Mode) Intel® Z790 Chipset M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) M.2_3 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 X4 Mode) M.2_4 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 & SATA Modes)** 8 X SATA 6Gb/S Ports** * Intel® Rapid Storage Technology Supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** M.2_4 Slot Shares Bandwidth With SATA6G_5~8. SATA6G5~8 Will Be Suspended Once Either A SATA Or NVMe Device Is Detected At M.2_4.
Bluetooth	Bluetooth® V5.3
LAN	1 X Marvell® AQtion 10Gb Ethernet 1 X Intel® 2.5Gb Ethernet ASUS LANGuard
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance Sense For Front And Rear Headphone Outputs - Internal Audio Amplifier To Enhance The Highest Quality Sound For Headphone And Speakers - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - High Quality 120 DB SNR Stereo Playback Output And 113 DB SNR Recording Input (Line-In) - Supports Up To 32-Bit/192 KHz Playback* Audio Features - Premium Audio Capacitors - Dedicated Audio PCB Layers - Audio Cover - Unique De-Pop Circuit * Due To Limitations In HDA Bandwidth, 32-Bit/192 KHz Is Not Supported For 7.1 Surround Sound Audio. ** A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.
USB Port	Rear USB (Total 8 Ports) 2 X Thunderbolt™ 4 Port(S) (2 X USB Type-C®) With Up To 5V/3A, 15W Charging Support 6 X USB 3.2 Gen 2 Port(S) (6 X Type-A) Front USB (Total 7 Ports) 1 X USB 3.2 Gen 2x2 Connector(S) (Support(S) USB Type-C® With 60W PD 3.0 / QC 4+) 1 X USB 3.2 Gen 1 Header(S) Support(S) Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Header(S) Support(S) Additional 4 USB 2.0 Ports
Internal I/O Ports	Fan And Cooling Related 1 X 4-Pin CPU Fan Header(S) 1 X 4-Pin CPU OPT Fan Header(S) 1 X 4-Pin AIO Pump Header(S) 5 X 4-Pin Chassis Fan Header(S) Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector 1 X 4-Pin +12V Power Connector 1 X 6-Pin +12V Power Connector Storage Related 4 X M.2 Slots (Key M) 8 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 2x2 (Support(S) USB Type-C®) 1 X USB 3.2 Gen 1 Header(S) Support(S) Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Header(S) Support(S) Additional 4 USB 2.0 Ports Miscellaneous 3 X Addressable Gen 2 Header(S) 1 X AURA RGB Header(S) 1 X Clear CMOS Header 1 X COM Port Header 1 X CPU Over Voltage Jumper 1 X Front Panel Audio Header (AAFP) 1 X M.2 Slot (Key E) 1 X SPI TPM Header (14-1pin) 1 X 20-3 Pin System Panel Header With Chassis Intrude Function 1 X Thermal Sensor Header

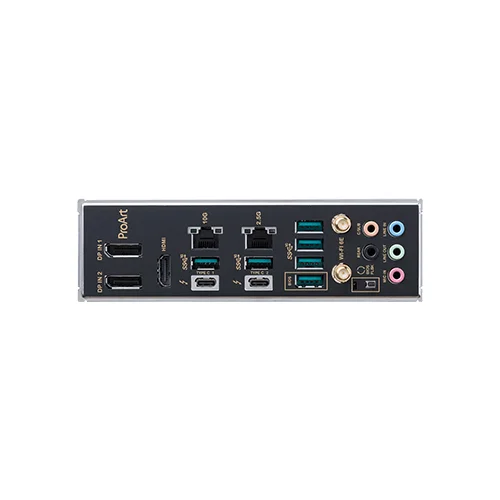

External I/O Ports	2 X Thunderbolt™ 4 USB Type-C® Port(S) 6 X USB 3.2 Gen 2 Port(S) (6 X Type-A) 2 X DisplayPort (Input Only) 1 X HDMI® Port 1 X ASUS Wi-Fi Module 1 X Marvell® AQtion 10Gb Ethernet Port 1 X Intel® 2.5Gb Ethernet Port 5 X Audio Jacks 1 X BIOS FlashBack™ Button
WiFi	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 A/B/G/N/Ac/Ax) Supports 2.4/5/6GHz Frequency Band
Form Factor	ATX Form Factor 12 Inch X 9.6 Inch ( 30.5 Cm X 24.4 Cm )
BIOS	256 Mb
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital Power Design With DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green]) - Q-Slot ASUS Thermal Solution - M.2 Heatsink - VRM Heatsink Design ASUS EZ DIY - BIOS FlashBack™ Button - BIOS FlashBack™ LED - Box Headers - ProCool II - Pre-Mounted I/O Shield AURA Sync - AURA RGB Header(S) - Addressable Gen 2 Header(S)
HDMI	1 X HDMI® Port
Software Features	ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 With AI Cooling II - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Easy Optimization With AI Overclocking - TPU - DIGI+ Power Control - Turbo App - PC Cleaner ASUS CPU-Z IT Management Software Supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86
Others	Manageability: WOL By PME, PXE Operating System: Windows® 11 64-Bit, Windows® 10 64-Bit
Warranty	3 Years

Asus ProArt Z790-CREATOR WIFI Intel 13th Gen ATX Motherboard

The Asus ProArt Z790-CREATOR WIFI is a feature-rich motherboard designed for 12th/13th gen Intel processors. It boasts the Intel Z790 chipset, supporting a range of Intel processors, including Core, Pentium Gold, and Celeron. With 4 DIMM slots, it can accommodate up to 128GB of DDR5 memory. The motherboard also supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 for enhanced performance. In terms of connectivity, it offers 1 HDMI port, 2 Intel Thunderbolt 4 ports (supporting DisplayPort and Thunderbolt video outputs), and 2 PCIe 5.0 x16 slots (x16 or x8/x8 modes) along with a PCIe 4.0 x16 slot (x4 mode). Storage options include 4 M.2 slots and 8 SATA 6Gb/s ports, supporting both PCIe 4.0 x4 and SATA modes. Networking features consist of 1 Marvell AQtion 10Gb Ethernet port, 1 Intel 2.5Gb Ethernet port, Wi-Fi 6E, and Bluetooth 5.3 support. For audio, the motherboard incorporates Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC with various enhancements. Lastly, the ProArt Z790-CREATOR WIFI motherboard offers a generous selection of USB ports, including Thunderbolt 4 and USB 3.2 Gen 2 ports, as well as multiple front USB ports. Overall, it's a high-performance and versatile motherboard suitable for professional and creative endeavors.
