ASUS PRIME Z790-P WIFI D4-CSM 13th Gen & 12th Gen ATX Motherboard

Specification

ASUS PRIME Z790-P WIFI D4-CSM 13th Gen & 12th Gen ATX Motherboard

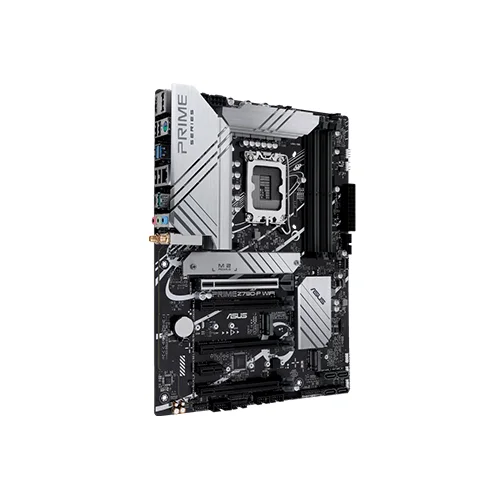

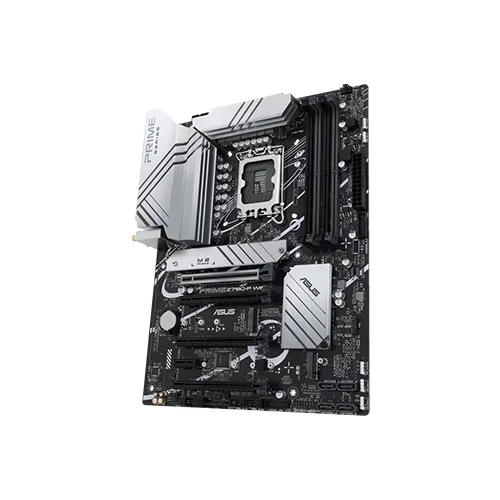

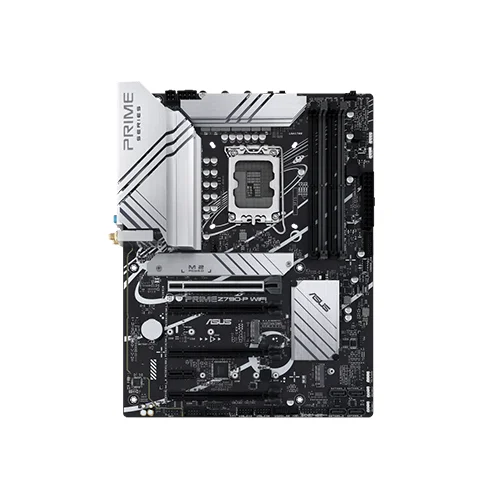

ASUS PRIME Z790-P WIFI D4-CSM Motherboard comes with LGA 1700 socket and Z790 chipset. It supports 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. The motherboard has 4x DDR4 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. ASUS PRIME Z790-P WIFI D4-CSM also supports 3 x M.2 slots and 4 x SATA 6Gb/s ports so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot supports resource-intensive graphics cards, while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slots offer a wide range of utility cards. A variety of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 back panel ports and internal headers serve a wide range of peripherals, from low-powered devices like mouse, keyboards, and controllers to resource-intensive devices like external drives and storage arrays. The ASUS PRIME Z790-P WIFI D4-CSM 13th Gen Motherboard's embedded Bluetooth 5.2 technology can also be used to provide a cable-free experience for wireless devices. Connect to your wireless network using Wi-Fi 6 (802.11ax), or utilize the included 2.5 Gigabit Ethernet port if a cable connection is preferred.

Enhanced Power Solution

The ASUS PRIME Z790-P WIFI D4-CSM delivers consistent power throughout the entire motherboard, preserving electrical volume whether you are performing simple chores or operating at full power during resource-demanding procedures. It is equipped with a 14+1 DrMOS, ProCool sockets, alloy chokes, and robust capacitors.

Comprehensive Cooling

The PRIME Z790-P WIFI D4-CSM motherboard has a large VRM heatsink for capacitors and chokes, as well as integrated M.2 heatsinks and backplates for greater thermal performance and throttling prevention. Fan Xpert 4 software and hybrid fan headers control fans and liquid cooling elements for increased cooling that may be customized.

Robust Connectivity

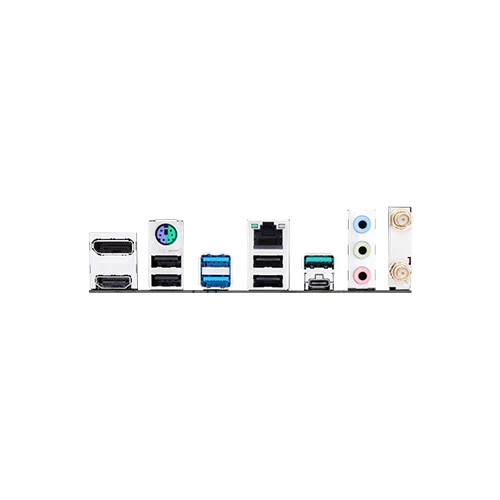

The ASUS PRIME Z790-P WIFI D4-CSM 13th Gen Motherboard provides reliable connectivity for your peripherals via the backplate and internal headers. USB-A and USB-C 3.2 Gen 1 and Gen 2 ports support data transfer rates of up to 5 and 10 Gb/s, respectively, making them appropriate for webcams, microphones, and external storage devices. The USB-C 3.2 Gen 2x2 connector supports data transfer rates of up to 20 Gb/s for resource-intensive devices such as storage arrays and audio interfaces. With an inbuilt Thunderbolt 4 header, you may increase your connectivity and use high-speed networking that supports rapid transfer speeds and Power Delivery technologies.
