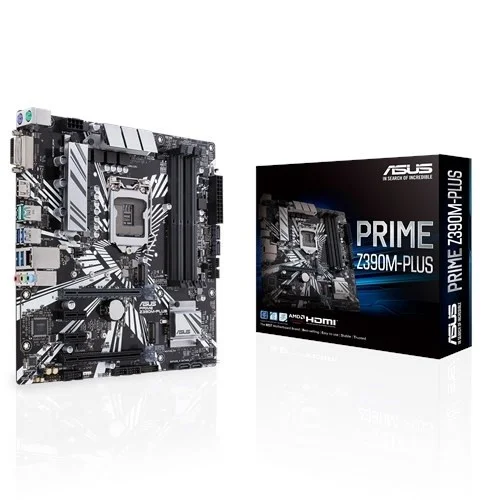

ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard

ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard
Out Of Stock
ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard
  • Stock: Out Of Stock
  • Model: ASUS PRIME Z390M-PLUS
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
  • •  CPU: 9th / 8th Generation Intel Processors •  Chipset: Intel Z390 •  4 x DDR4 DIMM •  4 x PCI Express slot

ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard

ASUS PRIME Z390M-PLUS 9th & 8th gen gaming motherboard compatible with Intel (Socket 1151) i3, i5, i7 & i9 processor. This ultrafast dual channel max DDR4 4266 MHz supported maximum 64GB memory and it has the capability of fast dual M.2 Socket 3, SATA 6Gb/s port and SB 3.1 Gen 2 interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of 4096 x 2160 @ 30 Hz for HDMI and 1920 x 1200 @ 60 Hz for DVI-D slots. This AMD CrossFireX™ Technology supported board hasASUS Quiet Thermal Solution and OptiMem II.

Specifications:

Basic Information
Supported CPUIntel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
ChipsetIntel® Z390
BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form FactormATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
PCI1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1
M.2 Socket1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Memory
Type4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
SlotsDual Channel Memory Architecture 4 x DIMM
Supported MemorySupports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Maximum Mamory64GB
Graphics
GraphicsMulti-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Connector & Ports
HDMI1 x HDMI
USB (s)Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board)
LAN Port (s)Intel® I219V, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard
Supported StorageIntel® Z390 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Internal I/O Ports2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Mono Out header 1 x RGB Header
D-Sub (s)1 X DVI-D
Warranty Information
Manufacturing Warranty3 Years Limited



Quick Compare

Product Details
ProductASUS PRIME Z390M-PLUS 9th Gen mATX MotherboardEsonic H61FHL MotherboardStarex ST-H61 MotherboardHUANANZHI H61 M.2 Motherboard
Image ASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard Esonic H61FHL Motherboard Starex ST-H61 Motherboard HUANANZHI H61 M.2 Motherboard
Price 4,000৳ 3,890৳ 4,500৳ 4,450৳ 5,000৳ 4,980৳
ModelASUS PRIME Z390M-PLUSEsonic H61FHLStarex ST-H61HUANANZHI H61
BrandEsonicSTAREXHUANANZHI
AvailabilityOut Of StockIn StockIn StockIn Stock
Rating
Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.
SummaryASUS PRIME Z390M-PLUS 9th Gen mATX Motherboard ASUS PRIME Z390M-PLUS 9th & 8th gen gaming motherboard compatible with Intel (Socket 1151) i3, i5, i7 & i9 processor. This ultrafast dual channel max DDR4 4266 MHz supported maximum 64GB memory and it has the capability of fast dual M.2 Socket 3, SATA 6Gb/s port and SB 3.1 Gen 2 interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of 4096 x 2160 @ 30 Hz for HDMI and 1920 x 1200 @ 60 Hz for DVI-D slots. This AMD CrossFireX™ Technology supported board hasASUS Quiet Thermal Solution and OptiMem II. Specifications:Basic InformationSupported CPU Intel® Socket 1151 for 9th / 8th Generation Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0Chipset Intel® Z390BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory informationForm Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )Expansion SlotsPCI 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4) * 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1M.2 Socket 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)MemoryType 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered MemorySlots Dual Channel Memory Architecture 4 x DIMMSupported Memory Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.Maximum Mamory 64GBGraphicsGraphics Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™Connector & PortsHDMI 1 x HDMIUSB (s) Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel® Z390 Chipset : 4 x USB 2.0 port(s) (4 at mid-board)LAN Port (s) Intel® I219V, 1 x Gigabit LAN Controller(s) Anti-surge LANGuardSupported Storage Intel® Z390 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Optane™ Memory Ready Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series CardAudio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelityInternal I/O Ports 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Mono Out header 1 x RGB HeaderD-Sub (s) 1 X DVI-DWarranty InformationManufacturing Warranty 3 Years Limited ..SpecificationsBASIC INFORMATIONBrand Esonic H61-FELMOTHERBOARD BASIC INFOSupported CPU Intel Core ( i3,i5,i7) 2nd & 3rd Gen || Dual Core 2nd and 3rd GenChipset H61Form Factor ATXMOTHERBOARD MEMORY INFOSlots 2 x DDR3 DIMM SlotSupported Memory Supports DDR3 1333 / 1600Maximum Memory 16 GBCONNECTOR & PORTS (MB)LAN Port (s) LAN 10/100M EthernetSupported Storage Serial ATAWARRANTY INFORMATIONWarranty 1 YearEsonic H61FHL Motherboard When You want to build a desktop computer at cheap prices like 10000 takas or less you need to consider a motherboard that price range from 3800-4000 Taka. Here You Get an Esonic H61-FEL Motherboard with 1 Year Replacement Warranty...SpecificationGeneralBrand STAREXModel STAREX H61SpecificationChipset Intel H61Data Rate DDR3Number of Memory Slots 2Motherboard Memory Technology DDR3Supported Starex H61 Support for Intel@ Core™ i7 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron®Processors Processors in the LGA1155 package L3 cache varies with CPUFront Side Bus FSB Support FSB 1333/1600Max Memory Support Dual Channel DDR3 1333/1600 MHz Memory, 2 x DDR3 DIMM Memory Slot, Maximum Support up to 8 GB MemoryOnboard Video Intel Extreme Graphics, On Board Graphic MaxOnboard Audio HD AudioOnboard Lan 10/100 Controller..SpecificationMainboard HUANANZHI H61Platform Intel® H61, LGA1155Memory 2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz, Supports non-ECC Memory, Dual Channel Memory ArchitectureGraphic Integrated Graphics Processor 1 x VGA port 1 x DVI-I port 1 x HDMI port Supports NVIDIA® and AMD® Graphics CardsAudio Realtek® ALC662 5.1-Channel, High Definition Audio CODECLAN Realtek® RTL8105, 1 x 10/100 Mbit/s LAN Controller(s)Expansion Slots 1 x PCIe 3.0 x16 1 x PCIe x1Storage 4 x SATA2.0 (3GB/s) port(s)Internal I/O Ports 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP)Back I/O Ports 1 x PS/2 Keyboard and Mouse port 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s)Form Factor Micro ATX Form Factor; 21.5cm x 16.8cmPacking list 1 x I/O Shield, 1 x SATA Cable, 1 x Manual..
