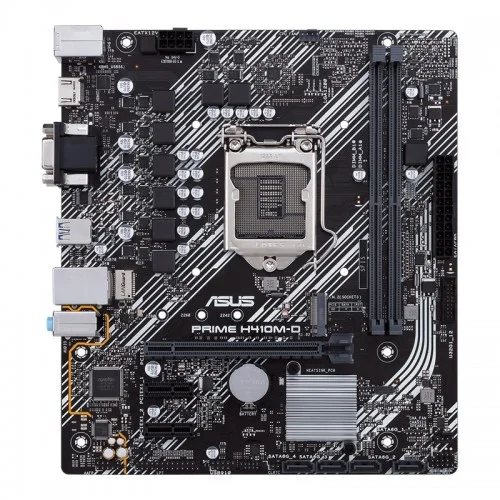

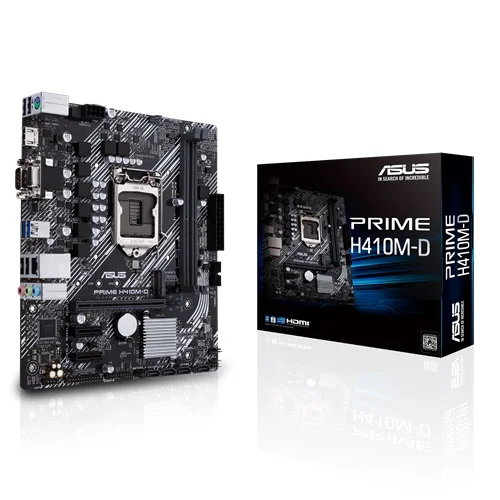

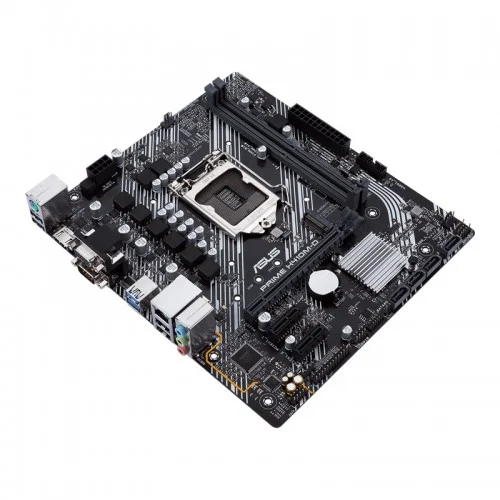

Asus Prime H410M-D Intel 10th Gen Micro ATX Motherboard

Name: Asus Prime H410M-D Intel 10th Gen Micro ATX Motherboard
Brand: ASUS
Availability: OutOfStock

Out Of Stock

Asus Prime H410M-D Intel 10th Gen Micro ATX Motherboard

Stock: Out Of Stock
Model: Prime H410M-D
Product id: 22461

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- Ready for 10th Gen Intel Core processors
- 5X Protection III
- 4 x SATA 6Gb/s port(s)
- M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A

Asus Prime H410M-D Intel 10th Gen Micro ATX Motherboard

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware. The Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard comes with Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors. It supports Intel 14 nm CPU. It features Dual Channel Memory Architecture and supports 2 x DIMM, Max. 64GB, DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory. Total supports 4x SATA 6Gb/s ports. It also has M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A for Ultrafast connectivity.

The Motherboard has 3 years of warranty.

Specifications

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H410
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Audio	Realtek ALC887/897 7.1-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 10th Gen Processors: 1 x PCIe 3.0 x16 (x16 mode) Intel H410 Chipset: 2 x PCIe 3.0 x1
M.2 Socket	1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
Memory
Type	Dual Channel Memory Architecture
Slots	2 x DIMM
Supported Memory	DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory	Max. 64GB
Graphics
Graphics	Integrated Graphics Processor
Connector & Ports
D-Sub (s)	1 x D-Sub
DVI-D (s)	1 x DVI-D
Supported Storage	4 x SATA 6Gb/s port(s)
Internal I/O Ports	1 x CPU Fan connector(s), 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s), 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector 1 x COM port header, 1 x Speaker connector
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	3 years
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - CrashFree BIOS 3 - EZ Flash 3 - UEFI BIOS EZ Mode
