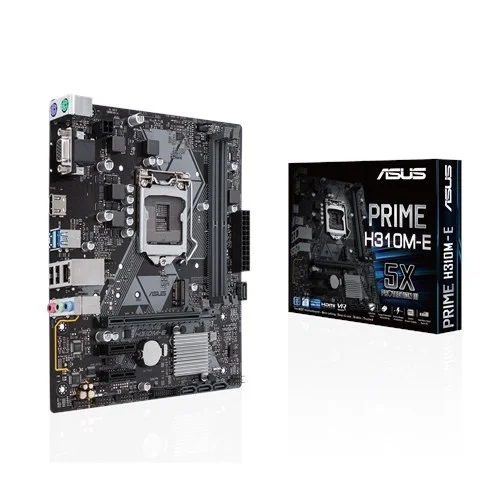

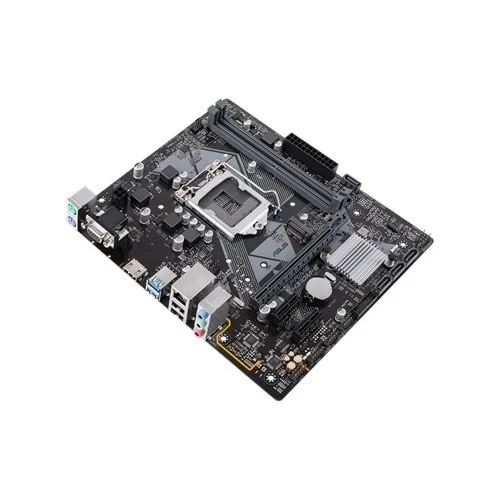

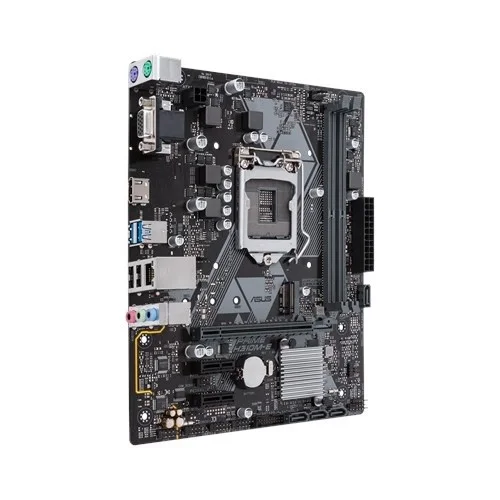

Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard

Out Of Stock

Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard

Stock: Out Of Stock
Model: Asus PRIME H310M-E
Product id: 18552

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• CPU: 8th Generation Intel Processors • Chipset: Intel H310 • 2 x DDR4 DIMM • 3 x PCI Express slot

Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard

Asus PRIME H310M-E mATX gaming motherboard compatible with Intel 8th gen (Socket 1151) i3, i5 & i7 processor. This LED lighting enabled board also supports dual channel DDR4 maximum 32GB memory and it has the capability of Ultrafast 32Gbps M.2 SATA 6Gbps and USB 3.1 Gen 1 interface. Focusing on the graphics, it will support Intel HD graphics with 1024MB shared graphics memory and having the maximum resolution of 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz for HDMI 1.4b & 1920 x 1200 @ 60 Hz for D-sub slots. This ASUS Fan Xpert motherboard has Multi-VGA output and Asus Optimem for stable performance.

Asus mainboard would be a perfect choice for PC built and buying at best price from Star Tech. Shop online your desired mainboard and have the delivery at your destination.

Specifications:

Basic Information
Supported CPU	Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® H310
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Form Factor	mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1
M.2 Socket	1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
Memory
Type	2 x DIMM
Slots	DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported Memory	DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Mamory	32GB
Graphics
Graphics	Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory	1024 MB
Connector & Ports
HDMI	1 x HDMI
USB (s)	Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
LAN Port (s)	Realtek® RTL8111H, 1 x Gigabit LAN
Supported Storage	Intel® H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1 4 x SATA 6Gb/s port(s), gray,
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Internal I/O Ports	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
D-Sub (s)	1 X D-sub
Warranty Information
Manufacturing Warranty	03 years
