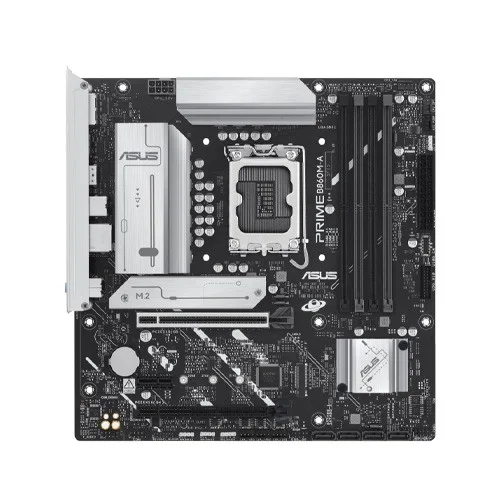

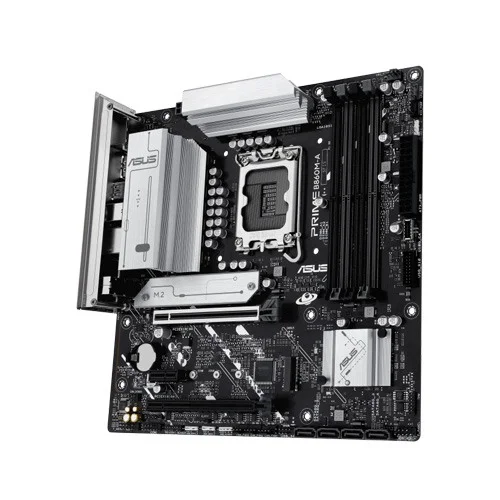

Asus Prime B860M-A LGA1851 Intel Motherboard

Name: Asus Prime B860M-A LGA1851 Intel Motherboard
Brand: ASUS
Availability: OutOfStock

Up Coming

Asus Prime B860M-A LGA1851 Intel Motherboard

Stock: Up Coming
Model: Prime B860M-A
Product id: 27995

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports Intel Core Ultra Processors
Up to 256GB DDR5 memory (OC)
PCIe 5.0 and PCIe 4.0 slots
Wi-Fi 6E & Bluetooth 5.3 connectivity

Basic Information
Supported CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset	Intel® B860 Chipset
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor	9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Memory
Slots	Intel® Core™ Ultra Processors(series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset* 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Supported Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Graphics
Graphics	2 x DisplayPort 1 x HDMI™ port* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. ****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Connector & Ports
USB (s)	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)** Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A *USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel®B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
Software
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Warranty	3 Years

Asus Prime B860M-A LGA1851 Intel Motherboard

The Asus Prime B860M-A LGA1851 Intel Motherboard is a high-performance micro-ATX motherboard designed for gamers and PC enthusiasts. It is built to support the latest Intel Core Ultra Processors (Series 2), offering enhanced processing power and improved efficiency for all your computing needs. Equipped with the Intel B860 chipset, this motherboard is designed to ensure smooth multitasking and robust performance in demanding tasks like gaming, content creation, and more.The Asus Prime B860M-A supports up to 256GB of DDR5 memory across 4 DIMM slots, with speeds reaching up to 8666+ MT/s (OC), providing excellent memory bandwidth and responsiveness. The motherboard also supports Intel Extreme Memory Profile (XMP) for easy overclocking and enhanced memory performance. Its dual-channel memory architecture ensures that your system can handle multiple applications simultaneously without lag.For graphics, the motherboard offers 2 x DisplayPort and 1 x HDMI port, supporting up to 4K resolution at 60Hz, making it an ideal choice for users who require high-quality visuals. The inclusion of PCIe 5.0 and PCIe 4.0 expansion slots ensures that you can install high-speed storage devices and top-of-the-line graphics cards, future-proofing your PC for upcoming technology.Connectivity is made easy with Wi-Fi 6E and Bluetooth 5.3, allowing for seamless wireless communication. Additional features include Realtek 2.5Gb Ethernet, USB 20Gbps Type-C, and Aura Sync for customizable RGB lighting. Designed with ASUS 5X Protection III for durability and reliability, the motherboard ensures long-term stability.With support for Windows 10/11, the Asus Prime B860M-A is an ideal choice for those seeking performance, stability, and future-ready technology in their PC build.

Features

Intel Core Ultra Processor Support: Compatible with Intel® Core™ Ultra Processors (Series 2) for optimal performance.
High-Speed Memory Support: 4 x DIMM slots supporting up to 256GB DDR5 memory with speeds up to 8666+ MT/s (OC).
PCIe 5.0 and 4.0 Expansion Slots: Future-proof your system with high-speed PCIe 5.0 x16 and PCIe 4.0 slots.
Wi-Fi 6E & Bluetooth 5.3: Seamless wireless connectivity for faster speeds and stable connections.
4K Graphics Support: 2 x DisplayPort and 1 x HDMI for up to 4K at 60Hz output.
Aura Sync RGB: Customize your system’s RGB lighting with Aura Sync support for a personalized look.
