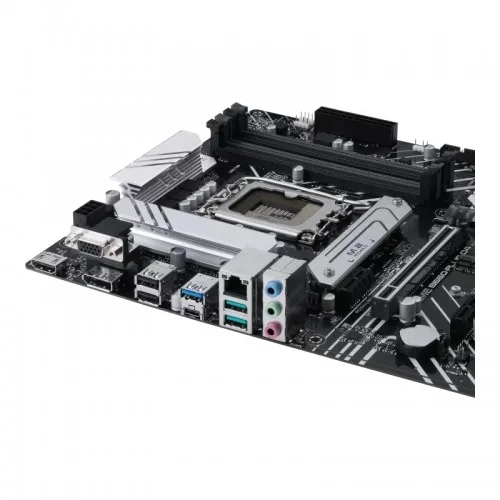

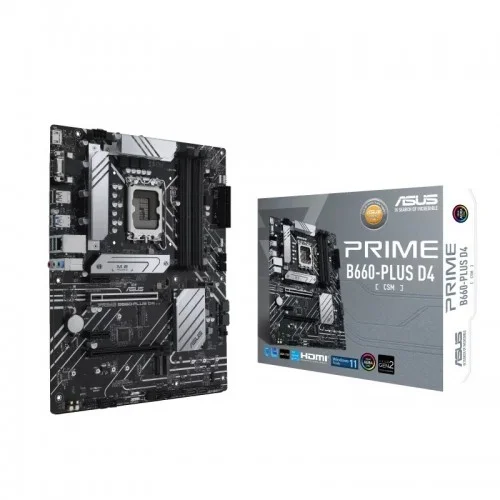

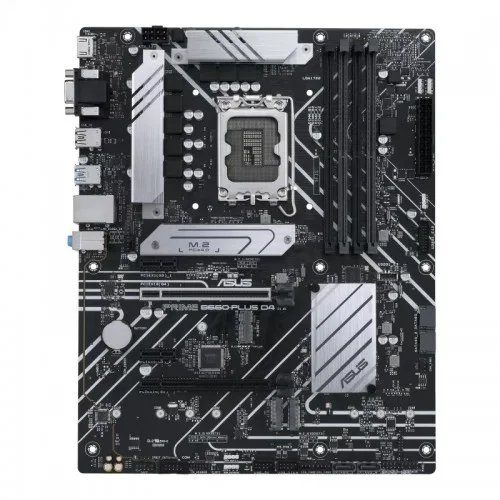

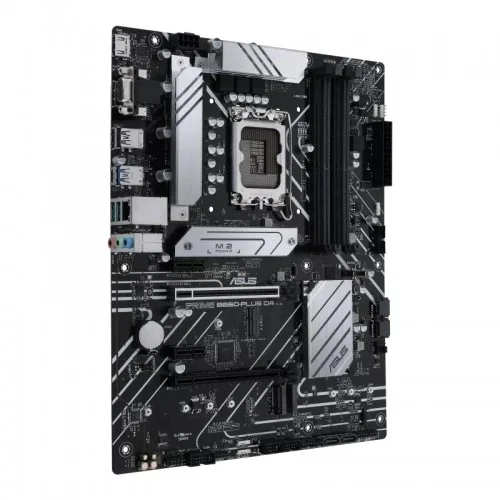

ASUS Prime B660-PLUS D4 12th Gen ATX Motherboard

Name: ASUS Prime B660-PLUS D4 12th Gen ATX Motherboard
Brand: ASUS
Availability: OutOfStock

-100 % Discontinued

ASUS Prime B660-PLUS D4 12th Gen ATX Motherboard

Stock: Discontinued
Model: Prime B660-PLUS D4
Product id: 23277

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

- Supports 12th Gen Intel Core Processors
- Ultrafast connectivity
- Comprehensive cooling
- ASUS OptiMem

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Key Features
Form Factor	ATX
Basic Information
Supported CPU	12th Gen
Chipset	Intel B660
Memory
Ram Type	DDR4

ASUS Prime B660-PLUS D4 12th Gen ATX Motherboard

The ASUS Prime B660-PLUS has an Intel LGA 1700 socket and is compatible with 12th generation Intel CPUs. ASUS Prime series motherboards are skillfully designed to maximize the performance of 12th Generation Intel CPUs. The Prime B660, with its strong power architecture, complete cooling solutions, and intelligent tuning choices, offers users and PC DIY builders a variety of performance tweaking options through straightforward software and firmware features. The networking on this motherboard is ultrafast. There are three M.2 slots, three PCIe 4.0 slots, a rear USB 3.2 Gen 2x2 Type-C, a front USB 3.2 Gen 1 Type-C, Realtek 2.5Gb Ethernet, and Thunderbolt 4 header support. It features an extensively cooling system. The VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ are all included. The latest Intel CPUs now have free access to memory bandwidth thanks to changes to the motherboard's trace routing. ASUS OptiMem technology organizes memory signal routes meticulously across several PCB layers to eliminate vias and includes shielding zones that dramatically reduce crosstalk. The advantages of ASUS OptiMem include improved memory stability and compatibility, shorter memory latencies at equivalent voltages, and increased memory frequency margin. Synopsys HSPICE simulation software was used to evaluate motherboards using OptiMem technology.

Performance

The Prime B660 series is designed to support the extra cores and enhanced bandwidth of 12th Generation Intel® CPUs. ASUS B660 motherboards have all of the essentials for increasing everyday productivity, ensuring that your system is ready for action with reliable power, smart cooling, and versatile transfer choices. Stable electricity is required to get every last bit of performance from Intel's 12th Generation CPUs. The Prime B660-PLUS D4 is designed to meet the needs of these high-core-count CPUs. The Prime B660-PLUS D4 includes Thunderbolt 4 capability through an integrated header. With the newest Intel-certified ASUS ThunderboltEX 4 add-on board, it is possible to achieve bi-directional speeds of up to 40 Gbps over a single cable. This card also features a daisy-chain function for multi-screen connectivity and can handle up to an 8K resolution panel. It can also deliver up to 100 watts of electricity to fast-charge gadgets. The ASUS Prime B660-PLUS D4 12th Gen ATX Motherboard comes with a 03-year warranty.

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 12th Gen Intel Core Pentium Gold and Celeron Processors Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B660 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX: 30.5cm x 23.4cm
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
M.2 Socket	Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode.
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem
Graphics
Graphics	1 x DisplayPort 1 x D-Sub port 1 x HDMI port
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
D-Sub (s)	1 x D-Sub
USB (s)	1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Supported Storage	ntel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	3 Years
