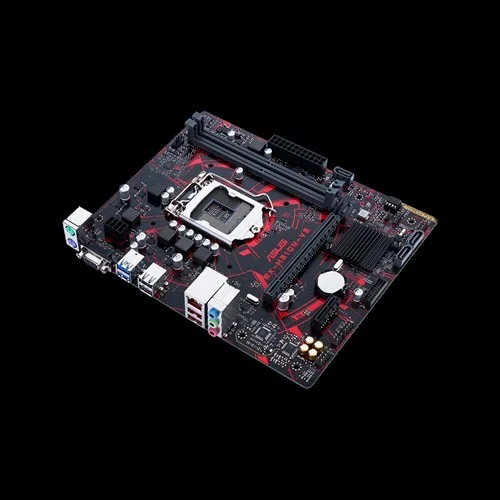

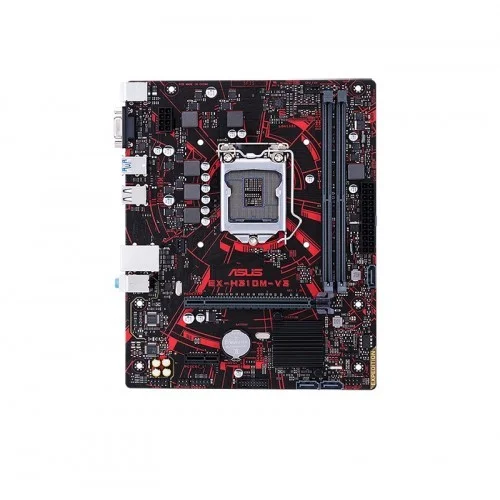

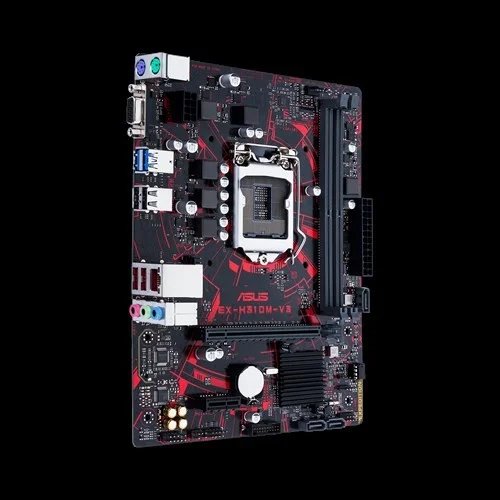

ASUS EX-H310M-V3 MICRO-ATX MOTHERBOARD
Out Of Stock
ASUS EX-H310M-V3 MICRO-ATX MOTHERBOARD
- Stock: Out Of Stock
- Model: ASUS EX-H310M-V3 MICRO-ATX MOTHERBOARD
- Product id: 19205
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- • CPU: 8th Generation Intel Processors • Chipset: Intel H310 • 2 x DDR4 DIMM • 2 x PCI-E slot
Quick Compare
| Product Details | ||||
| Product | ASUS EX-H310M-V3 MICRO-ATX MOTHERBOARD | Esonic H61FHL Motherboard | Starex ST-H61 Motherboard | HUANANZHI H61 M.2 Motherboard |
| Image |  |
 |
 |
 |
| Price | 0৳ | |
|
|
| Model | ASUS EX-H310M-V3 MICRO-ATX MOTHERBOARD | Esonic H61FHL | Starex ST-H61 | HUANANZHI H61 |
| Brand | Esonic | STAREX | HUANANZHI | |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | ASUS EX-H310M-V3 MICRO-ATX MOTHERBOARD Asus EX-H310M-V3 Micro-ATX motherboard compatible with Intel 8th gen (Socket 1151) i3, i5 & i7 processor. This luminous anti-moisture coating board also supports dual channel DDR4 maximum 32GB memory and it has the capability of fast SATA 6Gb/s interface.Focusing on the graphics, it will support Intel HD graphics with 1024MB shared graphics memory and having maximum resolution of 1920 x 1200 @ 60 Hz for D-sub slots. This USBGuard motherboard has 8-pin power connector and ASUS 5X Protection. Specification: Basic Information Supported CPU Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. Chipset Intel® H310 Form Factor uATX Form Factor 8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm ) Expansion Slots PCI 1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 2.0 x1 Memory Type 2 x DIMM Slots DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supported Memory The maximum memory frequency supported varies by processor Maximum Mamory 32GB Graphics Graphics VGA output support : D-Sub port - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Max Shared Memory 1024 MB Connector & Ports USB (s) Intel® H310 Chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board) LAN Port (s) Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) Supported Storage Intel® H310 Chipset : 3 x SATA 6Gb/s port(s), Audio Realtek® ALC887 8-Channel High Definition Audio CODEC * Choose the chassis with HD audio module in front panel to support 8-channel audio output. Internal I/O Ports 1 x AAFP connector 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 3 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x COM Debug header 1 x Clear CMOS jumper(s) D-Sub (s) 1 X D-sub Warranty Information Manufacturing Warranty 03 years .. | Specifications BASIC INFORMATION Brand Esonic H61-FEL MOTHERBOARD BASIC INFO Supported CPU Intel Core ( i3,i5,i7) 2nd & 3rd Gen || Dual Core 2nd and 3rd Gen Chipset H61 Form Factor ATX MOTHERBOARD MEMORY INFO Slots 2 x DDR3 DIMM Slot Supported Memory Supports DDR3 1333 / 1600 Maximum Memory 16 GB CONNECTOR & PORTS (MB) LAN Port (s) LAN 10/100M Ethernet Supported Storage Serial ATA WARRANTY INFORMATION Warranty 1 Year Esonic H61FHL Motherboard When You want to build a desktop computer at cheap prices like 10000 takas or less you need to consider a motherboard that price range from 3800-4000 Taka. Here You Get an Esonic H61-FEL Motherboard with 1 Year Replacement Warranty. .. | Specification General Brand STAREX Model STAREX H61 Specification Chipset Intel H61 Data Rate DDR3 Number of Memory Slots 2 Motherboard Memory Technology DDR3 Supported Starex H61 Support for Intel@ Core™ i7 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® Processors Processors in the LGA1155 package L3 cache varies with CPU Front Side Bus FSB Support FSB 1333/1600 Max Memory Support Dual Channel DDR3 1333/1600 MHz Memory, 2 x DDR3 DIMM Memory Slot, Maximum Support up to 8 GB Memory Onboard Video Intel Extreme Graphics, On Board Graphic Max Onboard Audio HD Audio Onboard Lan 10/100 Controller .. | Specification Mainboard HUANANZHI H61 Platform Intel® H61, LGA1155 Memory 2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz, Supports non-ECC Memory, Dual Channel Memory Architecture Graphic Integrated Graphics Processor 1 x VGA port 1 x DVI-I port 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards Audio Realtek® ALC662 5.1-Channel, High Definition Audio CODEC LAN Realtek® RTL8105, 1 x 10/100 Mbit/s LAN Controller(s) Expansion Slots 1 x PCIe 3.0 x16 1 x PCIe x1 Storage 4 x SATA2.0 (3GB/s) port(s) Internal I/O Ports 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) Back I/O Ports 1 x PS/2 Keyboard and Mouse port 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s) Form Factor Micro ATX Form Factor; 21.5cm x 16.8cm Packing list 1 x I/O Shield, 1 x SATA Cable, 1 x Manual .. |
