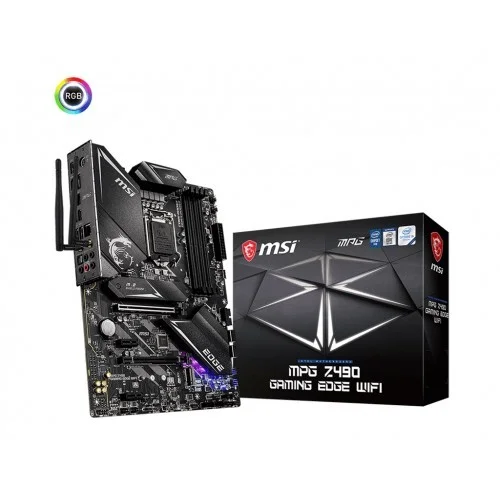

MSI MPG Z490 Gaming EDGE WiFi ATX Motherboard

Out Of Stock

Stock: Out Of Stock
Model: Model-6325
Product id: 18075

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

• Supports 10th Gen Intel Core/ Pentium Celeron processors for LGA 1200 socket • Supports DDR4 Memory, up to 4800(OC) MHz • Aluminum Cover with Extended Heatsink Design • Support Lightning Gen 4

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

MSI MPG Z490 Gaming EDGE WiFi ATX Motherboard

The new MPG series motherboard brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications with the MPG series, transform your equipment into the center of attention and top leaderboards in style. In this motherboad, the Premium Thermal Solution is comes with Aluminum Cover with Extended Heatsink Design and M.2 ShieldIts MSI MPG Z490 Gaming EDGE WiFi ATX Motherboard supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800(OC) MHz. This new motherboard also support Lightning Gen 4 Solution for the future.This new motherboard Enhanced Power Design with 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost Enhanced Power Design. In this motherboad, the Premium Thermal Solution is comes with Aluminum Cover with Extended Heatsink Design and M.2 Shield. Frozr are built for high performance system and non-stop gaming experience

Specification:

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket CPU (MAX SUPPORT): i9 SOCKET: 1200
Chipset	Intel Z490 Chipset
Form Factor	ATX Form Factor
Audio	5+ Optical S/PDIF (Realtek ALC1200 Codec)
Expansion Slots
PCI	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (x4 mode, from PCH) 2x PCIe x1 slots (from PCH)
M.2 Socket	2x M.2 slots (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices M2_2 slot supports 2242/ 2260 /2280 storage devices
Memory
Type	DDR4
Slots	4 x DDR4 memory slots
Supported Memory	Supports 1R 2133/2666/2933 MHz: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Mamory	4x DDR4 memory slots, support up to 128GB
Graphics
Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz Supports AMD 2-Way CrossFire Technology
Connector & Ports
HDMI	1x HDMI port, maximum resolution of 4096x2160 @ 30Hz
Display Port (s)	1x DisplayPort port, maximum resolution of 4096 x 2304 @ 60Hz
USB (s)	USB 3.2 PORTS (FRONT): 1(Gen 1, Type C), 2(Gen 1, Type A) USB 3.2 PORTS (REAR): 1(Gen 2x2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A) USB 2.0 PORTS (FRONT): 4 USB 2.0 PORTS (REAR): 2
LAN Port (s)	1x Realtek RTL8125B 2.5G LAN
Audio	5+ Optical S/PDIF (Realtek ALC1200 Codec)
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x chassis intrusion connector 1x Clear CMOS jumper 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x TBT connector 1x RTD3 connector
Warranty Information
Manufacturing Warranty	03 years warranty
