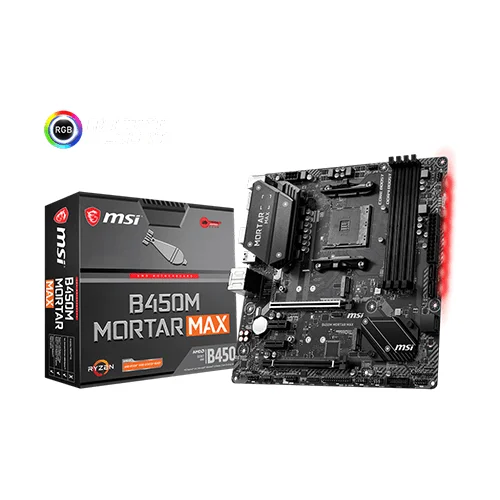

MSI B450M MORTAR MAX MILITARY STYLE AMD GAMING MOTHERBOARD

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard is Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 and Supports DDR4 Memory, up to 4133(OC) MHz. This Military Style Gaming Motherboard comes with Extended Heatsink Design where MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed. This motherboard also has Lightning Fast Game experience with 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology. The MSI B450M MORTAR MAX motherboard also has Core Boost with premium layout and fully digital power design to support more cores and provide better performance. DDR4 Boost with Advanced technology to deliver pure data signals for the best gaming performance and stability. MULTI-GPU with PCI-E STEEL ARMOR slot that supports 2-Way AMD Crossfire. By this Flash BIOS Button, you can simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

Specification:

Basic Information
Supported CPU	Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
Chipset	AMD B450 Chipset
BIOS	Flash BIOS Button
Form Factor	M-ATX Form Factor
Audio	Realtek ALC892 Code: - 7.1-Channel High Definition Audio - Supports S/PDIF output
Expansion Slots
PCI	- 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors - Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 - 2 x PCIe 2.0 x1 slots2
M.2 Socket	AMD B450 Chipset: - 1 x M.2 slots (M2_2, Key M)1 - Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devicesAMD CPU: - 1x M.2 slot (M2_1, Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen (AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
Memory
Type	DDR4
Slots	- 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors - Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) - 2 x PCIe 2.0 x1 slots
Supported Memory	- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode)
Maximum Mamory	- support up to 64GB
Graphics
Graphics	Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors
Max Shared Memory	Maximum shared memory of 2048 MB
Connector & Ports
HDMI	1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
Display Port (s)	1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz
USB (s)	AMD B450 Chipset: - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU AMD Processor: - 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)	1 x Realtek RTL8111H-CG Gigabit LAN controller
Supported Storage	AMD B450 Chipset: - 4 x SATA 6Gb/s ports1 - 1 x M.2 slots (M2_2, Key M)1 - Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: - 1x M.2 slot (M2_1, Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
Audio	- 7.1-Channel High Definition Audio - Supports S/PDIF output
Internal I/O Ports	1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector
DVI-D (s)	Yes
Warranty Information
Manufacturing Warranty	03 Years Warranty
Others
Special Features	RAID: AMD B450 Chipset - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0 and RAID 1 for M.2 NVMe RAID
Bundled Software	- Support for Windows 10 64-bit - Support for Windows 7 64-bit (To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU)
