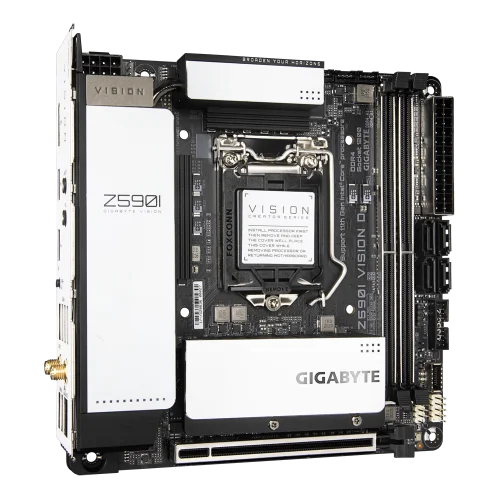

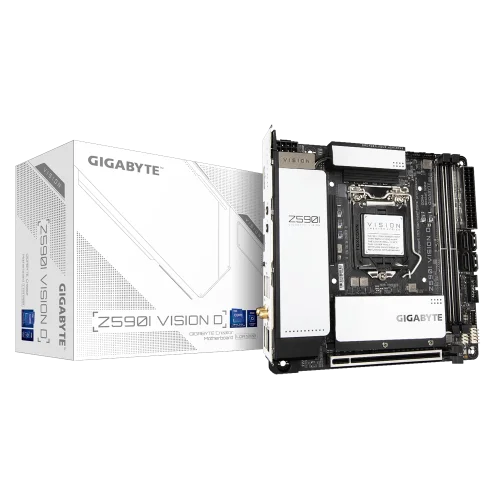

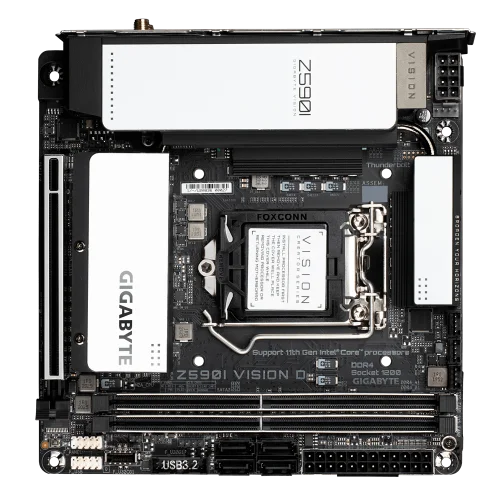

GIGABYTE Z590I VISION D MINI-ITX MOTHERBOARD

GIGABYTE Z590I VISION D MINI-ITX MOTHERBOARD

VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine.

Thunderbolt 4

Thunderbolt 4 delivers 40Gb/s high-bandwidth speeds, data transferring, video signal, power charging, and USB4 specification compliance for more flexibility connecting any of your accessories. One USB Type-C connector-based universal cable can replace those other cables to make connectivity simple and easy.

Full PCIe 4.0 Design

For most prosumers and content creators, high bandwidth storage and high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering and creating high resolution textures. To support most cutting edge devices, this motherboard support variety of PCIe 4.0 devices, including graphics card and M.2 SSD.

Dual PCIe M.2

To feature with dual M.2 connectors for extending storage available. M.2 PCIe SSD gives you 7X faster data transferring experience compared to 2.5" SATA solid-state drives. Enable the creativity to flow from thought to draft faster and get responsive performance without a wait.

Basic Information
Supported CPU	LGA1200 package: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel Z590 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Audio	Realtek ALC4080 codec Support for DTS:X® Ultra High Definition Audio 2-channel
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16
M.2 Socket	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) ( Supported by 11th Generation processors only) Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
Memory
Type	DDR4
Slots	2 x DIMM sockets
Supported Memory	11th Generation Intel Core i9/ i7/ i5 processors: Support for 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules,Extreme Memory Profile (XMP) memory modules
Maximum Memory	64 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor + Intel Thunderbolt 4 Controller: 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880 @60 Hz with 24 bpp (via single display output)
Connector & Ports

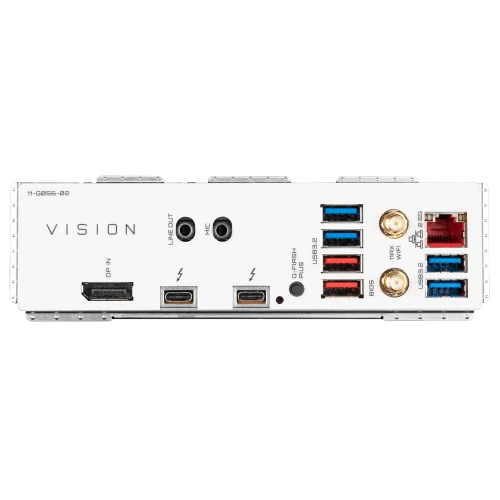

USB (s)	2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output) Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset + Intel Thunderbolt 4 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset+USB 2.0 Hub: 2 x USB 2.0/ 1.1 ports available through the internal USB header
LAN Port (s)	Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module	Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac, ax, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) ( Supported by 11th Generation processors only.) Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector,CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header.speaker header.USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header.USB 2.0/1.1 header, Clear CMOS jumper,chassis intrusion header
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus, Q-Flash,Xpress Install
