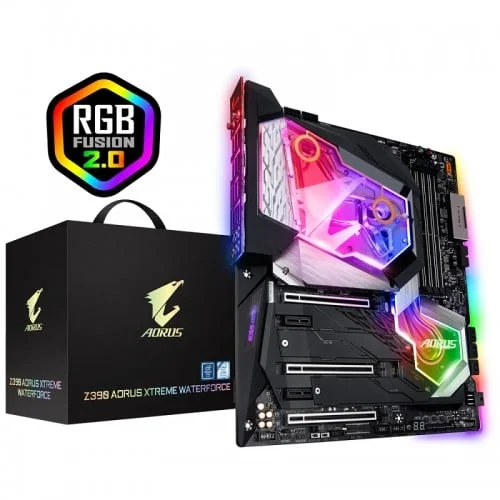

Gigabyte Z390 Aorus Xtreme Waterforce Motherboard

Out Of Stock

Stock: Out Of Stock
Model: Model-4901
Product id: 17433

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Support for 9th and 8th Gen Intel Processor • LGA1151 Socket • 4 x DDR4 DIMM sockets • Up to 128GB memory Supporting

Gigabyte Z390 Aorus Xtreme Waterforce Motherboard

This Motherboard Supports 9th and 8th Gen Intel Core Processors.Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.Intel Optane Memory Ready.16 Phase IR Digital VRM Solution with PowIRstage.Cutting-edge AORUS All-In-One Monoblock for both CPU and PCH area.Onboard Intel CNVI 802.11ac 2x2 Wave 2 Wi-Fi with All new AORUS Antenna.127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA audio capacitors.AQUANTIA® 10GbE BASE-T LAN and Intel® Gigabit LAN with cFosSpeed.Intel® Thunderbolt™ 3 onboard.Exclusive RGB FAN COMMANDER and OC Touch for professional casemodders and overclockers.USB TurboCharger for mobile device fast charge support.RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips.Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP.Front USB 3.1 Gen 2 Type-C Header.Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Triple Thermal Guards

Specification:

Basic Information
Supported CPU	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel® Z390 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ Support for Q-Flash Plus
Form Factor	E-ATX Form Factor; 30.5cm x 27.1cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
M.2 Socket	Yes
Memory
Type	4 x DDR4 DIMM sockets
Slots	Dual channel memory architecture
Supported Memory	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory	128GB
Graphics
Graphics	2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version. Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory	1 GB
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1.2 version
USB (s)	1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers
LAN Port (s)	2 x RJ-45 ports
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio	5 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 1 x water cooling kit CPU LED header (LED_CPU) 1 x water cooling kit Chipset LED header (LED_PCH) 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x addressable LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x GC-OC Touch add-in card connector 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button 1 x OC button 2 x BIOS switches
Warranty Information
Manufacturing Warranty	03 Years
