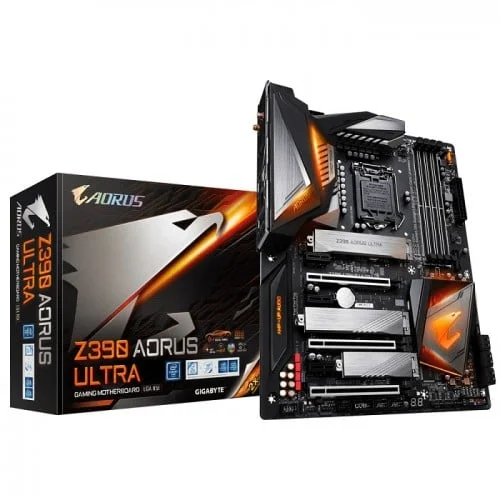

Gigabyte Z390 Aorus Ultra 9th Gen WiFi Motherboard

Gigabyte Z390 Aorus Ultra 9th Gen WiFi Motherboard

We can compare this board with the falcon’s pinpoint target towards its prey. The lighting illuminates of this AORUS ecosystem will glow such a way that will dominate the darkness of night. These boards have 12+1 phases digital CPU power design that includes both digital PWM Controller and DrMOS to ensure precision in delivering power to energy-sensitive components and bring the best performance of new 9th Generation Intel Core processors.

Core Ingredients of the Board

Gigabyte Z390 Aorus Ultra motherboard compatible with Intel 9th & 8th gen (Socket LGA1151) i9, i7, i5, i3, Pentium & CDC processor. This Dual Channel Non-ECC Unbuffered with High Quality Audio Capacitor board has maximum 64GB DDR4 memory and it has the capability of dual ultra-fast M.2 interface. If we consider the graphics of this multi-way support with PCIe Armor and Ultra Durable™ Design board has Intel HD graphics having the maximum resolution of 4096x2160@30 Hz. This board has Intel® CNVi 802.11ac 2x2 Wave 2 Wi-Fi, ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors, Intel® Gigabit LAN with cFosSpeed, RGB FUSION with Multi-Zone LED Light Show Design, supports addressable LED & RGB LED Strips,Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP,Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design, Gigabyte latest 9th gen mainboard with Intel Z390 Express chipset is a great choice for your desktop setup and have the best price in Bangladesh.

Highlighted Features of the Board

Its special features include advanced thermal design with direct touch heat pipe and multiple temperature sensors with hybrid fan Headers for ultimate cooling. This Intel Optane memory ready board has RGB FUSION 2.0 and triple PCIe Gen3 & NVMe M.2 PCIe SSDs in RAID 0 Support. GIGABYTE Ultra-Efficient M.2 Thermal Guard provides a thermal solution for M.2 SSD devices by preventing throttling and bottlenecks.

Specification:

Basic Information
Supported CPU	Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
Chipset	Intel® Z390 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI	-1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. -1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. -1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector. -3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Memory
Type	DDR4 DIMM sockets supporting
Slots	Dual channel memory architecture
Supported Memory	Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory	64 GB
Graphics
Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory	1 GB
Connector & Ports
HDMI	1 x HDMI port
USB (s)	1 x USB Type-C™ port, with USB 3.1 Gen 2 support 3 x USB 3.1 Gen 2 Type-A ports (red) 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio	5 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers
Warranty Information
Manufacturing Warranty	03 Years
