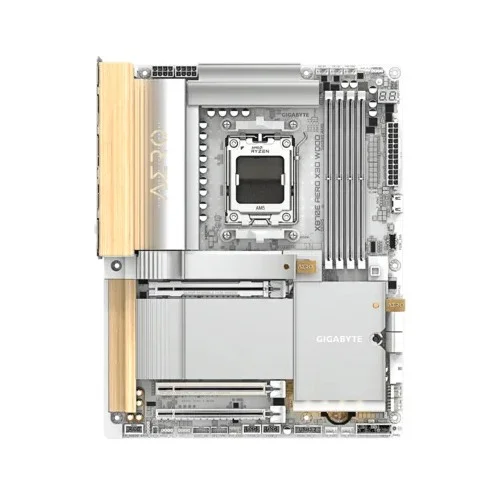

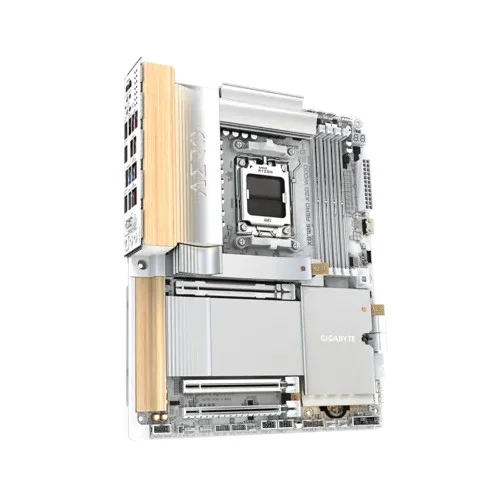

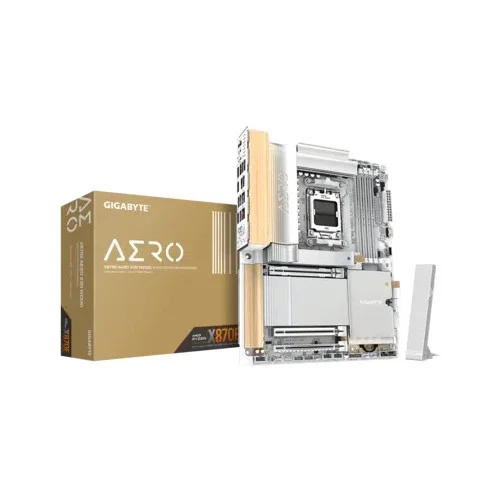

GIGABYTE X870E AERO X3D WOOD Motherboard

Name: GIGABYTE X870E AERO X3D WOOD Motherboard
Brand: GIGABYTE
Availability: OutOfStock

Up Coming

GIGABYTE X870E AERO X3D WOOD Motherboard

Stock: Up Coming
Model: X870E AERO X3D WOOD
Product id: 29448

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Chipset: AMD X870E
I/O Controller: iTE® I/O Controller Chip
Operating System: Support for Windows 11 64-bit
Form Factor: ATX Form Factor; 30.5cm x 24.4cm

Basic Information
Bundled Software	Norton® Internet Security (OEM version)
CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Memory	Support for DDR5 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. Support for DDR5 5200/4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Chipset	AMD X870E
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Other Feature	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Graphics
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.
Connector & Ports
USB (s)	CPU+ASMedia USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 3 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	2 x Realtek® 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7927, RZ738 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. *Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

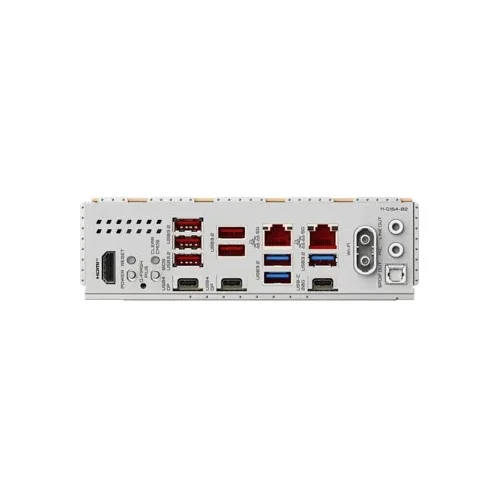

Back Panel Connectors	1 x Q-Flash Plus button 1 x Clear CMOS button 1 x power button 1 x reset button 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPorts (Note)) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers (Note) Actual support may vary by CPU.
Software
Operating System	Support for Windows 11 64-bit
External Features
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode * The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Warranty Information
Warranty	3 years

GIGABYTE X870E AERO X3D WOOD Motherboard

The GIGABYTE X870E AERO X3D WOOD Motherboard is a premium ATX platform engineered for creators, enthusiasts, and power users who demand cutting-edge performance with refined aesthetics. Built on the AMD X870E chipset and designed for the AM5 socket, this motherboard fully supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, delivering exceptional computing power for gaming, content creation, and professional workloads. Equipped with advanced DDR5 memory support up to an incredible 9000 MT/s (O.C.), the X870E AERO X3D WOOD ensures ultra-fast data access and smooth multitasking. With four DDR5 DIMM slots supporting up to 256GB of memory and compatibility with AMD EXPO™ and XMP profiles, users can easily unlock peak memory performance. For next-generation expansion, the motherboard features PCIe 5.0 support for both graphics cards and NVMe SSDs, enabling lightning-fast storage and superior GPU bandwidth. Multiple M.2 slots, including PCIe 5.0 x4 connectors, along with RAID support, provide flexible and high-speed storage configurations for demanding applications. Connectivity is another standout strength. Dual USB4® Type-C ports with DisplayPort output, HDMI 2.1 support, and integrated AMD Radeon™ Graphics compatibility ensure versatile display options. High-speed networking is handled by dual Realtek® 5GbE LAN ports and MediaTek Wi-Fi 7 with Bluetooth 5.4, delivering ultra-low latency and future-ready wireless performance. Audio quality is powered by the Realtek® ALC1220 codec with S/PDIF out, providing immersive, high-definition sound. Enhanced thermal controls, comprehensive fan and pump headers, and robust hardware monitoring ensure system stability even under heavy workloads. With support for Windows 11 64-bit, premium build quality, and the signature AERO design enhanced by natural WOOD styling, the GIGABYTE X870E AERO X3D WOOD Motherboard is a perfect fusion of performance, innovation, and elegance.

Features of GIGABYTE X870E AERO X3D WOOD Motherboard

Advanced Processor Support: Compatible with the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors for high-end gaming and productivity.
Next-Gen DDR5 Memory: Supports up to 9000 MT/s (O.C.) DDR5 with dual-channel architecture and up to 256GB capacity.
PCIe 5.0 Ready: Full PCIe 5.0 support for ultra-fast GPUs and NVMe SSDs, ensuring future-proof performance.
Ultra-Fast Storage Options: Multiple M.2 slots (PCIe 5.0 & 4.0) with RAID 0/1/5/10 support for maximum speed and reliability.
USB4® & Display Excellence: Dual USB4® Type-C ports with DisplayPort, HDMI 2.1, and multi-display support.
High-Speed Networking: Dual 5GbE LAN and Wi-Fi 7 with Bluetooth 5.4 for seamless wired and wireless connectivity.
Immersive Audio: Realtek® ALC1220 high-definition audio with S/PDIF out for premium sound quality.
Creator-Focused Design: ATX form factor with advanced cooling headers, smart hardware monitoring, and a unique WOOD-inspired AERO aesthetic.
