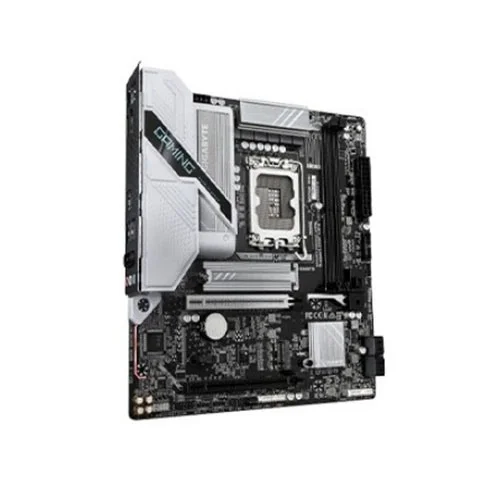

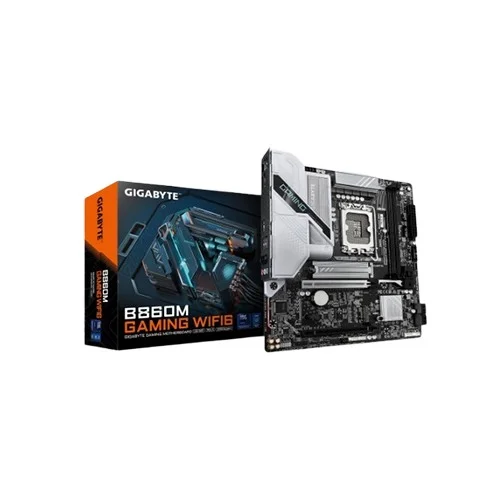

Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard

Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
Save: 1101৳ (4%)
Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard
  • Stock: In Stock
  • Model: B860M GAMING WIFI6
  • Product id:  27604
Based on 1 reviews. - Write a review
24,899৳
26,000৳
Ex Tax: 24,899৳
EMI starts at 8,731৳/month. View all 25 banks EMI plans >
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
  • Intel B860 Express Chipset
  • Support for Windows 11 64-bit
  • Micro ATX Form Factor; 24.4cm x 22.5cm
  • Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Basic Information
Supported CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel ® B860 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Memory
Supported Memory Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Connector & Ports
USB (s) Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB
header)
- 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek® Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Back Panel Connectors 1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks (Note) Actual support may vary by CPU.
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel® NPU driver is only supported on Windows 11
External Features
Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Others
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Warranty 3 Years

Gigabyte B860M GAMING WIFI6 Motherboard

The Gigabyte B860M GAMING WIFI6 Motherboard is a powerful and feature-rich Micro-ATX motherboard designed for gamers and performance enthusiasts. Built on the Intel® B860 Express chipset, it supports the latest Intel® Core™ Ultra processors with an LGA1851 socket, ensuring cutting-edge performance for demanding applications and immersive gaming experiences. This motherboard is equipped with dual DDR5 DIMM slots, supporting memory speeds up to an overclocked 9066 MT/s. With a maximum capacity of 128 GB and support for ECC and non-ECC memory modules, it delivers unmatched speed and stability for multitasking, gaming, and intensive workloads. The dual-channel memory architecture ensures peak efficiency, while the Extreme Memory Profile (XMP) support simplifies overclocking for enthusiasts. The B860M GAMING WIFI6 excels in connectivity, featuring built-in Realtek® Wi-Fi 6 and Bluetooth 5.3 for ultra-fast wireless networking and seamless device pairing. It also boasts a Realtek® 2.5GbE LAN chip, ensuring high-speed, stable wired connections for competitive gaming and content streaming. For graphics and expansion, the motherboard includes a PCIe 5.0 x16 slot for high-performance GPUs and a PCIe 4.0 x4 slot for additional devices. Integrated graphics support allows for impressive resolutions up to 4096x2160 at 60Hz via HDMI or 3840x2160 at 144Hz via DisplayPort. The motherboard’s robust I/O includes USB Type-C® with USB 3.2 Gen 1 support, multiple USB-A ports, RGB Gen2 headers, and M.2 slots for lightning-fast storage. The advanced cooling system accommodates multiple fan and water-cooling pump headers, ensuring thermal efficiency during heavy workloads. Compact yet packed with features, the Gigabyte B860M GAMING WIFI6 Motherboard is a versatile and reliable foundation for any gaming or performance-focused PC build. It delivers superior speed, connectivity, and expandability for modern computing.

Features of Gigabyte B860M GAMING WIFI6 Intel Micro ATX Motherboard

  • Processor Compatibility:

  • LGA1851 socket: Supports Intel Core Ultra Processors.

  • Intel B860 Express Chipset for enhanced performance.

  • Memory Support:

  • 2 x DDR5 DIMM sockets supporting up to 128GB of memory.

  • High-speed support up to DDR5 9066 MT/s (OC).

  • Dual-channel memory architecture.

  • ECC Un-buffered DIMM support (operates in non-ECC mode).

  • Supports XMP memory modules for superior overclocking.

  • Graphics Support:

  • Integrated Intel HD Graphics.

  • HDMI Port: Maximum resolution of 4096x2160@60Hz (Supports HDMI 2.1 and HDCP 2.3).

  • DisplayPort: Maximum resolution of 3840x2160@144Hz (Supports DisplayPort 2.1).

  • Networking & Connectivity:

  • Realtek 2.5GbE LAN Chip: Supports 2.5 Gbps / 1 Gbps / 100 Mbps speeds.

  • Realtek Wi-Fi 6 RTL8851BE: High-speed wireless connectivity with support for Wi-Fi 6 (802.11ax), Bluetooth 5.3, and dual-band (2.4/5 GHz) communication.

  • Audio System:

  • Realtek High Definition Audio Codec.

  • Supports 2/4/5.1/7.1-channel audio with software configuration.

  • S/PDIF Out support for enhanced audio quality.

  • Storage Options:

  • M.2 Slots:

  • 1 x PCIe 5.0 x4/x2 (M2A_CPU) for high-speed storage.

  • 1 x PCIe 4.0 x4/x2 (M2P_SB).

  • SATA Slots:

  • 4 x SATA 6Gb/s connectors supporting RAID 0, 1, 5, and 10.

  • USB Connectivity:

  • Back Panel:

  • 3 x USB 3.2 Gen 1 ports.

  • 3 x USB 2.0/1.1 ports.
  • 2 x Antenna connectors (2T2R) for Wi-Fi 6.

  • 1 x USB Type-C port with USB 3.2 Gen 1 support (via internal header).
    Internal Headers:

  •  1 x USB 3.2 Gen 1 header.

  •  2 x USB 2.0/1.1 headers.

  • Expansion Slots:

  • CPU Slot: 1 x PCIe 5.0 x16 slot (PCIEX16) - Supports graphics cards or NVMe SSDs.

  • Chipset Slot: 1 x PCIe 4.0 x4 slot (PCIEX4).

  • Special Features:

  • GIGABYTE Control Center (GCC): System tuning and customization.

  • Q-Flash & Q-Flash Plus: Easy BIOS updates without CPU or RAM.

  • Smart Backup: Convenient backup management.

  • Comprehensive Monitoring: Voltage, temperature, fan speed, water cooling flow rate, and fan fail warnings.

  • Form Factor & Design:

  • Micro ATX Form Factor: 24.4cm x 22.5cm, compact design suitable for various PC builds.

  • Operating System Support:

  • Compatible with Windows 11 (64-bit) and Windows 10 (64-bit).

  • Intel NPU driver is only supported on Windows 11.

  • Warranty:

  • Backed by a 3-year warranty.
