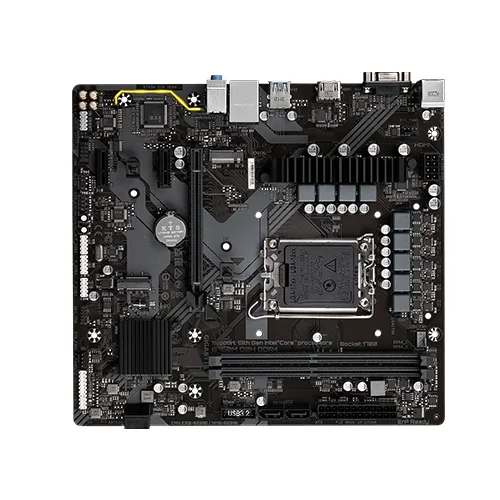

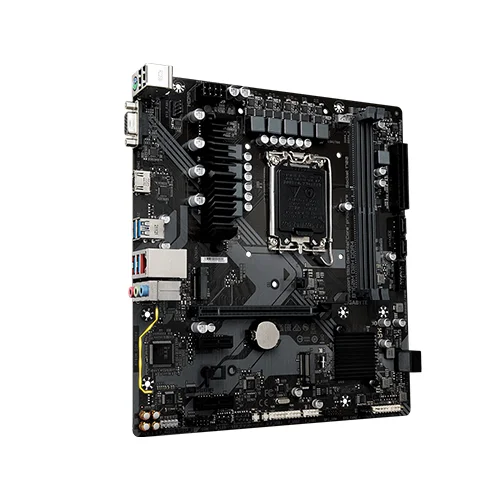

GIGABYTE B760M DS3H DDR4 13TH GEN MICRO-ATX MOTHERBOARD
Save: 1201৳ (7%)
GIGABYTE B760M DS3H DDR4 13TH GEN MICRO-ATX MOTHERBOARD
- Stock: In Stock
- Model: GIGABYTE B760M DS3H
- Product id: 24320
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Quick Compare
| Product Details | |||
| Product | GIGABYTE B760M DS3H DDR4 13TH GEN MICRO-ATX MOTHERBOARD | ASRock B760M Pro-A DDR5 Micro ATX Motherboard | Colorful BATTLE-AX B650M-PLUS WIFI V15 AMD B650 4 DDR5 Motherboard |
| Image |  |
 |
 |
| Price | |
|
|
| Model | GIGABYTE B760M DS3H | B760M Pro-A | BATTLE-AX B650M-PLUS WIFI V15 |
| Brand | GIGABYTE | ASROCK | COLORFUL |
| Availability | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Motherboard Supported CPU LGA1700 Socket: Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors L3 Cache Varies With CPU Chipset Intel B760 Express Chipset Memory Support For DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/S Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules (Please Refer "Memory Support List" For More Information.) Graphics Integrated Graphics Processor-Intel® HD Graphics Support: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version. Slots CPU: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 Chipset: 2 X PCI Express X1 Slots, Supporting PCIe 3.0 And Running At X1 Supported Storage Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280 PCIe 3.0 X4/X2 SSD Support) 4 X SATA 6Gb/S Connectors LAN Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel USB Port Chipset: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2 Support 5 X USB 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) 2 X USB 2.0/1.1 Ports On The Back Panel Chipset+2 USB 2.0 Hubs: 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers Internal I/O Ports 1x 24-Pin ATX Main Power Connector 1x 8-Pin ATX 12V Power Connector 1x CPU Fan Header 2x System Fan Headers 1x Addressable LED Strip Header 1x RGB LED Strip Header 2x M.2 Socket 3 Connectors 4x SATA 6Gb/S Connectors 1x Front Panel Header 1x Front Panel Audio Header 1x S/PDIF Out Header 1x USB 3.2 Gen 1 Header 3x USB 2.0/1.1 Headers 1x Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1x Serial Port Header 1x Q-Flash Plus Button 1x Reset Button 1x Reset Jumper 1x Clear CMOS Jumper External I/O Ports 1x PS/2 Keyboard/Mouse Port 1x D-Sub Port 1x HDMI Port 4x USB 3.2 Gen 1 Ports 2x USB 2.0/1.1 Ports 1x RJ-45 Port 3x Audio Jacks Form Factor Micro ATX Form Factor; 24.4cm X 24.4cm BIOS 1 X 128 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Warranty 03 Years GIGABYTE B760M DS3H DDR4 MICRO-ATX MOTHERBOARD GIGABYTE B760M DS3H is a Micro-ATX motherboard that supports 13th and 12th Generation Intel Core processors and LGA 1700 socket. It offers unparalleled performance with a hybrid 6+2+1 phases digital VRM solution that provides stable power delivery to the CPU. The motherboard supports dual channel DDR4 memory with 4 DIMMs and XMP memory module support for faster speeds and higher data bandwidth. The B760M DS3H features next generation storage options with 2 PCI Express 4.0 x4 M.2 connectors, and it also has a M.2 Thermal Guard to ensure M.2 SSD performance. The motherboard also has an EZ-Latch design for the PCI Express 4.0 x16 slot for quick release and easy installation. In terms of connectivity, the B760M DS3H offers fast networks with 2.5GbE LAN, and extended connectivity options including a rear USB-C 10Gb/s port, DisplayPort, and HDMI. The Smart Fan 6 feature includes multiple temperature sensors and hybrid fan headers with fan stop, providing optimal cooling performance. Finally, the B760M DS3H has a Q-Flash Plus function that allows users to update the BIOS without installing the CPU, memory, and graphics card. Overall, the GIGABYTE B760M DS3H is a powerful and versatile motherboard that provides users with the latest technology and advanced features for building a high-performance gaming or workstation PC. .. | ASRock B760M Pro-A DDR5 Micro ATX MotherboardASRock B760M Pro-A DDR5 Micro ATX Motherboard is designed to cater to the needs of gamers, PC enthusiasts, and professionals looking for a reliable and efficient foundation for their builds. This motherboard supports the latest 14th, 13th, and 12th generation Intel® Core™ processors with the LGA1700 socket, making it a versatile choice for those looking to leverage Intel's Hybrid Technology and advanced performance features like Intel Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT). The ASRock B760M Pro-A is built around the Intel B760 chipset, offering robust support for the latest technologies and high-speed components. It features a Micro ATX form factor, measuring 9.6 inches by 9.6 inches (24.4 cm x 24.4 cm), making it compact enough to fit in smaller cases while still providing a wealth of features. The motherboard supports DDR5 memory, a significant upgrade from DDR4, providing faster data rates and improved power efficiency. It has four memory slots supporting dual-channel DDR5 memory technology, with speeds up to 5333+ MHz (OC) and a maximum capacity of 64GB. This makes it ideal for multitasking and running demanding applications. In terms of expansion slots, the ASRock B760M Pro-A offers a range of options. It has a PCIe 5.0 x16 slot for the latest graphics cards, supporting x16 mode, which ensures maximum bandwidth for high-performance GPUs. Additionally, it includes a PCIe 3.0 x16 slot (operating in x4 mode) and an M.2 socket (Key E) for a WiFi/BT module or Intel CNVio/CNVio2, catering to those who want to add wireless connectivity options. The motherboard supports AMD CrossFire, providing the ability to use multiple AMD graphics cards for enhanced gaming performance. The ASRock B760M Pro-A also offers extensive storage options with three Hyper M.2 sockets, all supporting PCIe Gen4x4 (64 Gb/s) mode for ultra-fast NVMe SSDs. Additionally, it has four SATA3 6.0 Gb/s connectors for traditional HDDs and SSDs, allowing users to build a comprehensive storage solution. RAID support is also available, with RAID 0, 1, 5, and 10 configurations for SATA storage devices, providing flexibility for performance or redundancy as needed. For graphics output, the motherboard supports Intel Xe Graphics Architecture (Gen 12) and provides one HDMI 2.1 port and one DisplayPort 1.4, capable of delivering high-resolution output, with HDMI supporting up to 4K at 60Hz and DisplayPort supporting up to 8K at 60Hz or 5K at 120Hz. This makes it suitable for high-resolution monitors and multi-monitor setups. The audio experience is powered by the Realtek ALC897 Audio Codec, providing 7.1 channel HD audio, which is sufficient for most gaming and multimedia applications. The ASRock B760M Pro-A motherboard emphasizes durability and connectivity. It features a 7+1+1 power phase design with Dr.MOS for stable power delivery to the CPU and GPU, which is crucial for overclocking and maintaining system stability under heavy loads. The inclusion of 2.5 Gigabit LAN (Dragon RTL8125BG) with advanced features such as bandwidth control and optimized settings for different applications (gaming, browsing, streaming) ensures a smooth and lag-free online experience. ASRock also provides a suite of software tools to enhance user experience, including A-Tuning Utility, Dragon 2.5G LAN Software, Polychrome SYNC for RGB lighting control, and various UEFI tools like EZ Mode, Full HD UEFI, and Instant Flash. These tools make system management, performance tuning, and troubleshooting more straightforward and accessible, even for novice users. Overall, the ASRock B760M Pro-A DDR5 Micro ATX Motherboard is a well-rounded motherboard that offers a blend of performance, expandability, and durability. It is an excellent choice for those looking to build a high-performance PC using the latest Intel processors and DDR5 memory while benefiting from advanced connectivity and robust power delivery... | Colorful BATTLE-AX B650M-PLUS WIFI V15 AMD B650 4 DDR5 MotherboardThe Colorful BATTLE-AX B650M-PLUS WiFi V15 is a micro-ATX motherboard designed for AMD's AM5 socket, supporting Ryzen 7000 and 8000 series processors. This motherboard offers a balance between performance and affordability, making it suitable for users looking to build a high-performance system without breaking the bank. One of the standout features of the B650M-PLUS WiFi V15 is its robust power delivery system. Equipped with a 10+2+1 phase VRM design utilizing Dr. MOS 55A power stages and F.C.C ferrite inductors, it ensures stable and efficient power delivery to the CPU, even under heavy loads. This design is particularly beneficial for users looking to overclock their processors or run demanding applications. In terms of connectivity, the motherboard offers dual PCIe 5.0 x4 M.2 slots, providing support for the latest NVMe SSDs. This allows for rapid data access and improved system responsiveness. Additionally, it features Realtek 2.5G Ethernet and Intel AX200 Wi-Fi 6 with Bluetooth 5.2, ensuring fast and stable wired and wireless networking capabilities. The B650M-PLUS WiFi V15 also includes USB 3.2 Gen 2 Type-A and Type-C ports, offering high-speed data transfer rates for peripherals and external storage devices. The motherboard's design incorporates a customized Frostbite Cooling Armor with fully covered condensers, enhancing heat dissipation and maintaining optimal operating temperatures during intensive tasks. For users interested in system aesthetics, the motherboard supports iGame Center lighting effect control software, allowing synchronization of RGB lighting effects across the motherboard, cooling fans, and memory modules. This feature adds a personalized touch to the system's appearance. In summary, the Colorful BATTLE-AX B650M-PLUS WiFi V15 offers a comprehensive set of features that cater to the needs of modern users. Its combination of robust power delivery, high-speed connectivity, effective cooling solutions, and aesthetic customization options make it a compelling choice for those looking to build a high-performance AMD-based system.Features of Colorful BATTLE-AX B650M-PLUS WIFI V15 AMD B650 4 DDR5 MotherboardEnhanced Power Delivery: Equipped with a 10+2+1 phase VRM design using Dr. MOS 55A power stages and FCC ferrite inductors, ensuring stable power delivery for overclocking and high-performance tasks.Dual PCIe 5.0 x4 M.2 Slots: Supports the latest NVMe SSDs, providing rapid data access and improved system responsiveness.High-Speed Networking: Features Realtek 2.5G Ethernet and Intel AX200 Wi-Fi 6 with Bluetooth 5.2, ensuring fast and stable wired and wireless networking capabilities.USB Connectivity: Includes USB 3.2 Gen 2 Type-A and Type-C ports, offering high-speed data transfer rates for peripherals and external storage devices.Customizable Aesthetics: Supports iGame Center lighting effect control software, allowing synchronization of RGB lighting effects across the motherboard, cooling fans, and memory modules.Robust Cooling Solutions: Incorporates a customized Frostbite Cooling Armor with fully covered condensers, enhancing heat dissipation and maintaining optimal operating temperatures during intensive tasks.User-Friendly BIOS Features: The I/O backplane supports a one-click BIOS upgrade function, simplifying the process of updating the motherboard's firmware... |
