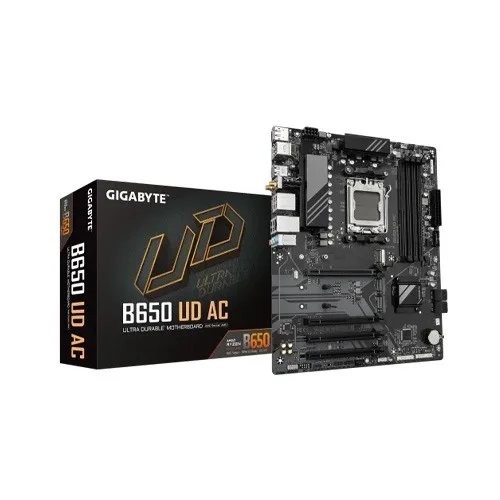

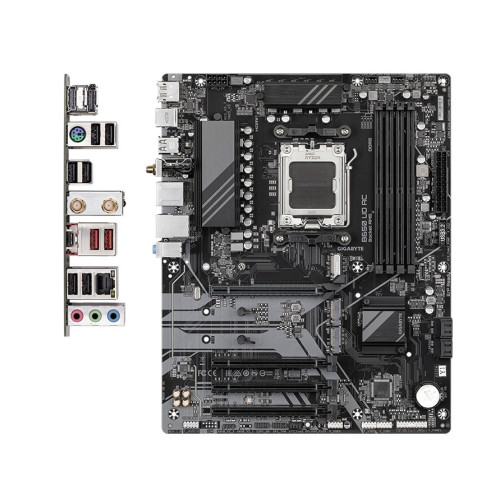

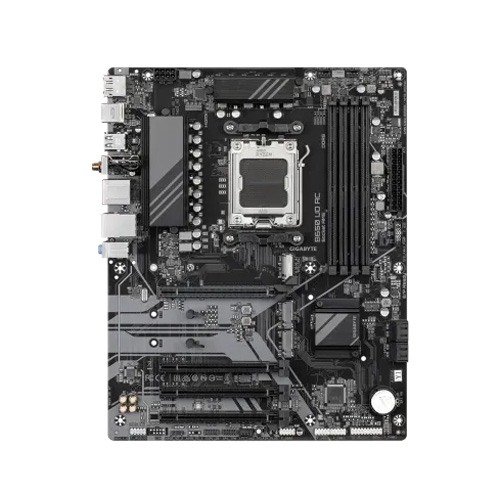

GIGABYTE B650 UD AC AM5 ATX Motherboard

GIGABYTE B650 UD AC AM5 ATX Motherboard

Stock: In Stock
Model: B650 UD AC
Product id: 28345

Based on 0 reviews. - Write a review

23,999৳

Ex Tax: 23,999৳

EMI starts at 8,416৳/month. View all 25 banks EMI plans >

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports AMD Ryzen 7000/8000/9000 CPUs
DDR5 memory up to 192GB 7600MHz (OC)
PCIe 5.0 & Gen4 M.2 SSD slots
Built-in WiFi 5 & HDMI 2.1 support

Basic Information
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset	AMD B650
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics	supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort

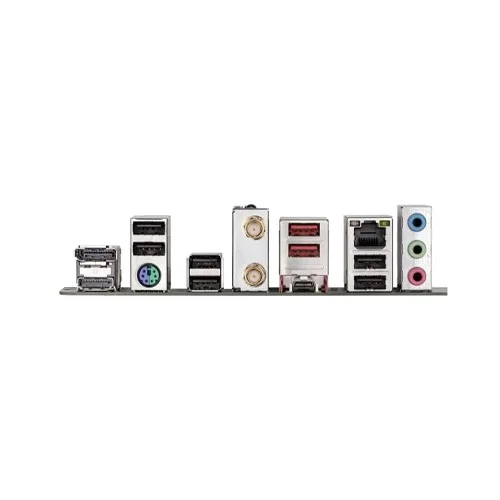

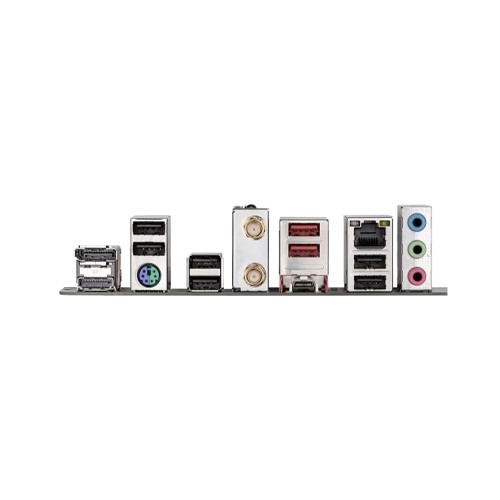

USB (s)	CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek RTL8821CE) - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.0 - Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Audio	3 x audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Warranty	3 Years

GIGABYTE B650 UD AC AM5 ATX Motherboard

The GIGABYTE B650 UD AC AM5 ATX Motherboard is a future-ready platform designed for AMD Ryzen 7000, 8000, and 9000 series processors. Engineered with the B650 chipset, this motherboard ensures next-gen performance and reliability for gamers, creators, and PC enthusiasts. With robust power delivery and extensive connectivity options, it offers a solid foundation for high-end builds.Built for DDR5 memory, it supports up to 192GB RAM with speeds of up to 7600MHz (OC), ensuring unmatched multitasking and overclocking potential. The advanced PCIe 5.0 and 4.0 M.2 slots deliver ultra-fast NVMe SSD performance, while the PCIe x16 slot supports next-gen GPUs with full bandwidth.Graphics outputs include DisplayPort 1.4 and HDMI 2.1, supporting 4K and higher refresh rates, perfect for immersive displays. The integrated Realtek Audio CODEC ensures rich, multi-channel sound. With Realtek Gigabit LAN and built-in Wi-Fi 5 (dual-band), you're ready for high-speed wired or wireless networking.Back panel connectivity is comprehensive, with USB 3.2 Gen 2 Type-A, Type-C, and multiple USB 2.0 ports for peripherals. The internal headers offer flexibility for RGB customization, additional USB ports, and cooling components. Q-Flash and Q-Flash Plus provide easy BIOS updates without a CPU.Whether you're building a gaming rig or a powerful workstation, the GIGABYTE B650 UD AC is packed with features, performance, and expansion potential, making it a reliable and versatile choice for your AM5 setup.

Features

Supports AMD Ryzen 7000/8000/9000 Series with AM5 Socket
Advanced DDR5 Memory Support Up to 192GB 7600MHz (OC)
PCIe 5.0 and 4.0 Ready M.2 SSD Expansion Slots
Integrated DisplayPort 1.4 and HDMI 2.1 for 4K Output
Realtek GbE LAN and Built-in Dual-Band WiFi with Bluetooth 5.0
High-Definition 7.1-Channel Audio with Realtek CODEC
Multiple USB 3.2 Gen2 Type-A and Type-C Ports
ATX Form Factor with Enhanced Cooling and RGB Headers
Supports Q-Flash & Q-Flash Plus for Easy BIOS Updates
Robust Power Design with 3-Year Manufacturing Warranty
