Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard

Gigabyte B650M D3HP AX AM5 AMD M-ATX Motherboard

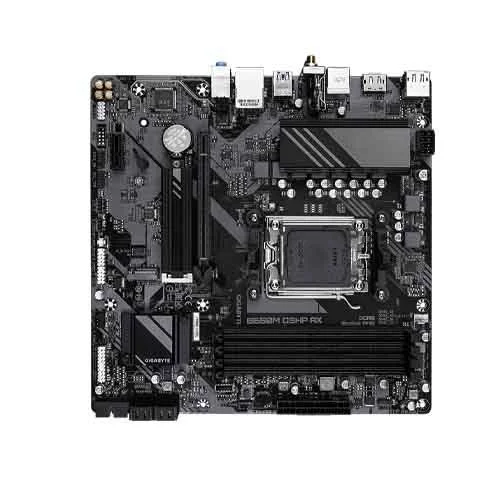

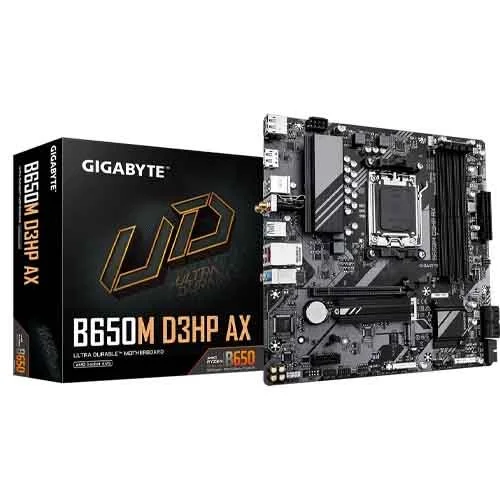

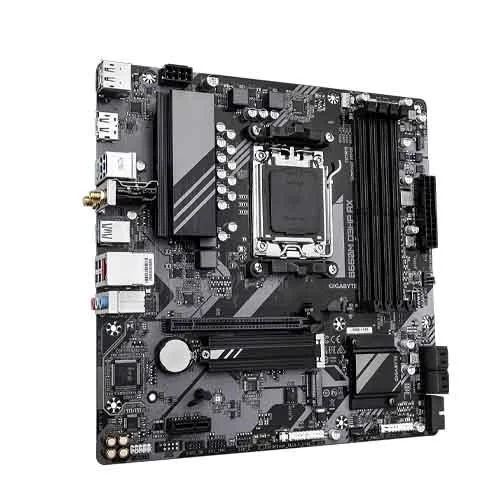

The Gigabyte B650M D3HP AX AM5 AMD M-ATX motherboard combines compact form factor with powerful features, making it an ideal choice for compact gaming rigs and multimedia setups. Built to support the latest AMD Ryzen™ 7000 and Ryzen™ 8000 Series processors, this motherboard boasts a reliable AMD B650 chipset and a robust BIOS system, ensuring seamless compatibility and smooth operation. With its Micro ATX form factor measuring 24.4cm x 24.4cm, the motherboard fits snugly into smaller cases while offering ample room for essential components. Despite its compact size, it doesn't compromise on performance or connectivity. The motherboard supports DDR5 memory modules with speeds up to 7600MHz (OC), providing a significant boost in system responsiveness and multitasking capabilities. With four DDR5 DIMM sockets supporting up to 192GB of system memory, users can enjoy smooth performance in demanding applications. Featuring an integrated graphics processor with AMD Radeon™ Graphics support, the motherboard offers versatile connectivity options with two DisplayPorts and one HDMI port. Users can achieve stunning visuals at resolutions up to 3840x2160@144Hz, supporting up to triple-display setups simultaneously. Connectivity options are plentiful, with USB ports conveniently located both on the back panel and via internal headers. The inclusion of Realtek® 2.5GbE LAN ensures high-speed wired networking, while the Realtek® Wi-Fi 6E module provides reliable wireless connectivity with support for multiple frequency bands and Bluetooth 5.3. Storage options are flexible, with M.2 connectors supporting PCIe 4.0 SSDs for fast data transfer speeds and SATA connectors with RAID support for both NVMe and SATA storage devices. The motherboard features a comprehensive array of internal I/O ports, including fan headers and RGB LED strip headers, allowing users to customize their system's aesthetics and cooling performance. Backed by a 3-year warranty and bundled with essential software utilities such as Norton® Internet Security and LAN Bandwidth Management Software, the Gigabyte B650M D3HP AX AM5 AMD M-ATX motherboard offers reliability, performance, and versatility in a compact package, making it an excellent choice for budget-conscious builders and enthusiasts alike.

Features:

• AMD Ryzen™ Processor Support: Compatible with both AMD Ryzen™ 7000 and Ryzen™ 8000 Series processors, this motherboard ensures exceptional performance for a wide range of computing tasks, from gaming to content creation.
• AMD B650 Chipset: Built around the AMD B650 chipset, the motherboard delivers stable and reliable performance, with support for advanced features like PCIe 4.0 and DDR5 memory.
• Memory Support: With four DDR5 DIMM sockets supporting speeds up to 7600MHz (OC), the motherboard can accommodate up to 192GB of system memory, facilitating smooth multitasking and seamless operation of memory-intensive applications.
• Graphics Capabilities: Featuring an integrated graphics processor with AMD Radeon™ Graphics support, the motherboard offers versatile connectivity options with two DisplayPorts and one HDMI port. Users can enjoy high-resolution visuals at up to 3840x2160@144Hz, with support for triple-display setups.

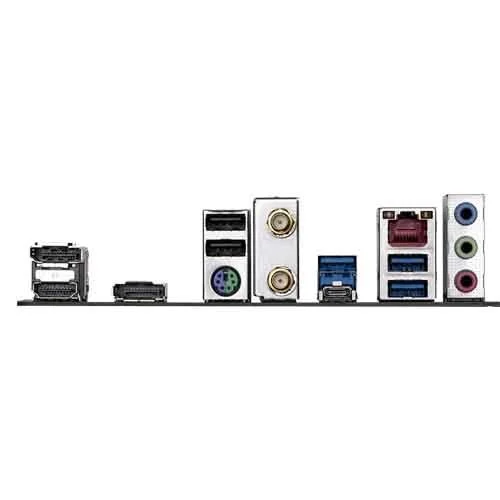

• USB and LAN Connectivity: The motherboard boasts a comprehensive array of USB ports, including USB Type-C® ports, USB 3.2 Gen 1 ports, and USB 2.0/1.1 ports, ensuring seamless connectivity for peripherals and external devices. Additionally, the Realtek® 2.5GbE LAN chip provides high-speed wired networking capabilities.
• Storage Options: With M.2 connectors supporting PCIe 4.0 SSDs and SATA connectors with RAID support for both NVMe and SATA storage devices, users can enjoy fast data transfer speeds and enhanced storage flexibility.
• Wireless Communication: Equipped with the Realtek® Wi-Fi 6E module, the motherboard offers reliable wireless connectivity with support for multiple frequency bands and Bluetooth 5.3, ensuring seamless connectivity for wireless peripherals and networking.
• Audio Experience: The motherboard features a Realtek® Audio CODEC delivering high-definition audio with support for 2/4/5.1/7.1-channel configurations, ensuring immersive sound quality for gaming, movies, and music.
• Internal I/O Ports: With a range of internal I/O ports, including fan headers, RGB LED strip headers, and M.2 socket connectors, users can customize their system's aesthetics and cooling performance to suit their preferences.
• Bundled Software and Warranty: Bundled with Norton® Internet Security (OEM Version) and LAN Bandwidth Management Software, the motherboard offers added value and peace of mind. Additionally, it is backed by a 3-year warranty, ensuring reliability and longevity.
