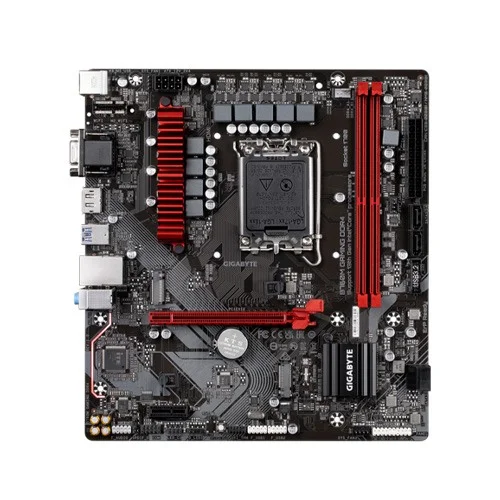

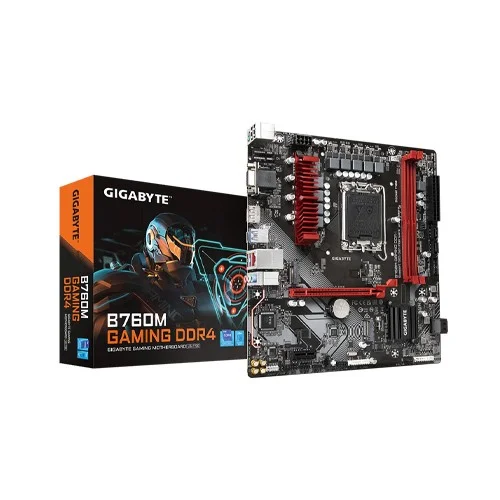

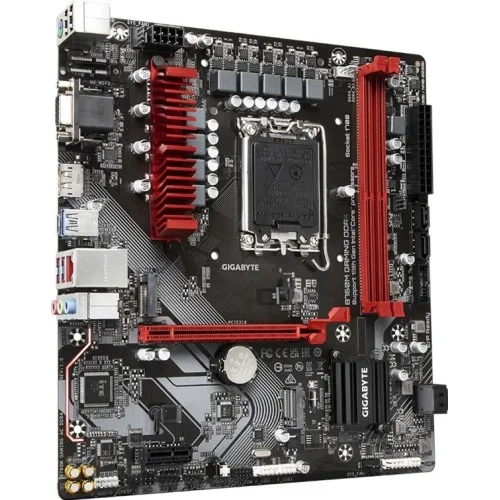

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard

Name: GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
Brand: GIGABYTE
Availability: OutOfStock

Up Coming

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard

Stock: Up Coming
Model: B760M GAMING DDR4
Product id: 28344

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports 14th/13th/12th Gen Intel CPUs
Dual DDR4 up to 5333MHz (OC)
Dual PCIe 4.0 M.2 & 2.5GbE LAN
HDMI 2.1, DP & USB 3.2 Type-C

Basic Information
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Chipset	Intel® B760 Express Chipset
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 22.5cm
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU suppo
Connector & Ports
USB (s)	1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
RAID	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip headers 1 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
Others
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Warranty	3 Years

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard

The GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard is designed to deliver powerful performance for gaming enthusiasts and mainstream users alike. Supporting the latest 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors on the LGA1700 socket, this board is engineered for speed, stability, and flexibility.With dual DDR4 DIMM slots, it supports up to 64GB of high-frequency memory (up to 5333MHz OC), making multitasking and high-load operations seamless. It also provides advanced storage options with dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, ensuring lightning-fast data access and ample storage capabilities.The onboard Intel® HD Graphics support allows output through HDMI 2.1, DisplayPort 1.2, and D-Sub, enabling triple display setups with high resolutions. Realtek® 2.5GbE LAN ensures ultra-fast networking, while the Realtek® Audio CODEC powers immersive 7.1-channel HD audio output for a cinematic gaming experience.With features like Q-Flash Plus, fan speed control, RGB and ARGB headers, and extensive I/O options including USB 3.2 Gen 1 Type-C, this board is both future-proof and user-friendly. Enhanced system monitoring, TPM header for added security, and Windows 11 support round out its utility.For gamers looking for excellent performance without sacrificing budget or features, the GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard is a dependable and cost-effective choice.

Features

Supports 14th/13th/12th Gen Intel CPUs
Dual DDR4 slots up to 64GB 5333MHz
Dual PCIe 4.0 M.2 & 4x SATA ports
Triple display support via HDMI, DP, D-Sub
Realtek 2.5GbE LAN for fast networking
7.1-Channel Realtek HD Audio
USB 3.2 Gen 1 & USB Type-C support
RGB & ARGB headers for lighting control
Q-Flash Plus for BIOS updates without CPU
Micro ATX form factor, compact and powerful
