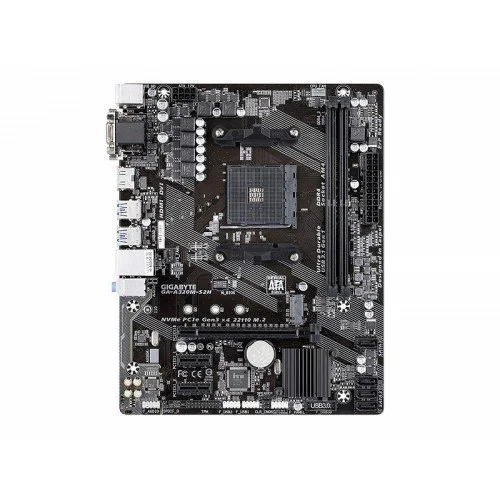

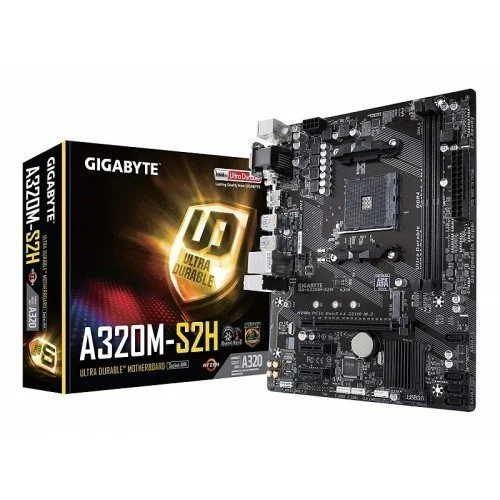

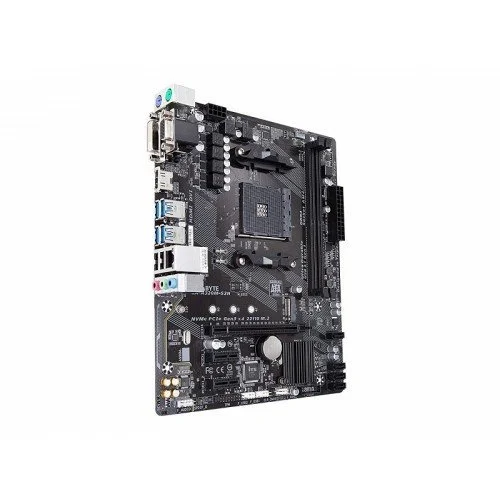

Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard
Save: 1000৳ (11%)
Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard
- Stock: In Stock
- Model: Model-2839
- Product id: 16868
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- • CPU: AMD Ryzen • Chipset: AMD A320 • Memory: 2 x DDR4, Max 32 GB • 3 x PCI Express slots
Quick Compare
| Product Details | ||||
| Product | Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard | ASRock B450M-HDV R4.0 AMD Motherboard | BIOSTAR H510MHP 10th and 11th Gen Micro ATX Motherboard | MAXSUN Challenger B450M AM4 M-ATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | Model-2839 | ASRock B450M-HDV R4.0 | H510MHP | Challenger B450M |
| Brand | GIGABYTE | ASROCK | BIOSTAR | Maxsun |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Basic Information Supported CPU AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor Chipset AMD A320 BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 24.4cm x 19.5cm Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. Memory Type Dual channel memory architecture Slots 2 x DDR4 DIMM Supported Memory Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules * Actual support may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory 32 GB Graphics Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Max Shared Memory 2 GB Connector & Ports HDMI 1 x HDMI port USB (s) Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit) Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) Warranty Information Manufacturing Warranty 03 years Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard Gigabyte GA-A320M-S2H AMD Micro ATX AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support. Considering the graphics, it will support maximum resolution of 4096x2160@24 Hz for HDMI and 1920x1200@60 Hz for D-Sub & DVI-D ports for Multiple Display. This High Quality Audio Capacitors and Audio Noise Guard with Dual Channel Non-ECC Unbuffered DDR4 motherboard has Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers and GIGABYTE™ UEFI BIOS. GET READY FOR AMD RYZEN 3000-SERIES GIGABYTE AM4 motherboards are ready to support the latest AMD Ryzen 3000 Processors and are backwards compatible with AMD Ryzen 2000 and 1000 Processors. With a rich list of features on GIGABYTE AM4 motherboards such as Ultra Durable Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design, GIGABYTE AM4 motherboards are perfect for users looking to build the best AMD platform systems. Realtek GbE LAN with cFosSpeed Internet Accelerator Software Realtek Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments Refreshed BIOS Easy, Smart, and Friendly The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. 4K Ultra HD Support 4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon Graphics via HDMI. HDMI - The Next Generation Multimedia Interface HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content. Gigabyte GA-A320M-S2H FEATURES Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support High Quality Audio Capacitors and Audio Noise Guard Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers GIGABYTE™ UEFI BIOS All New GIGABYTE™™ APP Center, Simple and Easy Use .. | Specification Basic Information Supported CPU - AMD AM4 Socket - Digi Power design - Supports CPU up to 105W Chipset - AMD Promontory B450 BIOS - 128Mb AMI UEFI Legal BIOS with GUI support - SMBIOS 2.3 support Form Factor - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm Expansion Slots PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x1 Slot M.2 Socket - 1 x Screw for M.2 Socket - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)* Memory Type - Dual Channel DDR4 Memory Technology Slots - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots Supported Memory For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. Graphics Max Shared Memory - Max Shared memory supports up to 16GB - The Max shared memory 16GB requires 32GB system memory installed. Connector & Ports HDMI - 1 x HDMI Port D-Sub (s) - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - 1 x D-Sub Port DVI-D (s) - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - 1 x DVI-D Port USB (s) - 6 USB 3.1 Gen1 (2 Front, 4 Rear) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) LAN Port (s) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - Supports NVMe SSD as boot disks - Supports ASRock U.2 Kit Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps Internal I/O Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) TPM (Trusted Platform Module ) 1 x TPM Header Warranty Information Manufacturing Warranty 03 Years warranty ASRock B450M-HDV R4.0 AMD Motherboard ASRock A320M-HDV R4.0 AMD Motherboard built in AMD AM4 Socket with AMD Promontory B450 chipset.This Motherboard supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. The main component of the Motherboard ASRock B450M-HDV R4.0 AMD Motherboard Supports CPU up to 105W with Vega Series Graphics in Ryzen Series APU.It has Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket. For graphical support ,It has DirectX 12, Pixel Shader 5.0, Three graphics output options: D-Sub, DVI-D and HDMI. That Motherboard can supports triple Monitor, HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz, D-Sub with max. resolution up to 2048x1536 @ 60Hz, Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required), HDCP 1.4 with DVI-D and HDMI Ports and 4K Ultra HD (UHD) playback with HDMI Port. In this amazing ASRock Motherboard the ASRock APP Charger, ASRock XFast LAN is used. Moreover, In this exclusive Motherboard used in different types of memory storage ; these are - Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory, AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory, Max. capacity of system memory is 32GB, 15μ Gold Contact in DIMM Slot. In this Motherboard, 128Mb AMI UEFI Legal BIOS with GUI support, Plug and Play", ACPI 5.1 compliance wake up events, jumperfree, SMBIOS 2.3 support, DRAM Voltage multi-adjustment are support. They have include PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H and Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az and PXE in this exclusive graphics card. Special Features of this Motherboard That must be considered Have a look on the special features of this board that might firm your buying decision. The ASRock B450M-HDV R4.0 AMD Motherboard supports PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, The ASRock B450M-HDV R4.0 AMD Motherboard also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock's U.2 Kit for installing some of the world's fastest U.2 PCIe Gen3 x4 SSDs. PCB appearance represents rock-solid quality and gives the motherboard a more mysterious touch. In this Motherboard High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the Motherboard against electrical shorts caused by humidity and also the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. You can easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. For gaming or entertainment these are the features one should consider of purchasing it. .. | SpecificationSupported CPUSocket 1200 for 10th / 11th Gen Intel Core, Pentium and Celeron processorsChipsetIntel H510Form FactorMicro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )AudioRealtek ALC8877.1 Channels, High Definition AudioPCI2 x PCIe 3.0 x1 Slot1 x PCle 3.0/4.0 x16 SlotTypeDDR4Slots2 x DIMMSupported MemorySupports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200Each DIMM supports non-ECC 4/8/16/32GB DDR4 moduleMaximum MemoryUp to 64 GBGraphicsSupports DX12Supports HDCPHDMI1 x HDMI PortVGA (s)1 x VGA PortUSB (s)4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)LAN Port (s)Intel I219V10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capabilitySupported Storage4 x SATA III Connector (6Gb/s)1 x M.2 (M Key) Socket:Supports M.2 Type 2242/ 2260/ 2280 SSD module.Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSDAudio3 x Audio JackInternal I/O Ports4 x SATA III Connectors (6Gb/s)1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)1 x 8-Pin Power Connector1 x 24-Pin Power Connector1 x CPU Fan Connector1 x System Fan Connector1 x Front Panel Header1 x Front Audio Header1 x Clear CMOS Header1 x COM Port HeaderBundled SoftwareBullGuardManufacturing Warranty3 yearsBIOSTAR H510MHP 10th and 11th Gen Micro ATX MotherboardThe BIOSTAR H510MHP is a micro ATX motherboard designed for 10th and 11th gen Intel Core processors. It features an Intel H510 single-chip architecture, allowing for efficient and stable performance. It offers a 5-phase VRM design with high-quality power components such as low RDS (on) Mosfet for lower temperatures and has the advantage to raise the overclocking ability. The BIOSTAR H510MHP motherboard supports 2-DIMM DDR4 memory, with speeds of up to 3200/ 2933/ 2666/ 2400/2133/ 1866 and a maximum capacity of 64 GB. It also supports PCIe 4.0 and PCIe M.2 (32Gb/s) for high-speed data transfer and storage. PCIe M.2 32Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It's 3 times faster compared with PCIe M.2 10Gb/s. It comes with USB 3.2 Gen1 for quick data transfer and device connectivity. The Onboard HDMI connector allows full video & audio support. It has industry-leading high-definition video quality. The BIOSTAR H510MHP motherboard provides high-quality sound with minimal loss of audio fidelity... | MAXSUN Challenger B450M AM4 M-ATX Motherboard Available in creatus computer ,The MAXSUN Challenger B450M AM4 M-ATX Motherboard is a versatile and compact option designed for budget-conscious gamers and PC builders looking to harness the power of AMD Ryzen processors. This motherboard strikes a perfect balance between performance, features, and affordability, making it an excellent choice for both novice and experienced builders. At the core of the MAXSUN Challenger B450M is its AM4 socket, which supports a wide range of AMD Ryzen CPUs, including the first, second, and third generations, as well as the Ryzen APUs. This flexibility allows users to choose from a variety of processors, tailoring their system's performance to their specific needs, whether it be for gaming, content creation, or everyday tasks. One of the standout features of the Challenger B450M is its support for dual-channel DDR4 memory, with four DIMM slots that accommodate up to 64GB of RAM. With support for speeds up to 3200 MHz (OC), this motherboard ensures that your system runs smoothly and efficiently, even under heavy multitasking or demanding gaming scenarios. The ability to overclock memory provides an extra layer of performance tuning for users who want to push their systems further. The motherboard's M-ATX form factor makes it an excellent choice for compact builds, while still providing ample connectivity options. It features one PCIe 3.0 x16 slot for a dedicated graphics card, as well as two PCIe 2.0 x1 slots for additional expansion cards. This layout allows gamers to install high-performance GPUs and other peripherals without sacrificing space or functionality. Storage options are plentiful with the MAXSUN Challenger B450M, which includes four SATA III ports for traditional hard drives and SSDs, as well as one M.2 slot that supports NVMe and SATA SSDs. This ensures that users can take advantage of high-speed storage solutions, significantly reducing load times and enhancing overall system responsiveness. In terms of connectivity, the Challenger B450M is equipped with USB 3.1 Gen 1 and USB 2.0 ports, providing fast data transfer speeds and compatibility with a wide array of devices. The rear I/O panel also includes HDMI and DVI-D outputs, allowing users to connect multiple displays, which is particularly useful for productivity and gaming setups. Another noteworthy aspect of the MAXSUN Challenger B450M is its emphasis on cooling and system stability. The motherboard includes multiple fan headers and features such as temperature monitoring, which helps users maintain optimal thermal performance. This is crucial for gamers and over clockers looking to ensure that their systems run cool and stable during intense usage. Overall, the MAXSUN Challenger B450M AM4 M-ATX Motherboard is an impressive choice for anyone looking to build a powerful yet budget-friendly PC. Its robust features, solid build quality, and support for the latest AMD technologies make it a compelling option for a wide range of applications. Whether you are building a gaming rig, a content creation workstation, or a general-purpose PC, this motherboard provides the flexibility and performance you need to succeed. With its excellent value proposition, the MAXSUN Challenger B450M is poised to be a favorite among PC enthusiasts and gamers alike... |
