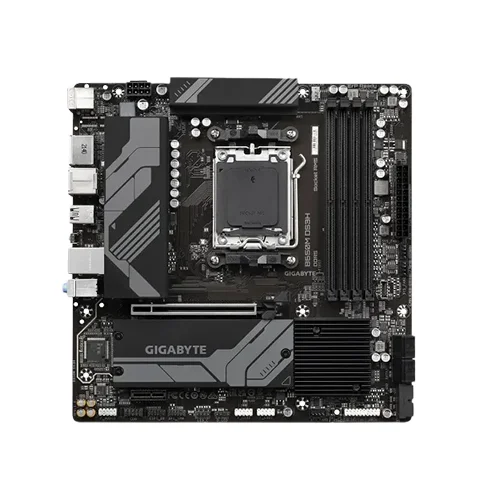

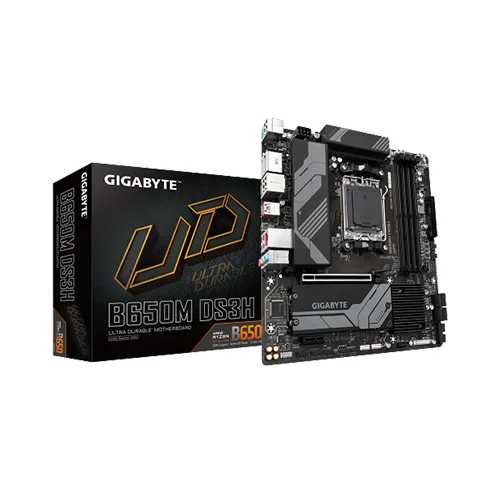

GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard
Save: 3700৳ (15%)
GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard
- Stock: In Stock
- Model: B650M DS3H
- Product id: 24550
21,300৳
25,000৳
Ex Tax: 21,300৳
- Supported CPU: Ryzen 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 128GB, 6400(OC)
- Graphics Output: 2x Display Port, 1 x HDMI
- : 2.5GbE LAN
Chat Through
Quick Compare
| Product Details | ||||
| Product | GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard | MSI MAG B760M MORTAR II DDR5 mATX Motherboard | GIGABYTE B650 UD AX AM5 ATX Motherboard | GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | B650M DS3H | MAG B760M MORTAR II | B650 UD AX | B650M GAMING PLUS WIFI |
| Brand | GIGABYTE | MSI | GIGABYTE | GIGABYTE |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Technical Information Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors Chipset AMD B650 BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Type DDR5 Slots 4 DIMMs Supported Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules Maximum Memory 128GB Graphics ntegrated Graphics Processor: 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. Support for up to 3 displays at the same time HDMI 1x HDMI Display Port (s) 2 x DisplayPorts USB (s) CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Supported Storage CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices Audio 3 x Audio jacks Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) Others Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software Manufacturing Warranty 3 Years GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard The GIGABYTE B650M DS3H Motherboard supports AMD Ryzen 7000-series processors for socket AM5. It equips the best VRM design ever built with the highest quality components and comes with direct 6+2+1 Phases Digital VRM Solution. It offers advanced thermal heatsinks to improve thermal efficiency with better airflow and heat exchange. It comes with 2x PCIe 4.0 x4 M.2 Connectors. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. This motherboard features 2X copper PCBs design effectively lowering the component temperature through its high thermal conductivity and low impedance. The Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The GIGABYTE B650M DS3H comes with 2.5G LAN which provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking. It also supports Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet. The USB 3.2 Gen 2 ports provide speeds up to 10Gbps. With twice the bandwidth compared to its previous generation, The GIGABYTE B650M DS3H Motherboard comes with 3 years of warranty. .. | MSI MAG B760M MORTAR II DDR5 mATX MotherboardThe MSI MAG B760M MORTAR II DDR5 mATX Motherboard is a high-performance motherboard designed to support Intel's 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors, featuring the LGA1700 socket. This motherboard is equipped with the Intel B760 chipset, which ensures reliable and efficient performance for a wide range of computing tasks. One of the standout features of this motherboard is its support for DDR5 memory, with four slots that can accommodate memory speeds of up to 7800MHz and a maximum capacity of 192GB. It also supports Intel® Extreme Memory Profile, providing flexibility for memory overclocking. In terms of graphics, the MSI MAG B760M MORTAR II offers a comprehensive solution with an HDMI 2.1 port capable of delivering 4K resolution at 60Hz and a DisplayPort 1.4 for another 4K 60Hz display option. This motherboard is well-suited for gaming and multimedia applications. Connectivity options are plentiful, with a variety of USB ports, including USB 2.0 and USB 3.2 Gen1 Type A on both the rear and front panels. It also boasts USB 3.2 Gen2 Type A and Type C ports for high-speed data transfer. The Realtek 2.5Gbps LAN port ensures fast and stable internet connectivity, making it an excellent choice for online gaming and streaming. Storage capabilities are versatile, thanks to three M.2 slots that support PCIe 4.0 x4 for high-speed SSDs. Additionally, there are four SATA 6G ports, and the motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. The motherboard offers numerous internal I/O ports, including multiple fan connectors, RGB LED connectors, and USB headers, providing flexibility for customizing your PC build. It also includes TPM (Trusted Platform Module) support for enhanced security. With a compact micro-ATX form factor measuring 243.84mmx243.84mm, the MSI MAG B760M MORTAR II is suitable for smaller PC cases while still delivering a rich feature set. It's compatible with Windows 11 64-bit and Windows 10 64-bit, making it future-proof for modern operating systems.MSI MAG B760M MORTAR II Motherboard FeaturesProcessor Compatibility: This motherboard supports a wide range of Intel processors, including Intel Core 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors. The LGA1700 socket ensures compatibility with the latest generation CPUs.DDR5 Memory Support: The motherboard supports DDR5 memory, offering four memory slots with the ability to reach impressive speeds of up to 7800MHz (when overclocked). It supports a maximum memory capacity of 192GB, making it ideal for multitasking and memory-intensive applications.High-Quality Audio: With the Realtek ALC897 Codec, the motherboard provides 7.1-channel high-definition audio for an immersive audio experience. It also supports S/PDIF output for high-quality digital audio connectivity.Graphics Capabilities: The motherboard features HDMI 2.1 and DisplayPort 1.4 connectors, supporting 4K resolution at 60Hz with HDR, delivering stunning visuals for gaming and multimedia.Expansion Slots: It comes with a PCI-E X16 slot that supports X16/X4, offering flexibility for adding a graphics card or other expansion cards.Connectivity: The motherboard offers a variety of USB ports, including USB 2.0 and USB 3.2 Gen1 on both the rear and front panels. It also features USB 3.2 Gen2 Type A and Type C ports for high-speed data transfer. The Realtek 2.5Gbps LAN port ensures fast and reliable internet connectivity.Storage Options: With three M.2 slots, this motherboard provides fast and flexible storage options, supporting PCIe 4.0 X4 and accommodating 2280/2260/2242 devices. Additionally, it offers four SATA 6G ports and supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.Compact Form Factor: The micro-ATX form factor of 243.84mmx243.84mm makes it suitable for smaller PC cases while still delivering a rich feature set.Support for Windows 11: This motherboard is compatible with Windows 11 64-bit, ensuring readiness for the latest operating system.Special Features: The MSI MAG B760M MORTAR II comes with special features like EZ Debug LED, which aids in troubleshooting during the system setup.Trusted Platform Module (TPM) Support: For enhanced security, the motherboard features TPM 2.0 support, which is crucial for safeguarding sensitive data.Overall, the MSI MAG B760M MORTAR II DDR5 mATX Motherboard is a well-rounded and feature-packed motherboard that caters to both gamers and power users, with its robust performance, extensive connectivity options, and support for the latest DDR5 memory technology. Its 3-year warranty ensures peace of mind, making it a compelling choice for your next PC build... | GIGABYTE B650 UD AX AM5 ATX Motherboard The GIGABYTE B650 UD AX AM5 ATX Motherboard is a future-ready platform designed for AMD Ryzen 7000, 8000, and 9000 series processors. Engineered with the B650 chipset, this motherboard ensures next-gen performance and reliability for gamers, creators, and PC enthusiasts. With robust power delivery and extensive connectivity options, it offers a solid foundation for high-end builds.Built for DDR5 memory, it supports up to 192GB RAM with speeds of up to 7600MHz (OC), ensuring unmatched multitasking and overclocking potential. The advanced PCIe 5.0 and 4.0 M.2 slots deliver ultra-fast NVMe SSD performance, while the PCIe x16 slot supports next-gen GPUs with full bandwidth.Graphics outputs include DisplayPort 1.4 and HDMI 2.1, supporting 4K and higher refresh rates, perfect for immersive displays. The integrated Realtek Audio CODEC ensures rich, multi-channel sound. With Realtek Gigabit LAN and built-in Wi-Fi 5 (dual-band), you're ready for high-speed wired or wireless networking.Back panel connectivity is comprehensive, with USB 3.2 Gen 2 Type-A, Type-C, and multiple USB 2.0 ports for peripherals. The internal headers offer flexibility for RGB customization, additional USB ports, and cooling components. Q-Flash and Q-Flash Plus provide easy BIOS updates without a CPU.Whether you're building a gaming rig or a powerful workstation, the GIGABYTE B650 UD AX is packed with features, performance, and expansion potential, making it a reliable and versatile choice for your AM5 setup. Features Supports AMD Ryzen 7000/8000/9000 Series with AM5 Socket Advanced DDR5 Memory Support Up to 192GB 7600MHz (OC) PCIe 5.0 and 4.0 Ready M.2 SSD Expansion Slots Integrated DisplayPort 1.4 and HDMI 2.1 for 4K Output Realtek GbE LAN and Built-in Dual-Band WiFi with Bluetooth 5.0 High-Definition 7.1-Channel Audio with Realtek CODEC Multiple USB 3.2 Gen2 Type-A and Type-C Ports ATX Form Factor with Enhanced Cooling and RGB Headers Supports Q-Flash & Q-Flash Plus for Easy BIOS Updates Robust Power Design with 3-Year Manufacturing Warranty .. | GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 MotherboardGIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard is a powerhouse designed for gaming enthusiasts and professionals seeking cutting-edge performance and advanced features. Built on the AMD B650 chipset and supporting AMD Ryzen 7000 and 8000 series processors, this motherboard ensures excellent compatibility and performance for high-end computing needs. Its Micro ATX form factor combines space efficiency with robust capabilities, making it an ideal choice for compact yet powerful builds.This motherboard supports DDR5 memory with speeds up to 7600 MHz (OC) and a maximum capacity of 256GB, offering enhanced multitasking and faster application load times. Equipped with dual M.2 slots and four SATA 6Gb/s connectors, it supports PCIe 4.0 NVMe SSDs, enabling ultra-fast data transfer speeds and efficient storage options. For gamers and creators, the integrated AMD Radeon Graphics allows triple-display output via two DisplayPorts and one HDMI port, delivering stunning visuals at resolutions up to 4K.Connectivity is a strong suit with Realtek Wi-Fi 6E and Bluetooth 5.3, ensuring seamless wireless connections, while the Realtek 2.5GbE LAN provides reliable wired networking for uninterrupted gaming or streaming. The motherboard features multiple USB ports, including USB Type-C and USB 3.2 Gen 1, catering to modern peripherals and devices.The GIGABYTE B650M also stands out with advanced audio capabilities powered by Realtek High Definition Audio, delivering immersive sound for gaming or multimedia. Customization is made easy with support for addressable RGB LED and RGB strip headers, allowing you to personalize your system's aesthetics.Packed with user-friendly features like GIGABYTE Control Center, Q-Flash, and Q-Flash Plus for BIOS updates, this motherboard ensures smooth setup and operation. Backed by a 3-year warranty, the GIGABYTE B650M GAMING PLUS WIFI is a reliable and high-performance solution for any modern gaming or productivity rig.FeaturesAMD Ryzen 7000/8000 Series Support: Built for high-performance AMD processors.DDR5 Memory Support: Ultra-fast speeds up to 7600 MHz (OC) and up to 256GB capacity.Enhanced Storage: Dual PCIe 4.0 M.2 slots and 4 SATA 6Gb/s connectors for versatile storage options.Integrated Graphics: Triple-display support via 2 DisplayPorts and 1 HDMI port with 4K resolution capability.Wi-Fi 6E & Bluetooth 5.3: Ensures fast, stable, and seamless wireless connectivity.2.5GbE LAN: Reliable and fast wired network connection for gaming and streaming.Advanced Audio: High-definition 7.1-channel sound for immersive gaming or multimedia.Customizable RGB Lighting: Supports addressable RGB and RGB strip headers for aesthetic personalization.Compact Form Factor: Micro ATX design suitable for efficient and compact builds... |
