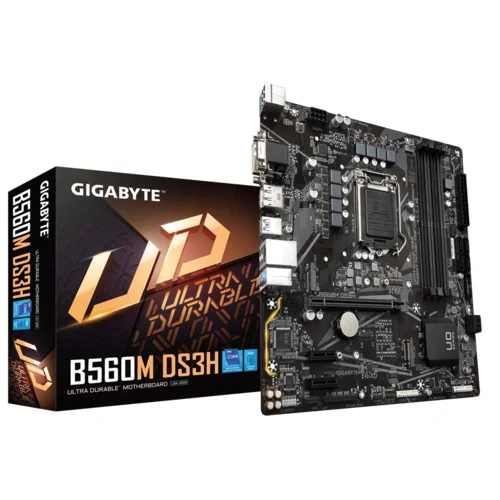

Gigabyte B560M DS3H Intel LGA 1200 ATX MOTHERBOARD

Out Of Stock

Stock: Out Of Stock
Model: Gigabyte B560M DS3H
Product id: 24552

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

- Supported CPU - 11th Gen Intel Core i9, i7, i5 processors
- Memory Slot - 4
- Sockets Supported - LGA1200
- High Quality Audio Capacitors

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Specification

Technical Information
Supported CPU	LGA1200 Package: 11th Generation Intel® Core™ I9 Processors / Intel® Core™ I7 Processors / Intel® Core™ I5 Processors 10th Generation Intel® Core™ I9 Processors / Intel® Core™ I7 Processors / Intel® Core™ I5 Processors / Intel® Core™ I3 Processors/ Intel® Pentium® Processors / Intel® Celeron® Processors* * Limited To Processors With 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 Family. L3 Cache Varies With CPU
Chipset	Intel B560 Express Chipset
Memory	11th Generation Intel® Core™ I9/I7/I5 Processors: Support For DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel® Core™ I9/I7 Processors: Support For DDR4 2933/2666/2400/2133 MHz Memory Modules 10th Generation Intel® Core™ I5/I3/Pentium®/Celeron® Processors: Support For DDR4 2666/2400/2133 MHz Memory Modules 4 X DDR4 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules
Graphics	Integrated Graphics Processor-Intel® HD Graphics Support: 1 X D-Sub Port, Supporting A Maximum Resolution Of 1920x1200@60 Hz 1 X DVI-D Port, Supporting A Maximum Resolution Of 1920x1200@60 Hz * The DVI-D Port Does Not Support D-Sub Connection By Adapter. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 * When The D-Sub Port And DisplayPort Are Connected At The Same Time, Images Will Output From The DisplayPort Only. 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@30 Hz * Support For HDMI 1.4 Version And HDCP 2.3. (Graphics Specifications May Vary Depending On CPU Support.)
Slots	1 X PCI Express X16 Slot, Running At X16 (The PCIEX16 Slot Conforms To PCI Express 4.0 Standard.) (Note) 2 X PCI Express X1 Slots (The PCIEX1 Slot Conforms To PCI Express 3.0 Standard.)
Supported Storage	CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 X4/X2 SSD Support) (M2P_CPU) (Note) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280 SATA And PCIe 3.0 X4/ X2 SSD Support) (M2A_SB) 6 X SATA 6Gb/S Connectors * Refer To "1-7 Internal Connectors," For The Installation Notices For The M.2 And SATA Connectors.
LAN	Realtek® GbE LAN Chip (1000/100 Mbit)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel
USB Port	Chipset: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 1 Support 5 X USB 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers Chipset+USB 2.0 Hub: 2 X USB 2.0/1.1 Ports On The Back Panel
Internal I/O Ports	1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 3 X System Fan Headers 1 X Addressable LED Strip Header 1 X RGB LED Strip Header 6 X SATA 6Gb/S Connectors 2 X M.2 Socket 3 Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Serial Port Header 1 X Parallel Port Header 1 X Clear CMOS Jumper 1 X Q-Flash Plus Button
External I/O Ports	2 X USB 2.0/1.1 Ports 1 X PS/2 Keyboard/Mouse Port 1 X D-Sub Port 1 X DVI-D Port 1 X DisplayPort 1 X HDMI Port 3 X USB 3.2 Gen 1 Ports 1 X USB Type-C® Port, With USB 3.2 Gen 1 Support 1 X RJ-45 Port 3 X Audio Jacks
Form Factor	Micro ATX Form Factor; 24.4cm X 24.4cm
BIOS	1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty	03 Years

Gigabyte B560M DS3H Motherboard

Supports 11th And 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 6+2 Phases Digital VRM Solution With Low RDS(On) MOSFETs
Dual Ultra-Fast NVMe PCIe 4.0/3.0* X4 M.2
GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
USB 3.2 Gen1 Type-C® For Fast And Versatile Connections
High Quality Audio Capacitors And Audio Noise Guard With LED Trace Path Lighting
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers With FAN STOP
Q-Flash Plus Update BIOS Without Installing The CPU, Memory And Graphics Card
